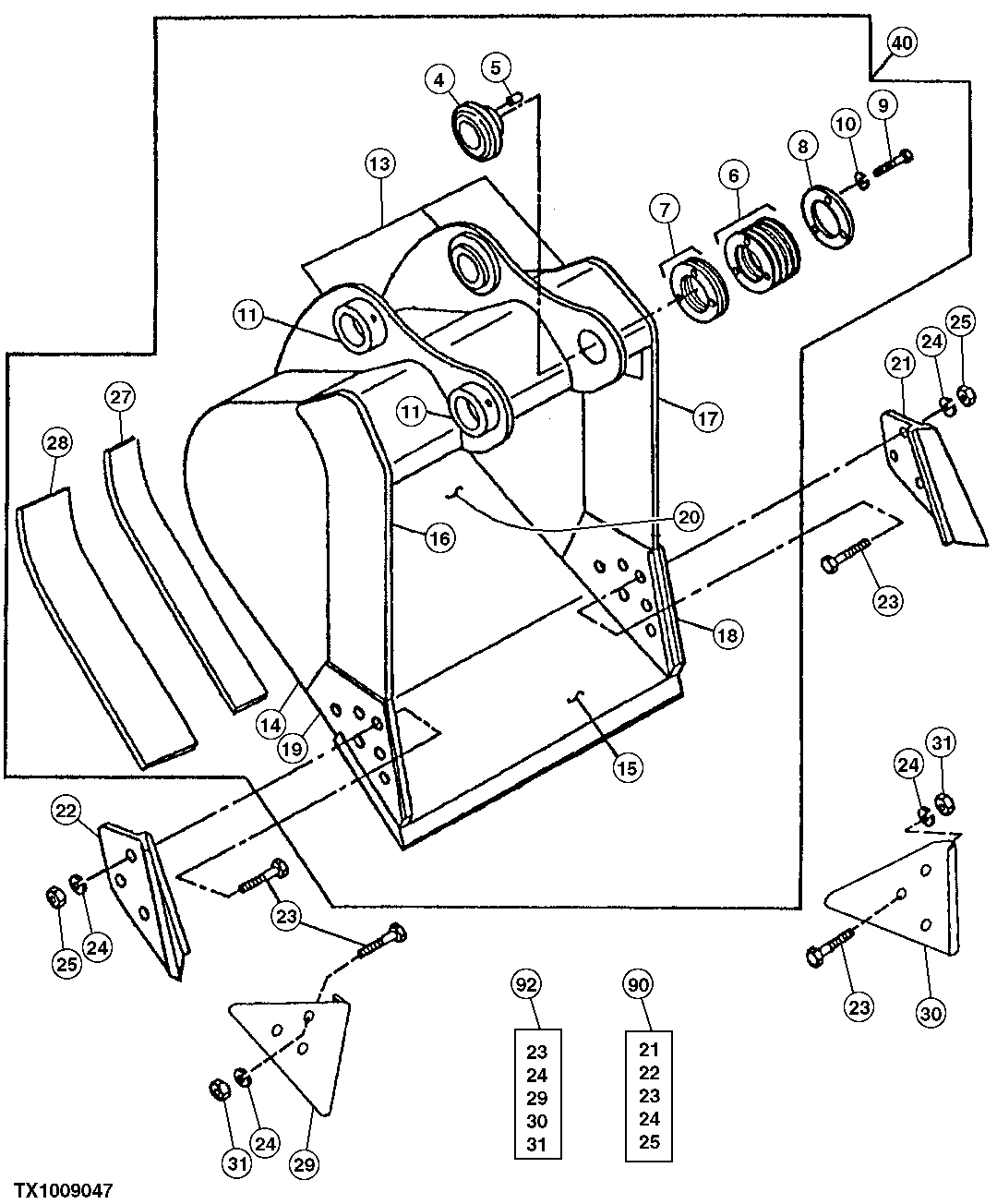

Запчасти John Deere 00CLC 251 - General Purpose Bucket 3302 BUCKET WITH TEETH

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

Locking Collar

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300536

Plate

(A) (RH/LH)

2шт.

15

Cutting Edge

(CTL) (ORDER AT131082)

ARшт.

16

300534

Vertical Cutter

(A) Upper Right

1шт.

17

300535

Vertical Cutter

(A) Upper Left

1шт.

18

300482

Vertical Cutter

(A) Insert (LH)

1шт.

19

300481

Vertical Cutter

(A) Insert (RH)

1шт.

20

600318

Moldboard

(A) 30 in

1шт.

600319

Moldboard

(A) 36 in

1шт.

600320

Moldboard

(A) 42 in

1шт.

600321

Moldboard

(A) 48 in

1шт.

21

Cutting Edge

NSEP, LH, SUB AT131080

1шт.

22

Cutting Edge

NSEP, RH, SUB AT131080

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) Inner Wear

1шт.

28

306974

Bar

(A) Outer Wear

1шт.

29

Shroud

Wear (SUB AT167874)

1шт.

30

Shroud

Wear (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

1шт.

40

Excavator Bucket

(B) ( AT163600 NLA) (24 INCH/ 0.59 CUBIC YARD) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT163602 NLA) (30 INCH/ 0.77 CUBIC YARD) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT163603 NLA) (36 INCH/ 0.95 CUBIC YARD) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT163604 NLA) (42 INCH/ 1.12 CUBIC YARD) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT163605 NLA) (48 INCH/ 1.30 CUBIC YARD) (WHOLE GOODS)

1шт.

90

Kit

Side Cutter Kit AT131080 NLA

1шт.

92

Kit

Shroud Kit AT167874 NLA

1шт.
