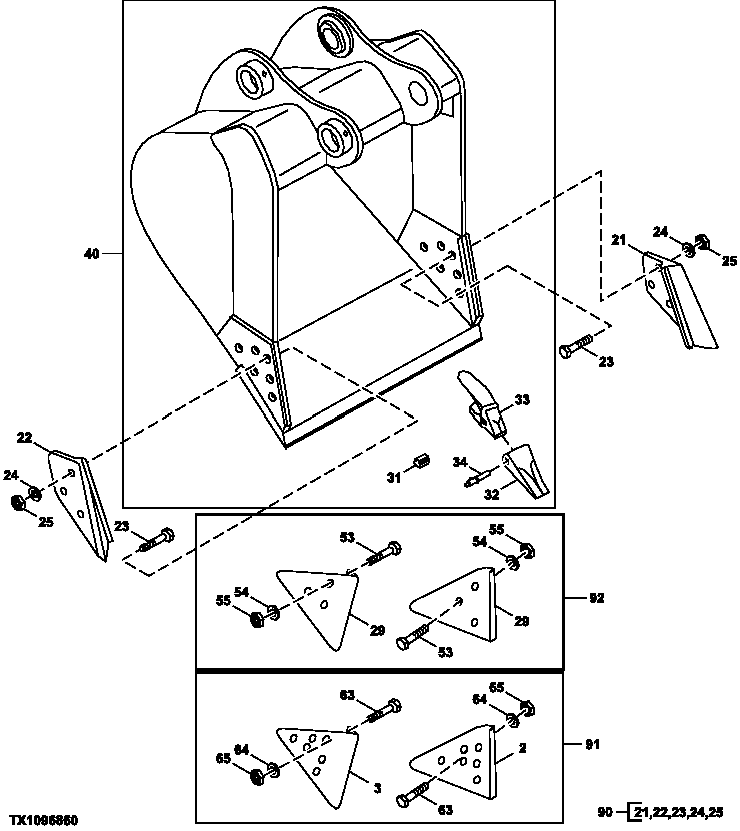

Запчасти John Deere 00CLC 250 - Super Long Front Bucket 0.52 Yd³ (30 In.) 3302 BUCKET WITH TEETH

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

29

TPDE31329

Shroud

Wear

2шт.

31

TK3L

Lock

6шт.

32

TK225FD

Tooth

6шт.

33

TK225C100

Bucket Tooth Adapter

6шт.

34

TK225P

Pin Fastener

6шт.

40

AT395833

Excavator Bucket

0.52 yd³ (30 in.), Refer to TK225 Series Bucket Tooth System for Ad ditional Tooth Options Whole Goods

1шт.

53

09H1772

Bolt

7/8" X 3-1/2"

6шт.

54

12H245

Lock Washer

7/8"

6шт.

55

14H1077

Nut

7/8"

6шт.

63

09H1772

Bolt

7/8" X 3-1/2"

12шт.

64

12H245

Lock Washer

7/8"

12шт.

65

14H1077

Nut

7/8"

12шт.

90

AT342512

Kit

76.2 mm (3.0 in.), Side Cutter Whole Goods

1шт.

91

AT342513

Kit

152.4 mm (6.0 in.), Side Cutter Whole Goods

1шт.

92

AT342511

Kit

Edge Protector Whole Goods

1шт.
