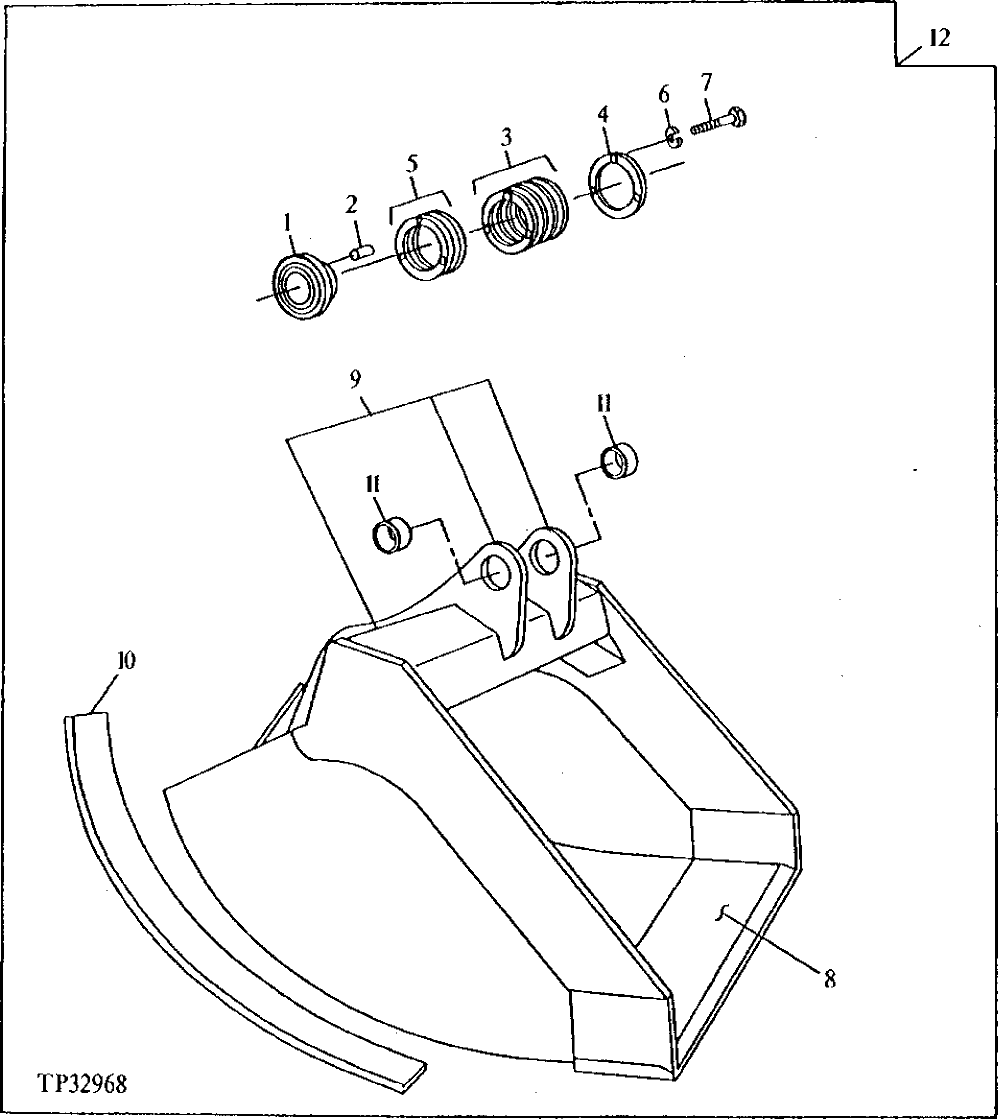

Запчасти John Deere 00CLC 244 - DITCHING BUCKET 3302 BUCKET WITH TEETH

1

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

2

R48685

Dowel Pin

1шт.

3

TH104512

Washer

9шт.

4

TH104514

Spacer

1шт.

5

TH104513

Shim

1шт.

6

12H294

Lock Washer

5/8"

3шт.

7

19H2706

Cap Screw

5/8" X 2"

3шт.

8

AT131089

Dura-Max Cutting Edge

(USE WITH AT161005)

1шт.

AT131088

Dura-Max Cutting Edge

(USE WITH AT160685)

1шт.

9

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

10

300204

Bar

(A) Wear

5шт.

11

TH104509

Bushing

(USE WITH AT161005)

2шт.

TH108649

Bushing

(USE WITH AT160685)

2шт.

12

Excavator Bucket

( AT131117 NLA) (72 INCH/1.06 CUBIC YARD)

1шт.

Excavator Bucket

( AT161005 NLA) (60 INCH/0.9 0 CUBIC YARD) (SUB AT332702)

1шт.

Excavator Bucket

( AT199362 NLA) (60 INCH/1.1 3 CUBIC YARD) (SUB AT332703)

1шт.

Excavator Bucket

( AT199363 NLA) (72 INCH/1.34 CUBIC YARD)

1шт.
