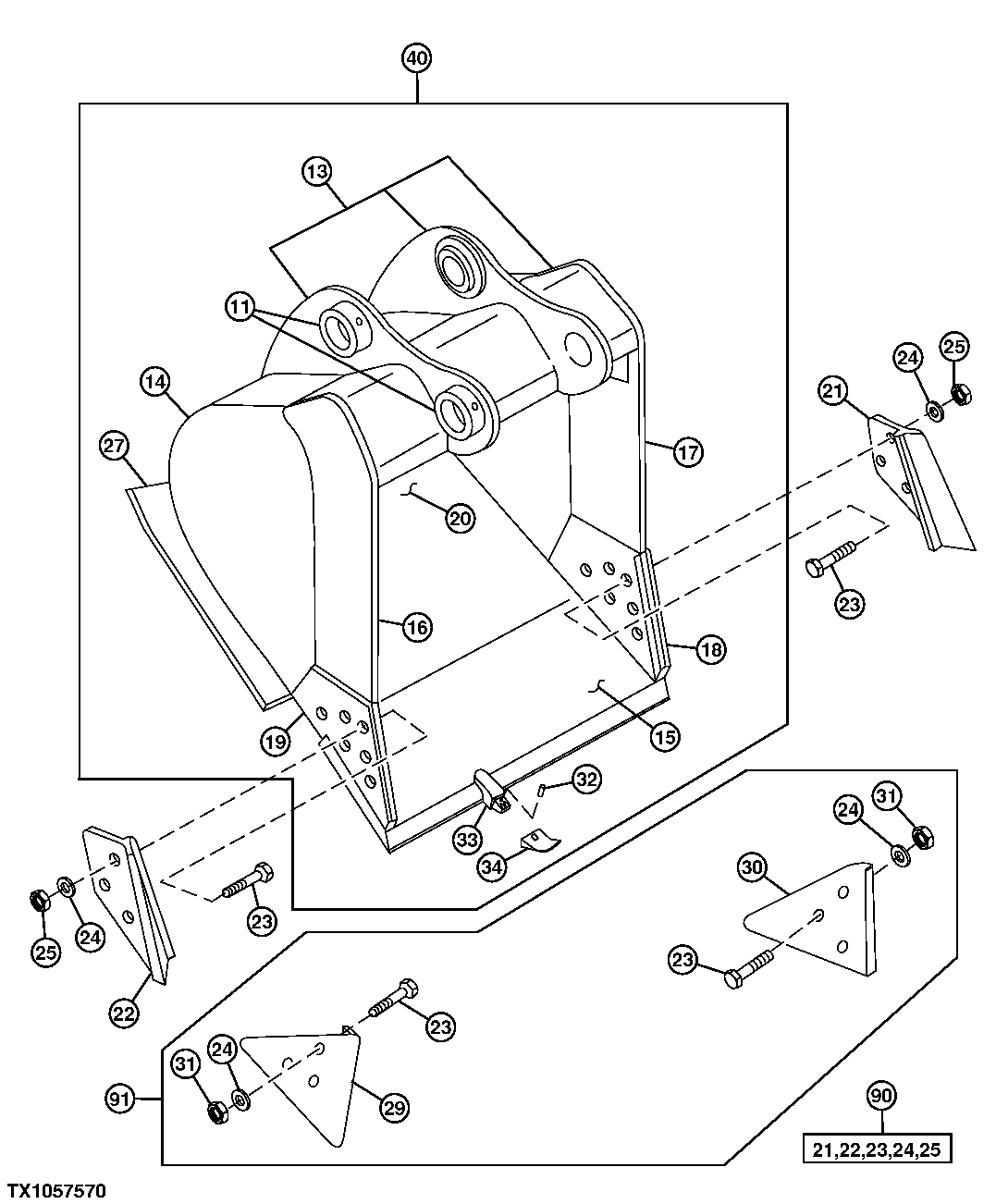

Запчасти John Deere 00CLC 243 - SEVERE DUTY PLATE LIP BUCKET 3302 BUCKET WITH TEETH

11

TH104509

Bushing

Locking Collar

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

305511

Plate

(A) (RH/LH)

2шт.

15

AT131097

Cutting Edge

(CTL)

ARшт.

16

305512

Vertical Cutter

(A) Upper Right

1шт.

17

305513

Vertical Cutter

(A) Upper Left

1шт.

18

305531

Vertical Cutter

(A) Insert (LH)

1шт.

19

305530

Vertical Cutter

(A) Insert (RH)

1шт.

20

605990

Moldboard

(A) (30 INCH)

1шт.

605991

Moldboard

(A) (36 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

605995

Bar

(A) Use With 30 in. Bucket

1шт.

605996

Bar

(A) Use With 36 in. Bucket

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

32

TP400HD

Pin

ARшт.

33

T130X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

30 in., 0.77 yd³, 4 Teeth ( AT 332699 NLA) (SUB FOR AT163624)

1шт.

Excavator Bucket

36 in., 0.95 yd³, ( AT3327 00 NLA) (SUB FOR AT163625)

1шт.

Excavator Bucket

42 in., 1.12 yd³, ( AT332701 NLA) (42 INCH/1.12 CUBIC YARD) (5 TEETH) ( AT332701 NLA) (SUB FOR AT199360)

1шт.

90

Kit

( AT131085 NLA) Side Cutter Kit

1шт.

91

Kit

Edge Protector ( AT167876 NLA)

1шт.
