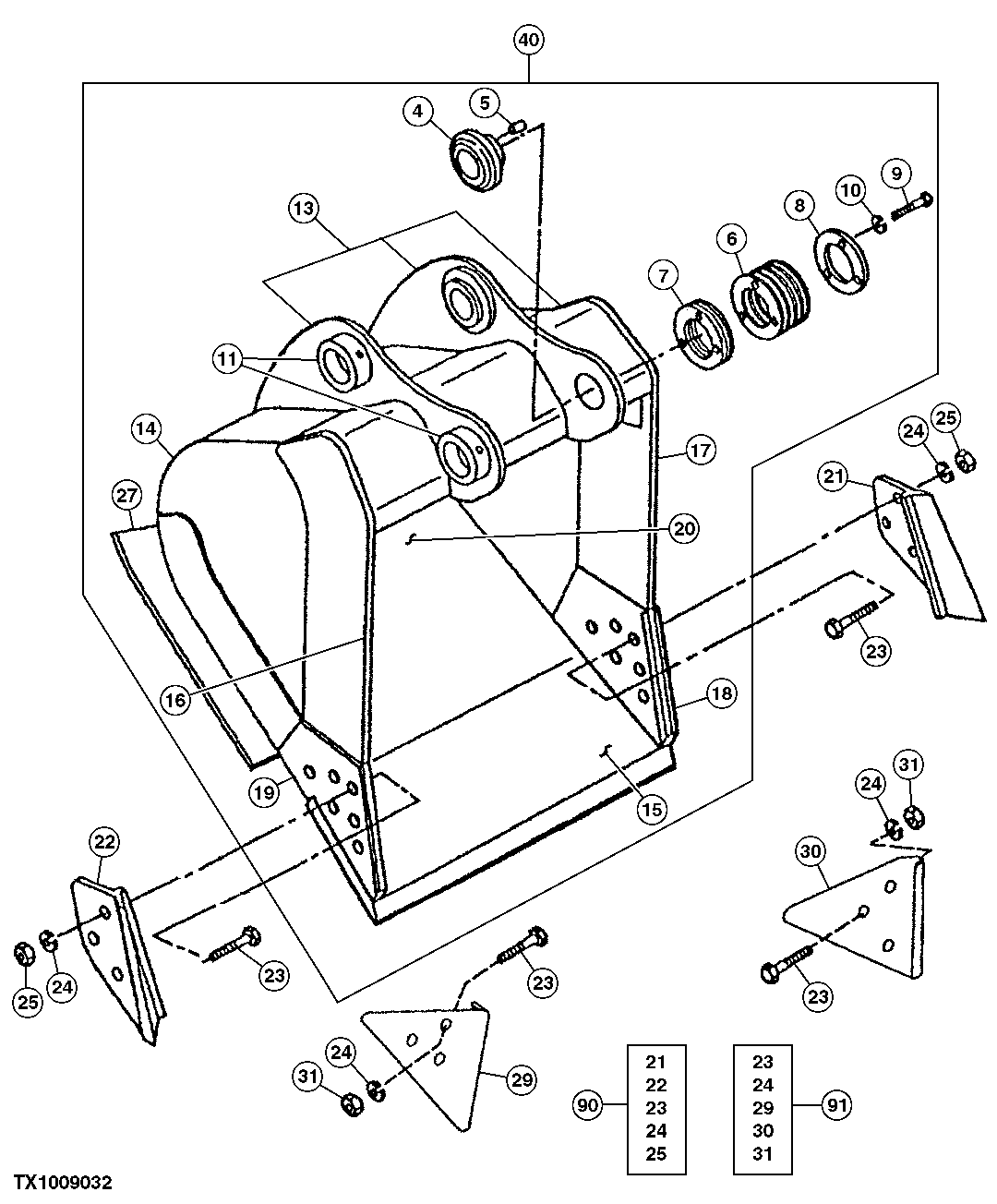

Запчасти John Deere 00CLC 241 - SEVERE DUTY CAST LIP BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

Locking Collar

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300952

Plate

(A) (RH/LH)

2шт.

15

C252561

Cutting Edge

(A) Use With 24 in. Bucket

1шт.

C252562

Cutting Edge

(A) Use With 30 in. Bucket

1шт.

C252563

Cutting Edge

(A) Use With 36 in. Bucket

1шт.

AT131097

Dura-Max Cutting Edge

72 in., Use With 30 A nd 36 in. Bucket (CTL)

1шт.

T154189

Cutting Edge

42 in., Use With 30 A nd 36 in. Bucket (CTL)

1шт.

T154188

Cutting Edge

36 in., Use With 30 A nd 36 in. Bucket (CTL)

1шт.

16

300159

Vertical Cutter

(A) Upper Right

1шт.

17

300160

Vertical Cutter

(A) Upper Left

1шт.

18

300958

Vertical Cutter

(A) (LH) Insert

1шт.

19

300957

Vertical Cutter

(A) (RH) Insert

1шт.

20

600515

Moldboard

(A) (24 INCH)

1шт.

600708

Moldboard

(A) (30 INCH)

1шт.

600517

Moldboard

(A) (36 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

607392

Bar

(A) Use With 24 in. Bucket

1шт.

607393

Bar

(A) Use With 30 in. Bucket

1шт.

607394

Bar

(A) Use With 30 in. Bucket

1шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

1шт.

40

Excavator Bucket

(B) ( AT171737 NLA) ( 24 INCH) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT171739 NLA) ( 30 INCH) (WHOLE GOODS)

1шт.

Excavator Bucket

(B) ( AT171741 NLA) ( 36 INCH) (WHOLE GOODS)

1шт.

90

Kit

Side Cutting Kit ( AT131085 NLA)

1шт.

91

Kit

( AT167876 NLA) Edge Protector

1шт.
