Запчасти John Deere 00CLC 240 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

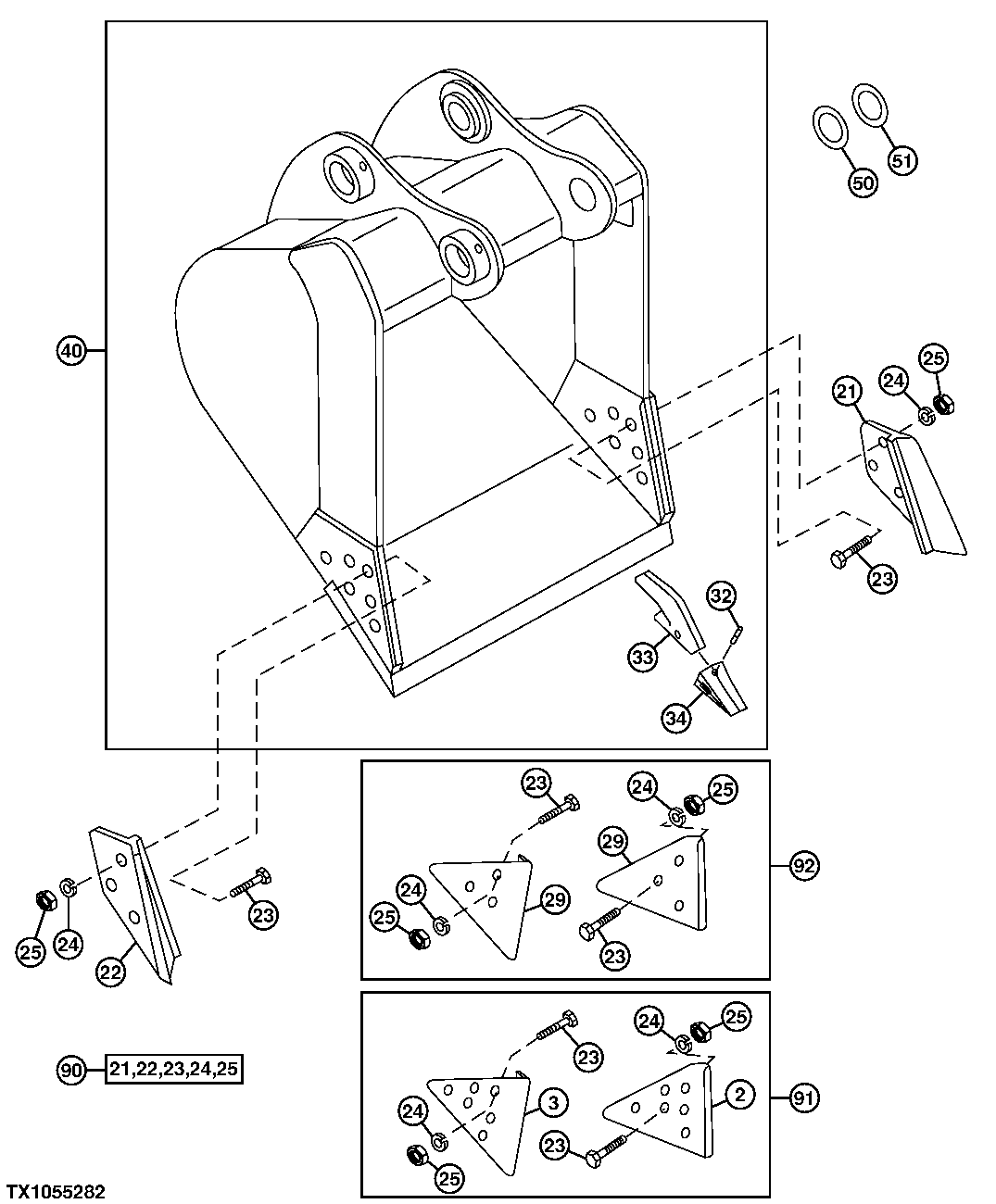

Схема запчастей John Deere 00CLC - 240 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748L3

End Bit

1шт.

22

CE17748R3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

Wear

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339138

Excavator Bucket

24 in., 0.56 yd³, (WHOLE GOOD S) (SUB FOR AT332693) 4 Teeth

1шт.

AT339140

Excavator Bucket

30 in. 0.76 yd³, 4 Teeth (WH OLE GOODS) (SUB FOR AT332695)

1шт.

AT339142

Excavator Bucket

36 in., 0.97 yd³, (WHOLE GOOD S) (SUB FOR AT332696) 5 Teeth

1шт.

AT339144

Excavator Bucket

42 in., 1.19 yd³, 5 Teeth (WH OLE GOODS) (SUB FOR AT332697)

1шт.

AT339146

Excavator Bucket

48 in., 1.39 yd³, (WHOLE GOOD S) (SUB FOR AT332698) 6 Teeth

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039") (1 MM)

ARшт.

51

T241937

Shim

(.5 MM)

ARшт.

90

AT342511

Kit

Side Cutter Kit (WHOLE GOODS)

1шт.

91

AT342513

Kit

Edge Protector (WHOLE GOODS) (6 INCH)

1шт.

92

AT342512

Kit

Edge Protector (WHOLE GOODS) (3 INCH)

1шт.

Выбрано товаров: 21
