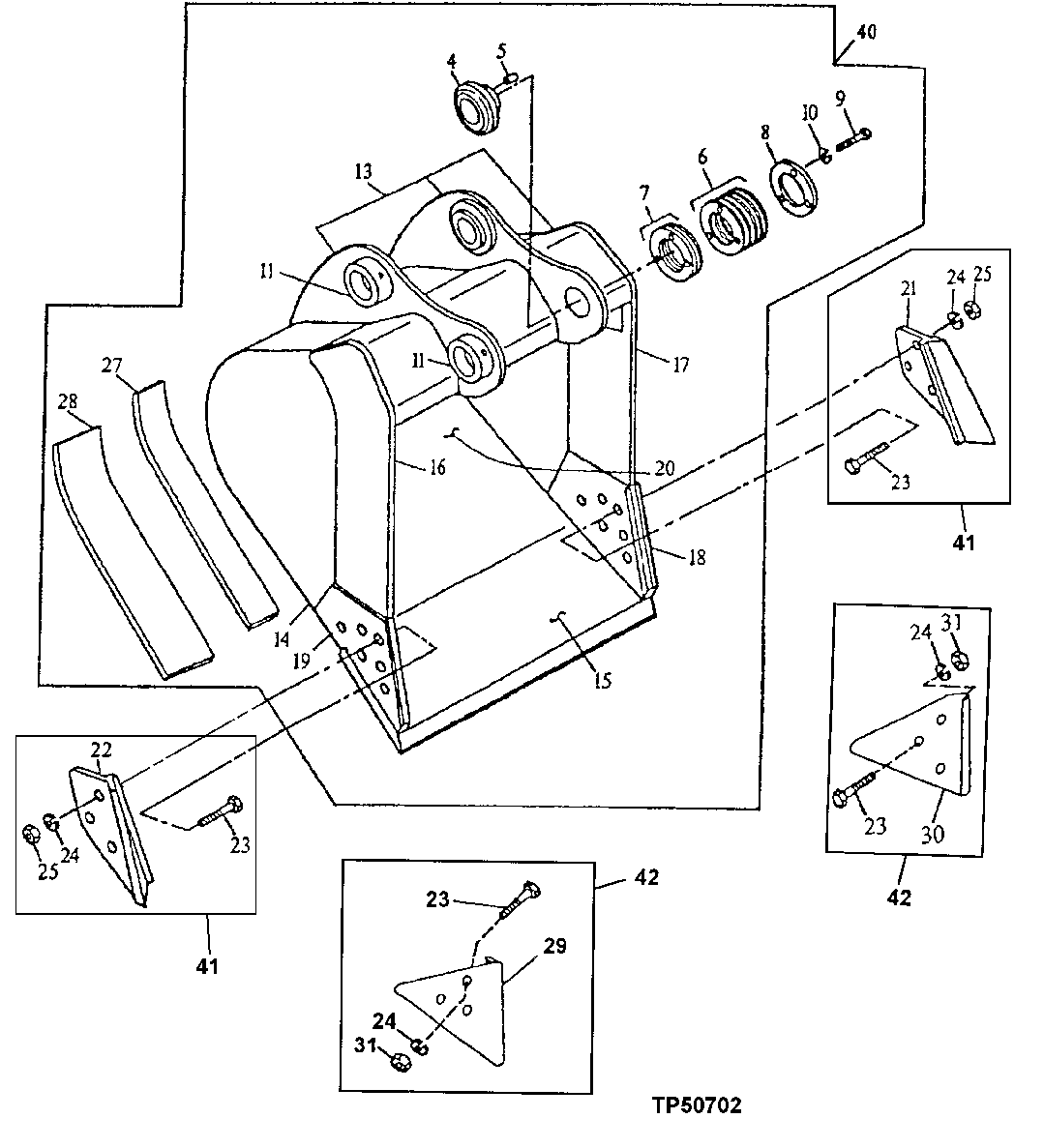

Запчасти John Deere 00CLC 238 - HEAVY DUTY HIGH CAPACITY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

Locking Collar

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300167

Plate

(A) (RH/LH)

2шт.

15

Cutting Edge

(CTL) (ORDER AT131090)

1шт.

C252567

Cutting Edge

(A) Use With 36 in. Bucket (CTL)

1шт.

16

300159

Vertical Cutter

(A) (RH) Upper

1шт.

17

300160

Vertical Cutter

(A) (LH) Upper

1шт.

18

300158

Vertical Cutter

(A) (LH) Insert

1шт.

19

300157

Vertical Cutter

(A) (RH) Insert

1шт.

20

600118

Moldboard

(A) (24 INCH)

1шт.

600119

Moldboard

(A) (30 INCH)

1шт.

600120

Moldboard

(A) (36 INCH)

1шт.

600121

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(LH) (SUB AT131085)

1шт.

22

Cutting Edge

(RH) (SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

(A) Inner Wear

1шт.

28

306452

Bar

(A) Outer Wear

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(B) 24 in., 0.73 yd³, (WHOLE GOO DS) ( AT163616 NLA) (SUB AT332693)

1шт.

Excavator Bucket

(B) (WHOLE GOODS) ( AT1 63617 NLA) (SUB AT332695)

1шт.

Excavator Bucket

(B) 36 in., 1.16 yd³, (WHOLE GOO DS) ( AT163618 NLA) (SUB AT332696)

1шт.

Excavator Bucket

(B) 42 in., 1.38 yd³, (WHOLE GOO DS0( AT163620 NLA) (SUB AT332697)

1шт.

Excavator Bucket

(B) 36 in., 1.25 yd³, (WH OLE GOODS) ( AT183961 NLA)

1шт.

Excavator Bucket

(B) 48 in., 1.6 yd³, (WHOLE GOOD S) ( AT199358 NLA) (SUB AT332698)

1шт.

41

Kit

Cutting Edge ( AT131085 NLA)

1шт.

42

Kit

Wear ( AT167876 NLA)

1шт.
