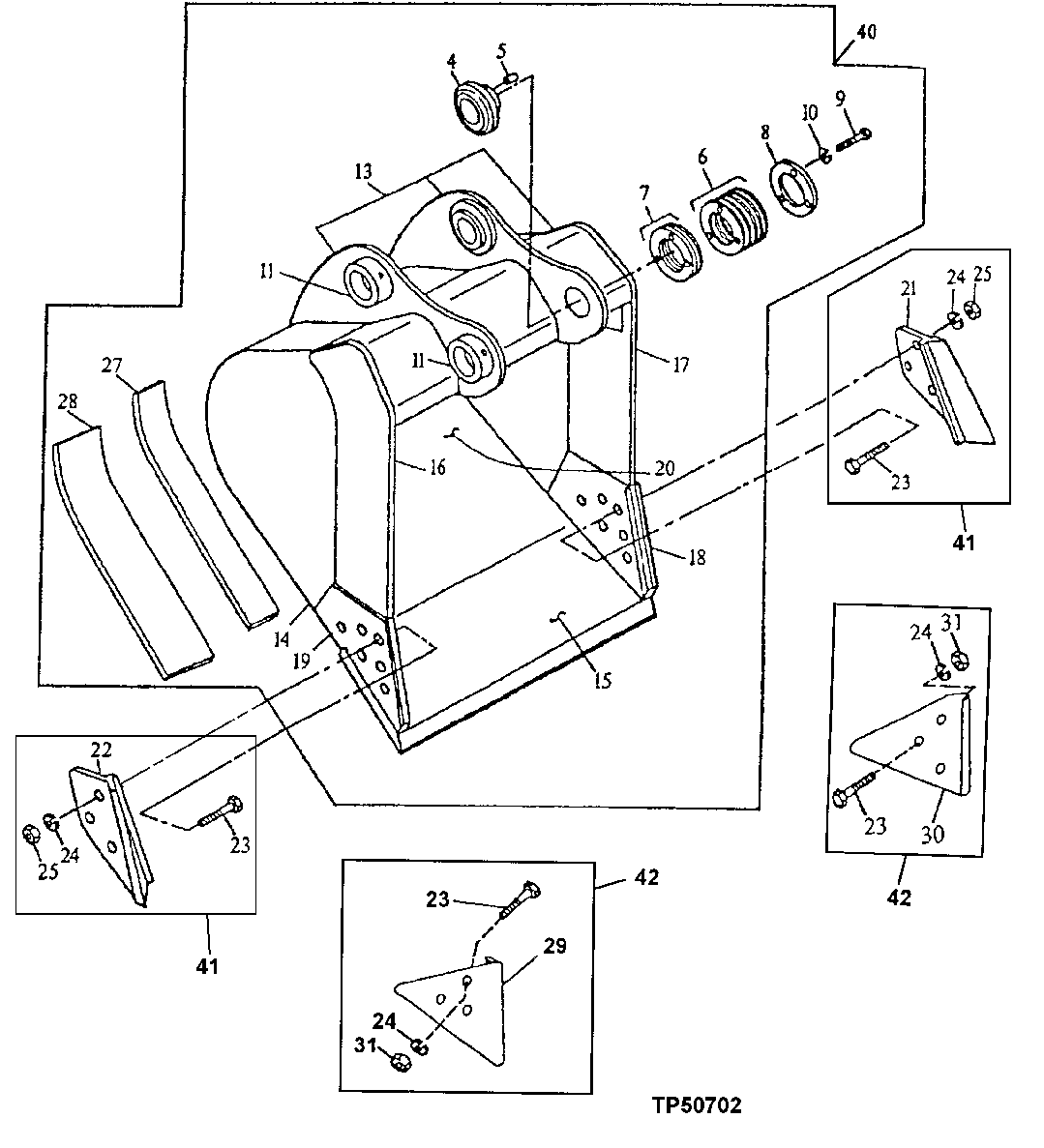

Запчасти John Deere 00CLC 235 - HEAVY DUTY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

Locking Collar

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300804

Plate

(A) (RH/LH)

2шт.

15

Cutting Edge

(CTL) (MAKE FROM AT131082)

1шт.

16

300526

Vertical Cutter

(A) (RH) Upper

1шт.

17

300527

Vertical Cutter

(A) (LH) Upper

1шт.

18

304568

Vertical Cutter

(A) (LEFT INSERT) Left Insert

1шт.

19

304567

Vertical Cutter

(A) Right Insert

1шт.

20

600417

Moldboard

(A) (24 INCH)

1шт.

600418

Moldboard

(A) (30 INCH)

1шт.

600419

Moldboard

(A) (36 INCH)

1шт.

600420

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(LH) (SUB AT131085)

1шт.

22

Cutting Edge

(RH) (SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) Inner Wear

1шт.

28

304564

Bar

(A) Outer Wear

2шт.

29

Shroud

Wear (SUB AT167876)

1шт.

30

Shroud

Wear (SUB AT167876)

1шт.

31

14H1044

Nut

7/8"

6шт.

40

Excavator Bucket

(B) 24 in., 0.59 yd³, (WHOLE GOO DS) ( AT163611 NLA) (SUB AT332688)

1шт.

Excavator Bucket

(B) 30 in., 0.77 yd³, (WHOLE GOO DS) ( AT163612 NLA) (SUB AT332689)

1шт.

Excavator Bucket

(B) 36 in., 0.95 yd³, (WHOLE GOO DS) ( AT163613 NLA) (SUB AT332690)

1шт.

Excavator Bucket

(B) 42 in., 1.12 yd³, (WHOLE GOO DS) ( AT163614 NLA) (SUB AT332691)

1шт.

Excavator Bucket

(B) 48 in., 1.30 yd³, (WHOLE GOO DS)( AT163615 NLA) (SUB AT332692)

1шт.

41

Kit

( AT131085 NLA) Cutting Edge

1шт.

42

Kit

Wear ( AT167876 NLA)

1шт.
