Запчасти John Deere 00CLC 234 - GENERAL PURPOSE HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

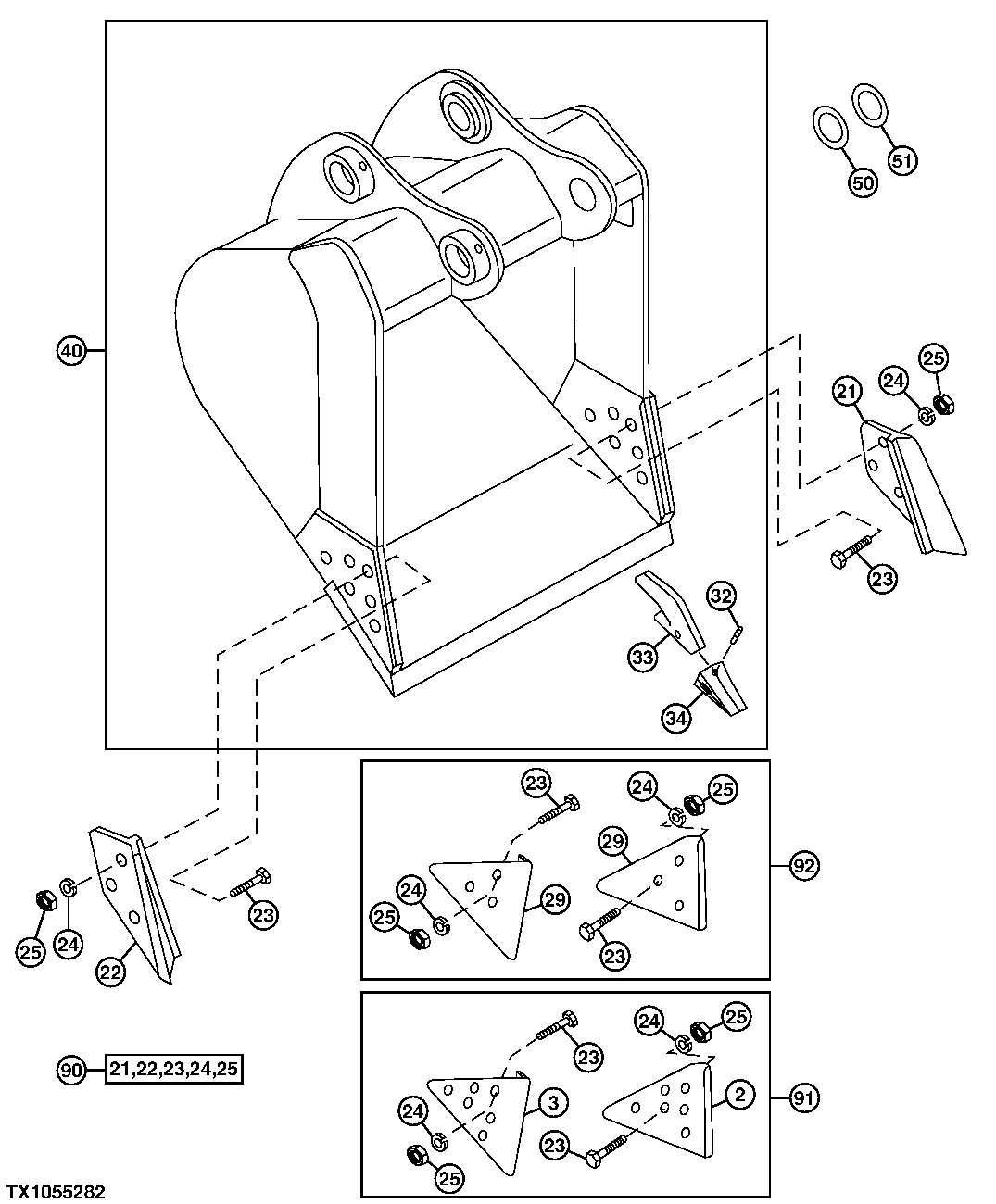

Схема запчастей John Deere 00CLC - 234 - GENERAL PURPOSE HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

2

T1156A

End Bit

1шт.

3

T1157A

End Bit

1шт.

21

CE17748R3

End Bit

1шт.

22

CE17748L3

End Bit

1шт.

23

09H1772

Bolt

7/8" X 3-1/2"

ARшт.

24

12H245

Lock Washer

7/8"

ARшт.

25

14H1077

Nut

7/8"

ARшт.

29

TPDE31329

Shroud

Wear

2шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

AT339115

Excavator Bucket

30 in., .79 yd³, 4 Teeth (WH OLE GOODS) (SUB FOR AT332684)

1шт.

AT339122

Excavator Bucket

36in., 1 yd³, 5 Teeth (WHO LE GOODS)(SUB FOR AT332685)

1шт.

AT339124

Excavator Bucket

42in., 1.22 yd³, 5 Teeth (WH OLE GOODS)(SUB FOR AT332686)

1шт.

AT339126

Excavator Bucket

48 in., 1.43 yd³, 6 Teeth (WH OLE GOODS) (SUB FOR AT332687)

1шт.

50

T241930

Washer

85 X 140 X 1 mm (3.346" X 5.512" X 0.039")

ARшт.

51

T241937

Shim

ARшт.

90

AT342511

Kit

Side Cutter Kit (WHOLE GOODS)

1шт.

91

AT342513

Kit

(WHOLE GOODS) Edge Protector (6 INCH)

1шт.

92

AT342512

Kit

(WHOLE GOODS) Edge Protector (3 INCH)

1шт.

Выбрано товаров: 20
