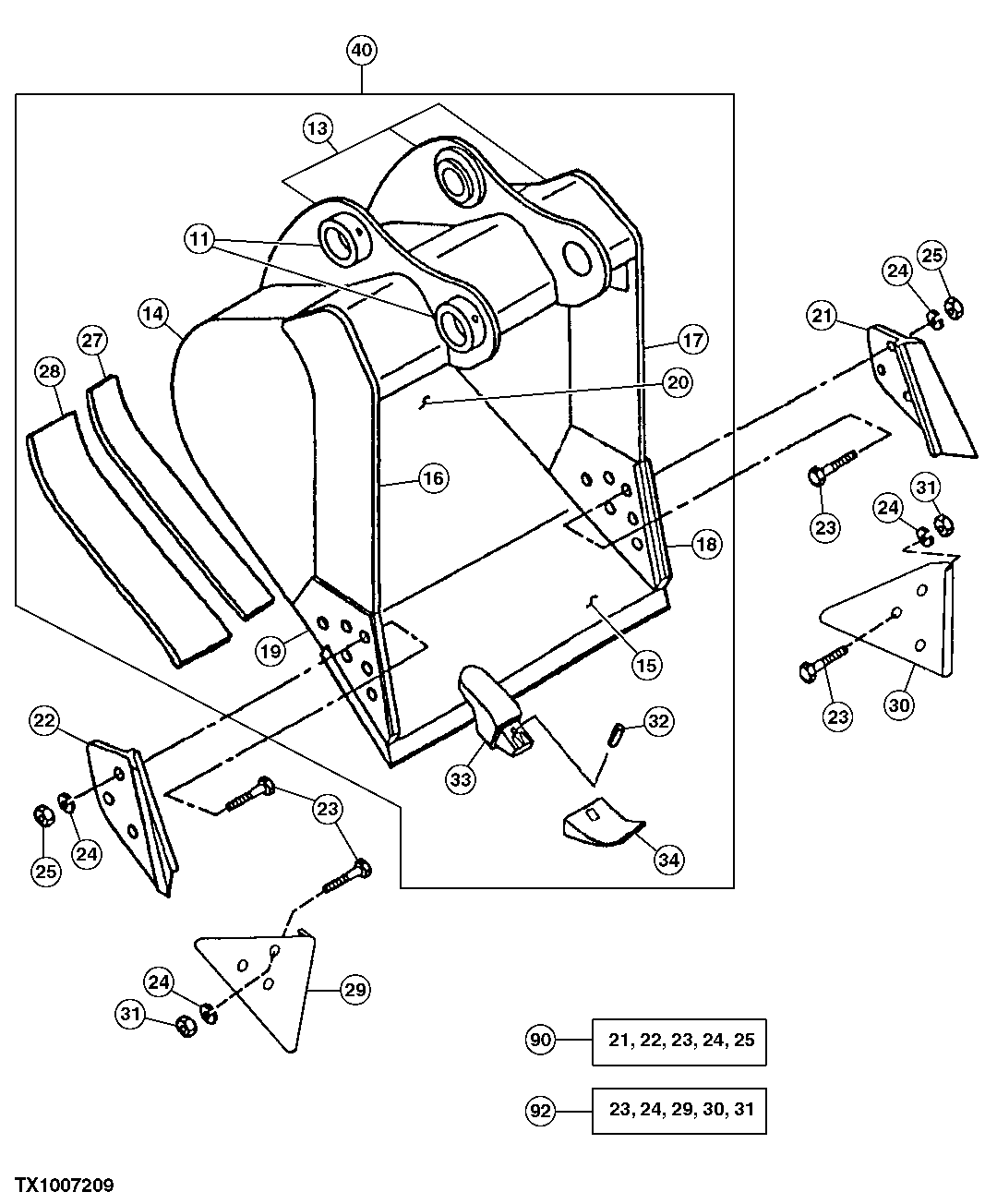

Запчасти John Deere 00CLC 233 - GENERAL PURPOSE HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

11

TH104509

Bushing

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300536

Plate

(A) (RH/LH)

2шт.

15

Cutting Edge

(CTL) (MAKE FROM AT131090)

1шт.

16

300534

Vertical Cutter

(A) (RH) Upper

1шт.

17

300535

Vertical Cutter

(A) (LH) Upper

1шт.

18

300482

Vertical Cutter

(A) Left Insert

1шт.

19

300481

Vertical Cutter

(A) Right Insert

1шт.

20

600318

Moldboard

(A) (30 INCH)

1шт.

600319

Moldboard

(A) (36 INCH)

1шт.

600320

Moldboard

(A) (42 INCH)

1шт.

600321

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) Inner Wear

1шт.

28

306974

Bar

(A) Outer Wear

2шт.

29

Shroud

Wear (SUB AT167874)

1шт.

30

Shroud

Wear (SUB AT167874)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

40

Excavator Bucket

30 in., .95 yd³, 4 Teeth ( AT332684 NL A) (SUB FOR AT163607 ) ( AT339115 NLA)

1шт.

Excavator Bucket

36 in., 1.16 yd³, 5 Teeth ( AT332685 N LA) (SUB FOR AT163608 ) ( AT339122 NLA)

1шт.

Excavator Bucket

42 in., 1.38 yc³, 5 Teeth ( AT332686 N LA) (SUB FOR AT163609 ) ( AT339124 NLA)

1шт.

Excavator Bucket

48 in., 1.60 yd³, 6 Teeth ( AT332687 N LA) (SUB FOR AT163610 ) ( AT339126 NLA)

1шт.

90

Kit

( AT131080 NLA) Side Cutter Kit

1шт.

92

Kit

( AT167874 NLA) Edge Protector

1шт.
