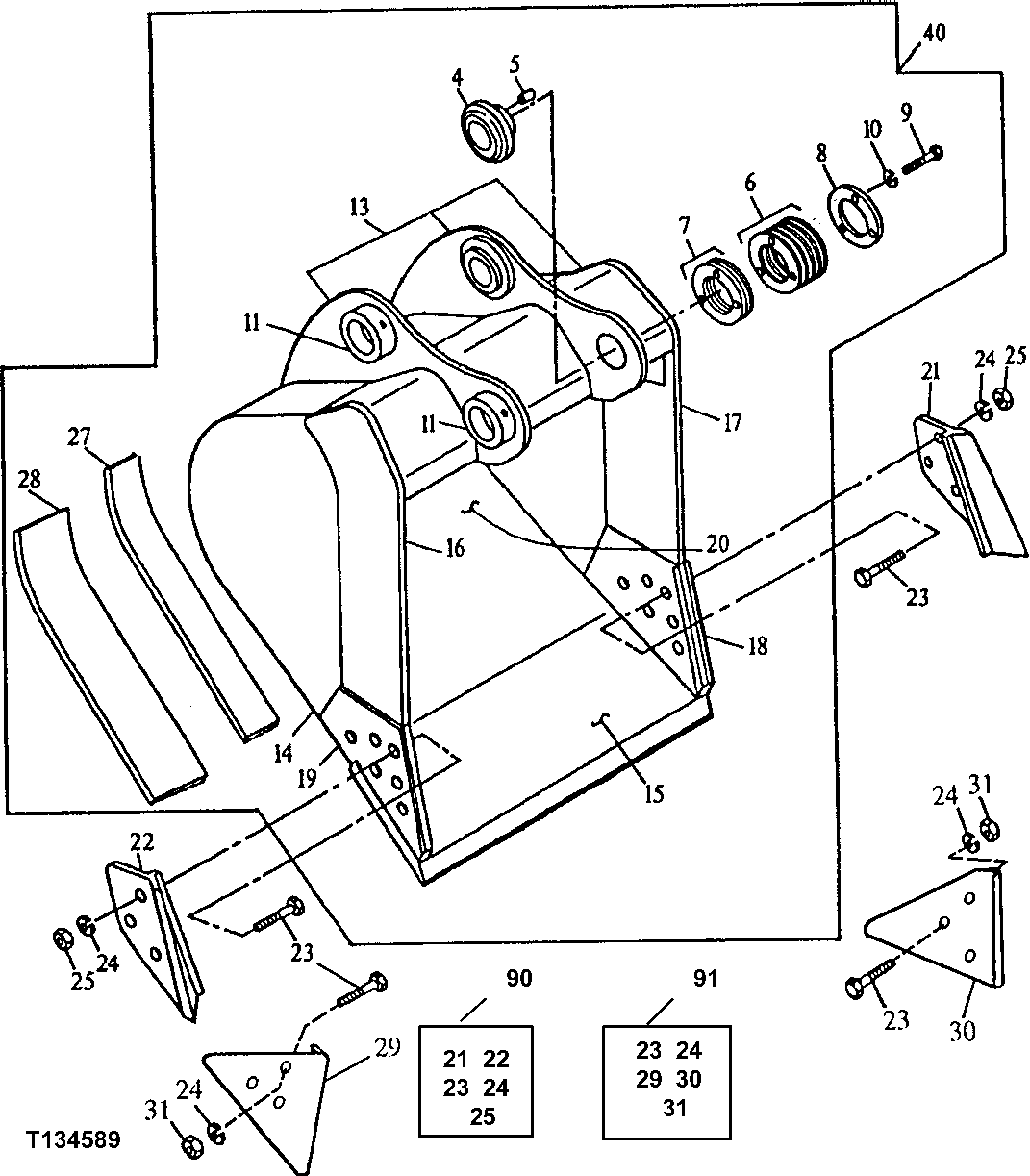

Запчасти John Deere 00CLC 232 - GENERAL PURPOSE HIGH CAPACITY BUCKET (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

4

Self-Aligning Bushing

(1 INCH HEAD THICKNESS) ( AT131083 NLA)

1шт.

5

R48685

Dowel Pin

1шт.

6

TH104512

Washer

9шт.

7

TH104513

Shim

1шт.

8

TH104514

Spacer

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH104509

Bushing

2шт.

13

C607480

Pivot

(A) Bucket Ear Blank Assembly

1шт.

14

300536

Plate

(A) (RH/LH)

2шт.

15

Cutting Edge

(CTL) (MAKE FROM AT131090)

1шт.

16

300534

Vertical Cutter

(A) (RH) Upper

1шт.

17

300535

Vertical Cutter

(A) (LH) Upper

1шт.

18

300482

Vertical Cutter

(A) Left Insert

1шт.

19

300481

Vertical Cutter

(A) Right Insert

1шт.

20

600318

Moldboard

(A) (30 INCH)

1шт.

600319

Moldboard

(A) (36 INCH)

1шт.

600320

Moldboard

(A) (42 INCH)

1шт.

600321

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131080)

1шт.

22

Cutting Edge

(SUB AT131080)

1шт.

23

09H1770

Bolt

7/8" X 2-1/2"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300524

Bar

(A) Inner Wear

1шт.

28

306974

Bar

(A) Outer Wear

2шт.

29

Shroud

Wear (SUB AT167874)

1шт.

30

Shroud

Wear (SUB AT167874)

1шт.

31

14H1044

Nut

7/8" 22.225 MM (7/8")

6шт.

40

Excavator Bucket

(B) (WHOLE GOODS) (30 INCH/0.95 CUBI C YARD) ( AT163607 NLA) (SUB AT332684)

1шт.

Excavator Bucket

(B) (WHOLE GOODS) (36 INCH/1.16 CUBI C YARD) ( AT163608 NLA) (SUB AT332685)

1шт.

Excavator Bucket

(B) (WHOLE GOODS) (42 INCH/1.38 CUBI C YARD) ( AT163609 NLA) (SUB AT332686)

1шт.

Excavator Bucket

(B) (WHOLE GOODS) (48 INCH/1.60 CUBI C YARD) ( AT163610 NLA) (SUB AT332687)

1шт.

90

Kit

( AT131080 NLA) Side Cutter Kit

1шт.

91

Kit

( AT167874 NLA) Edge Protector

1шт.
