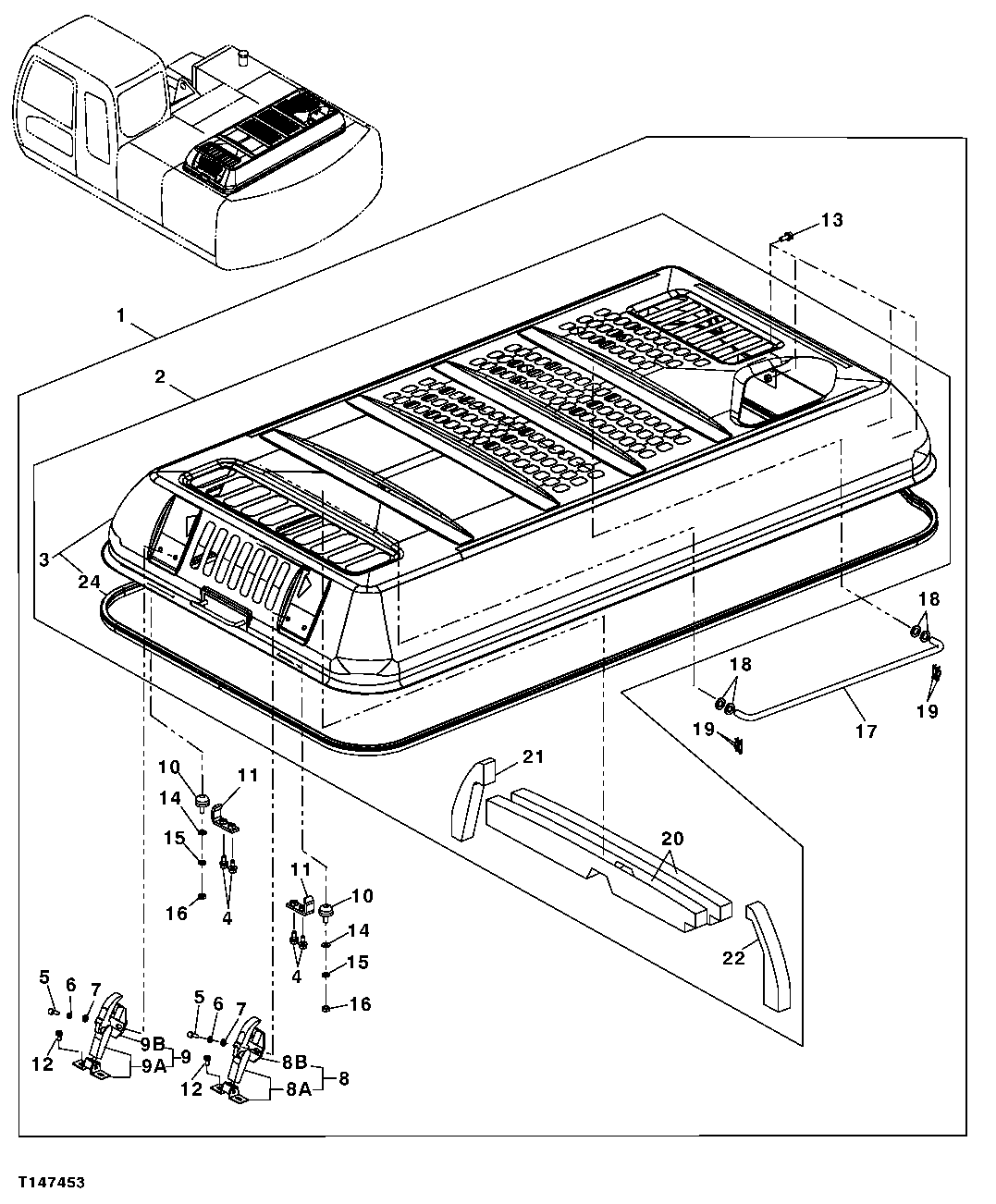

Запчасти John Deere 00CLC 223 - ENGINE COMPARTMENT COVER 1910 HOOD OR ENGINE ENCLOSURE

1

Cover

THDH900194 NLA

1шт.

2

Cover

Stamped Engine Hood Cover Can Tell If S tamped Or Welded By Looking At Inside Co rner Of Cover SUB FOR DH800042 OR 500810 7

1шт.

Cover

Fabricated Engine Hood Cover Can Tel l If Stamped Or Welded By Looking At Inside Corner Of Cover DH900532 NLA

1шт.

3

Cover

Stamped Engine Hood Cover DH500019 NLA

1шт.

DH500088

Cover

Fabricated Engine Hood Cover A LSO ORDER DH300163, DH300164, D H400733, DH400734 AND DH400735

1шт.

4

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

5

21M7397

Screw

M8 X 25

4шт.

6

Washer

12M7065 NLA

4шт.

7

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

8

4361455

Catch

SUB FOR AT215532; SUB FOR TH108769

1шт.

AT194969

Key

SUB FOR AT147803

1шт.

8A

3040904

Catch

SUB FOR AT126162

1шт.

8B

3021131

Anchor

SUB FOR TH102247

1шт.

9

4361455

Catch

SUB FOR TH111036; SUB FOR TH108769

1шт.

AT194969

Key

SUB FOR AT147803

1шт.

9A

3040904

Catch

SUB FOR AT126162

1шт.

9B

3021131

Anchor

SUB FOR TH102247

1шт.

10

4294508

Bumper

SUB FOR AT201032

2шт.

11

AT307244

Bracket

SUB FOR AT171615 OR 9743889

2шт.

12

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

13

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

15

12M7066

Lock Washer

10 mm

2шт.

16

14M7274

Nut

M10

2шт.

17

4278783

Bracket

SUB FOR AT201025

1шт.

18

24M7053

Washer

17 X 30 X 3 mm

4шт.

19

M40461

Spring Locking Pin

4шт.

20

4465397

Isolator

USE WITH 5008107J; SUB FOR DH400251

2шт.

DH400734

Isolator

USE WITH DH500088

1шт.

21

4465398

Isolator

USE WITH 5008107J; SUB FOR DH400252

1шт.

DH400733

Isolator

USE WITH DH500088

1шт.

22

DH400254

Isolator

4465396 NLA USE WITH 50 08107J; SUB FOR DH400253

1шт.

DH400735

Isolator

USE WITH DH500088

1шт.

24

4387043

Isolator

USE WITH 5008107J; SUB FOR AT155314 OR 4278601

1шт.

DH300163

Isolator

USE WITH DH500088; ALSO ORDER DH300164

1шт.

DH300164

Isolator

USE WITH DH500088; ALSO ORDER DH300163

1шт.
