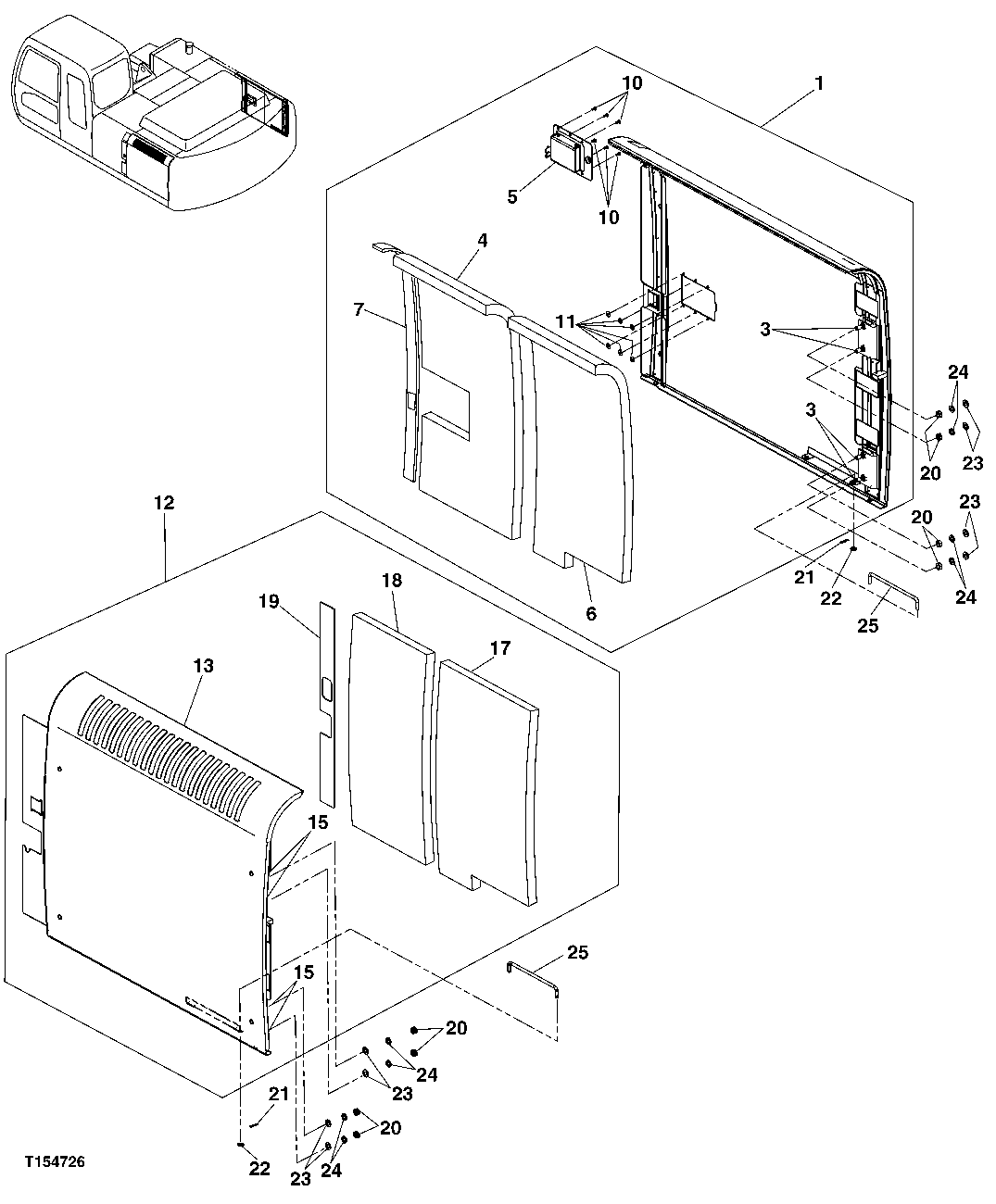

Запчасти John Deere 00CLC 221 - COMPARTMENT COVER DOORS 1910 HOOD OR ENGINE ENCLOSURE

1

DH700043J

Door

(SUB FOR THDH700043J)

1шт.

3

19M7402

Cap Screw

M10 X 25

4шт.

4

4412574

Isolator

(SUB FOR TH4412574)

1шт.

5

DH400030

Latch

(SUB FOR THDH400030)

1шт.

6

DH400473

Isolator

(SUB FOR DH400363 AND THDH400363)

1шт.

7

DH400341

Isolator

(SUB FOR THDH400341)

1шт.

8

DH400347

Isolator

(SUB FOR THDH400347)

1шт.

9

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

10

M63200

Rivet

4.775 mm (3/16")

6шт.

11

24M7138

Washer

5.300 X 15 X 1 mm

6шт.

12

DH700044J

Door

(SUB FOR THDH700044J)

1шт.

13

Door

( DH500022J NLA) (SUB FOR THDH500022J)

1шт.

14

Hinge

2шт.

15

19M7402

Cap Screw

M10 X 25

4шт.

16

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

17

DH400361

Isolator

(SUB FOR THDH400361)

1шт.

18

DH400362

Isolator

(SUB FOR THDH400362)

1шт.

19

DH400350

Isolator

(SUB FOR THDH400350)

1шт.

20

14M7274

Nut

M10

8шт.

21

H132922

Cotter Pin

2шт.

22

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

23

24M7028

Washer

10.500 X 20 X 2 mm

8шт.

24

12M7066

Lock Washer

10 mm

8шт.

25

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

2шт.
