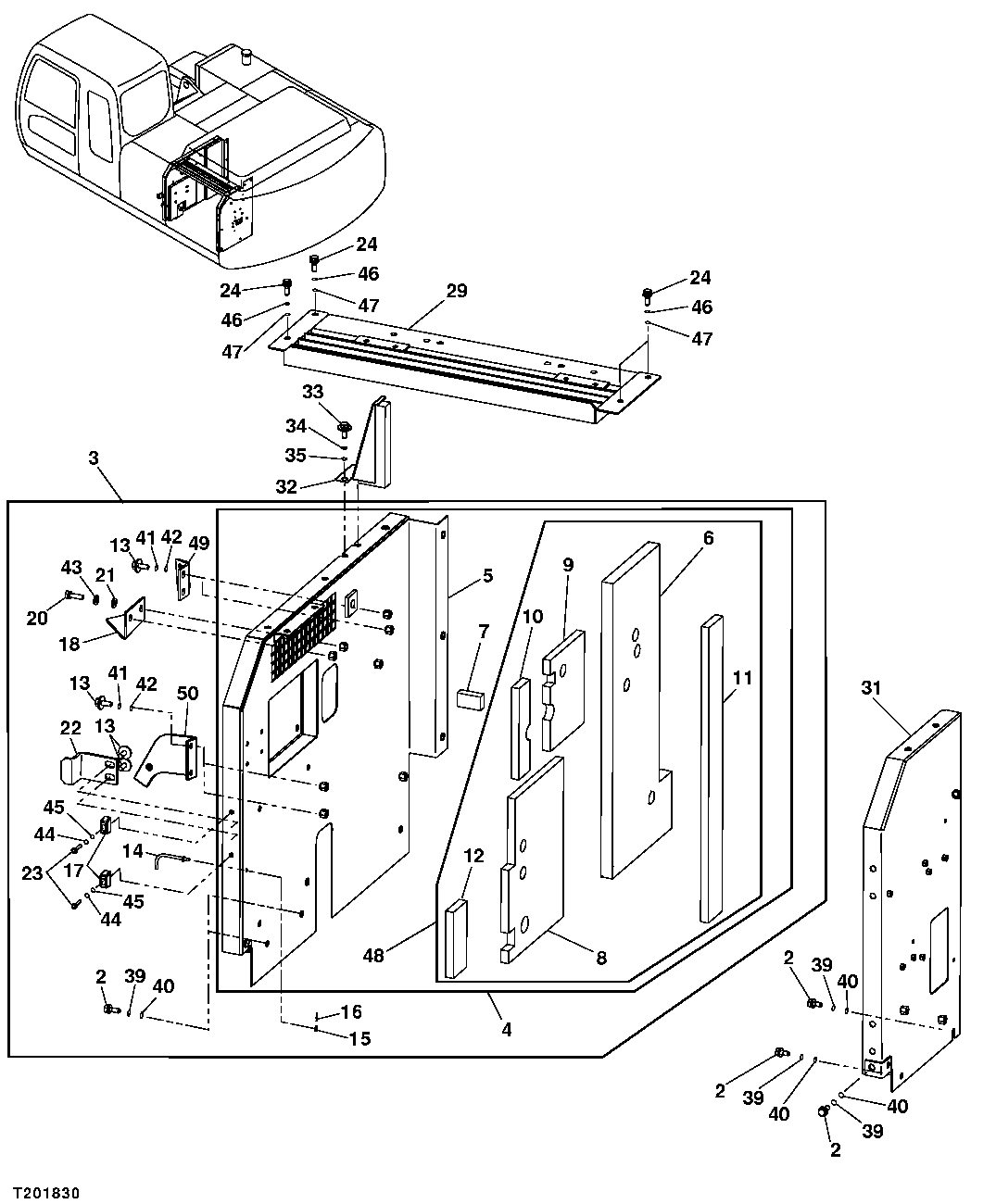

Запчасти John Deere 00CLC 219 - RADIATOR COMPARTMENT PANELS, COVER AND ISOLATORS 1910 HOOD OR ENGINE ENCLOSURE

2

19M7662

Cap Screw

M10 X 30

5шт.

3

Support

( DH900150 NLA) (SUB FOR THDH900150)

1шт.

4

DH700015

Support

(SUB FOR THDH700015)

1шт.

5

DH600004

Support

(SUB FOR THDH600004)

1шт.

6

4415013

Isolator

(SUB FOR TH4415013)

1шт.

7

4425577

Isolator

(SUB FOR TH4425577)

1шт.

8

Isolator

( DH400292 AND THDH400292 NLA)

1шт.

9

Isolator

( DH400293 AND THDH400293 NLA)

1шт.

10

Isolator

( DH400294 AND THDH400294 NLA)

1шт.

11

Isolator

( DH400295 AND THDH400295 NLA)

1шт.

12

Isolator

( DH400296 AND THDH400296 NLA)

1шт.

13

19M7662

Cap Screw

M10 X 30

4шт.

14

DH900300

Latch

( 9751797 NLA) (SUB FOR TH9751797)

1шт.

15

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

16

M800051

Pin

(SUB FOR CH10542)

1шт.

17

4609950

Stop

(SUB FOR TH4424157, 4424157)

2шт.

18

DH800073

Bracket

(SUB FOR DH300063)

1шт.

20

19M7550

Cap Screw

M10 X 35

2шт.

21

24M7346

Washer

11 X 20 X 2 mm

2шт.

22

4431357

Stop

(SUB FOR TH4431357)

1шт.

23

19M7177

Cap Screw

M6 X 35

2шт.

24

19M7662

Cap Screw

M10 X 30

4шт.

29

DH700014

Cover

(SUB FOR THDH700014)

1шт.

31

DH700035

Cover

(SUB FOR THDH700035)

1шт.

32

DH700028

Cover

(SUB FOR THDH700028)

1шт.

33

19M7662

Cap Screw

M10 X 30

2шт.

34

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

35

24M7346

Washer

11 X 20 X 2 mm

2шт.

39

12M7066

Lock Washer

10 mm

5шт.

40

24M7028

Washer

10.500 X 20 X 2 mm

5шт.

41

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

42

24M7346

Washer

11 X 20 X 2 mm

4шт.

43

12M7066

Lock Washer

10 mm

2шт.

44

12M7012

Lock Washer

6 mm

2шт.

45

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

46

12M7066

Lock Washer

10 mm

4шт.

47

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

48

Isolator

( DH700015F NLA)

1шт.

49

DH800063

Bracket

1шт.

50

DH800064

Bracket

1шт.
