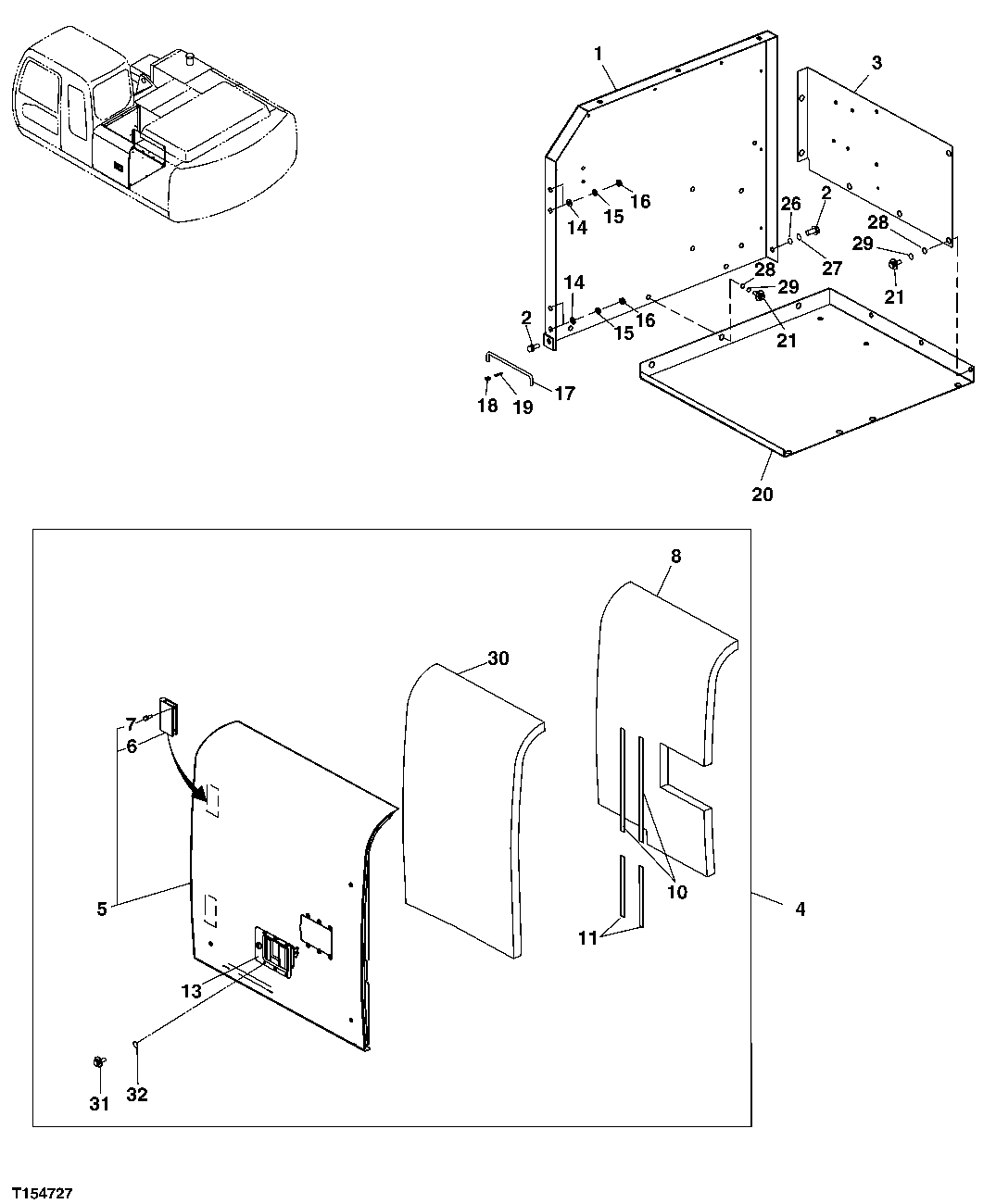

Запчасти John Deere 00CLC 215 - COVER 1910 HOOD OR ENGINE ENCLOSURE

1

7035539

Cover

(SUB FOR TH7035539)

1шт.

2

19M7662

Cap Screw

M10 X 30

2шт.

3

8081829

Cover

(SUB FOR TH8081829)

1шт.

4

DH700042J

Door

1шт.

5

Door

( DH500020J NLA)

1шт.

6

Hinge

( TH3072015 NLA)

2шт.

7

19M7402

Cap Screw

M10 X 25

4шт.

8

4412572

Isolator

(SUB FOR TH4412572)

1шт.

9

DH400331

Isolator

(SUB FOR THDH400331)

1шт.

10

DH400348

Isolator

(SUB FOR THDH400348)

2шт.

11

DH400349

Isolator

(SUB FOR THDH400349)

2шт.

12

DH400332

Isolator

(SUB FOR THDH400332)

1шт.

13

DH400030

Latch

(SUB FOR THDH400030)

1шт.

14

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

15

12M7066

Lock Washer

10 mm

4шт.

16

14M7274

Nut

M10

4шт.

17

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

18

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

19

H132922

Cotter Pin

1шт.

20

7035543

Cover

(SUB FOR TH7035543)

1шт.

21

19M7662

Cap Screw

M10 X 30

6шт.

26

12M7066

Lock Washer

10 mm

2шт.

27

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

28

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

29

24M7346

Washer

11 X 20 X 2 mm

6шт.
