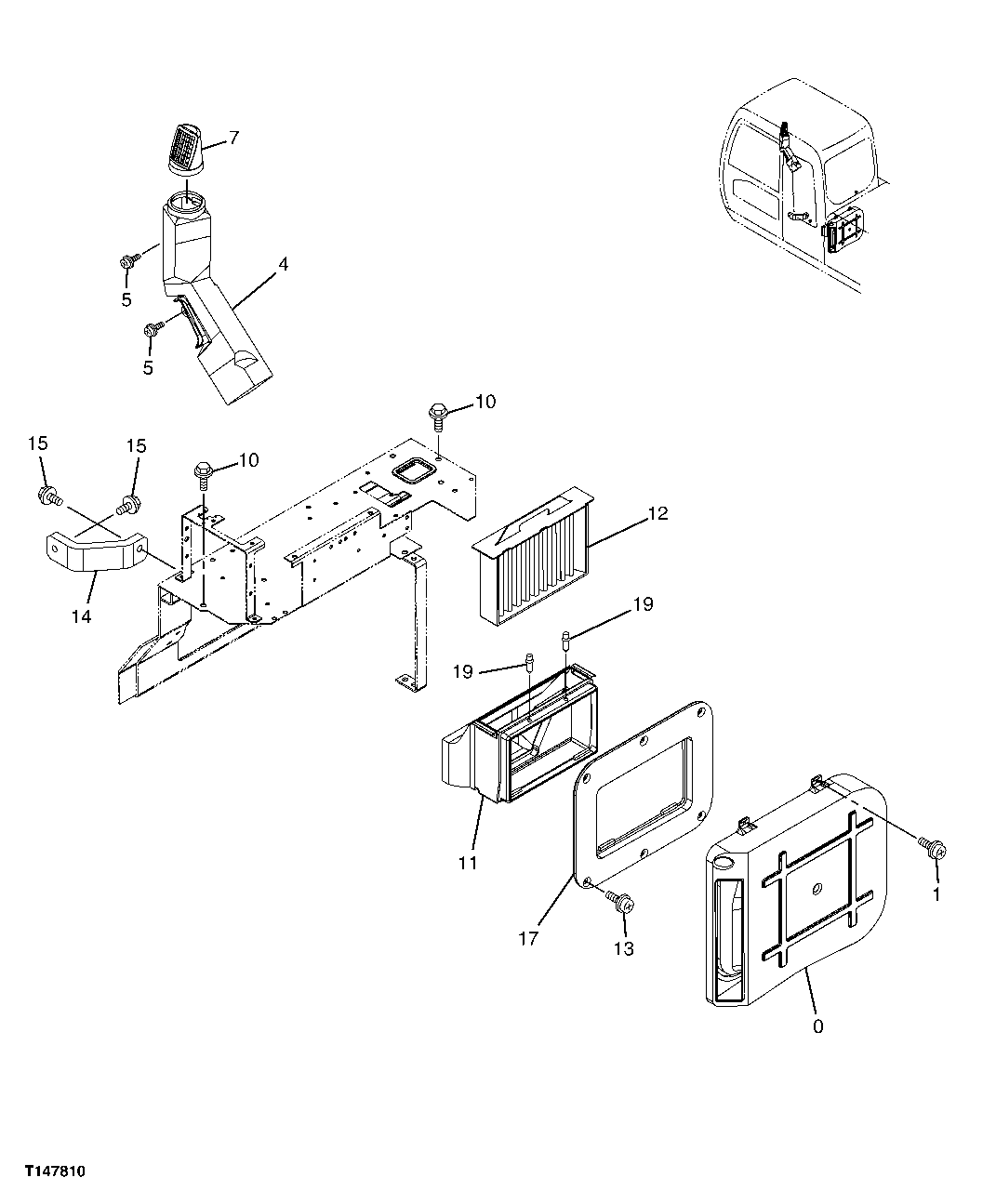

Запчасти John Deere 00CLC 211 - AIR CONDITIONER DUCT AND FILTER 1830 HEATING AND AIR CONDITIONING

0

4426160

Air Duct

P68233 NLA

1шт.

1

19M8425

Cap Screw

M6 X 16

6шт.

12M7006

Lock Washer

6 mm

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

4

4426159

Air Duct

1шт.

4653923

Grille

(NOT ILLUSTRATED)

1шт.

5

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

7

4449068

Air Duct

1шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

11

4426161

Air Duct

SUB FOR TH4426161

1шт.

12

4S00640R

Air Filter

SUB FOR 4S00640, AT213943 OR 4350249

1шт.

13

19M8425

Cap Screw

M6 X 16

6шт.

12M7006

Lock Washer

6 mm

6шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.

14

P68229

Support

1шт.

15

19M7572

Cap Screw

M10 X 45 SUB FOR AT200010 OR J031 045, USE WITH 12M7066 AND 24M7296

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

2шт.

17

4449348

Air Duct

1шт.

19

4445916

Clip

SUB FOR FFSB110372

2шт.
