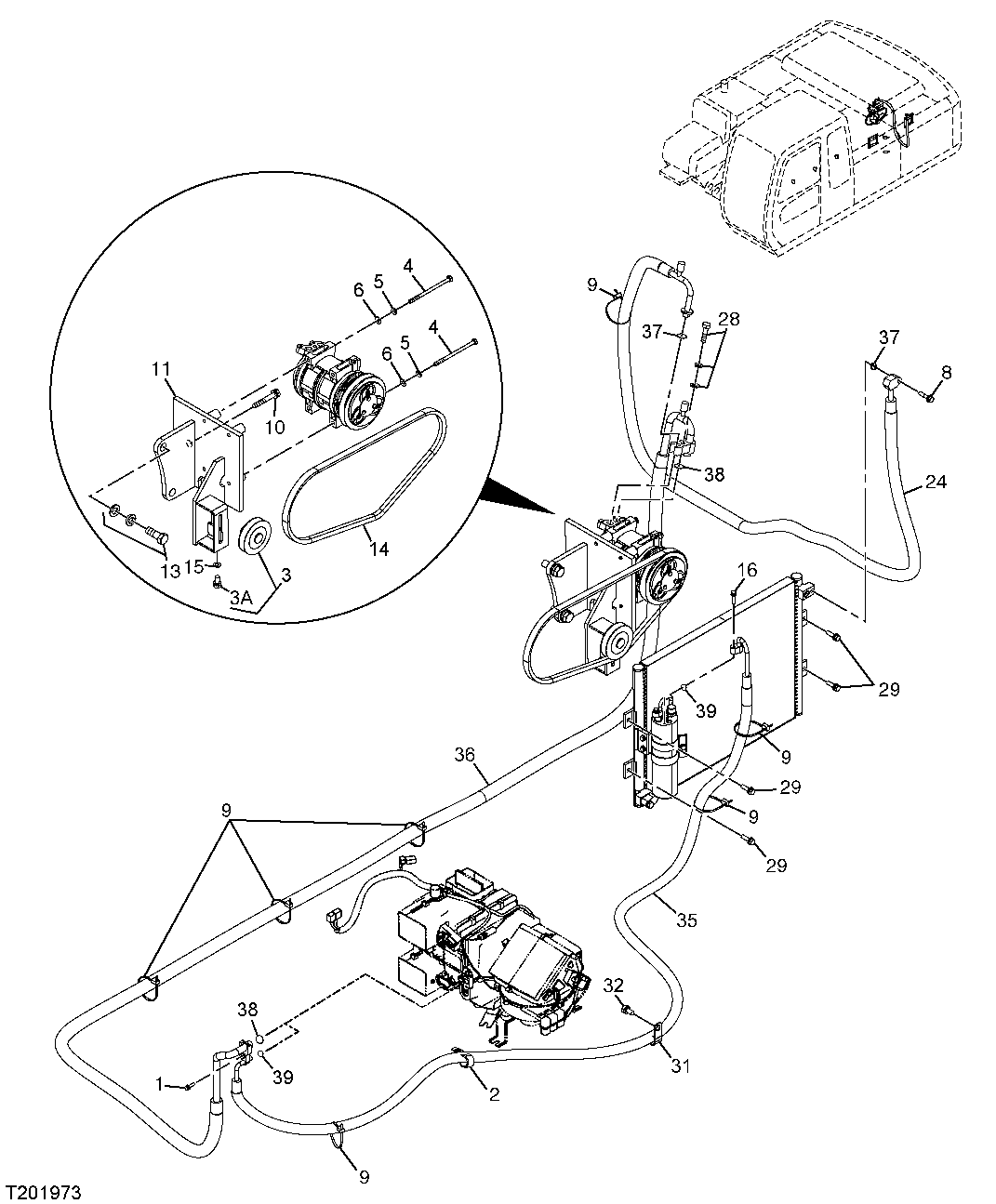

Запчасти John Deere 00CLC 208 - AIR CONDITIONER REFRIGERANT HOSES AND COMPRESSOR DRIVE BELT 1830 HEATING AND AIR CONDITIONING

1

19M7933

Cap Screw

M6 X 25 SUB FOR 19M7286

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12M7006

Lock Washer

6 mm

1шт.

2

T24432

Clamp

1шт.

3

4346770

Pulley

SUB FOR AT213915

1шт.

3A

4451204

Bolt

1шт.

4

19M8404

Cap Screw

M8 X 130

4шт.

5

Washer

12M7065 NLA

4шт.

6

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

8

19M8008

Cap Screw

M8 X 35

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

Washer

12M7065 NLA

1шт.

9

H77698

Tie Band

8шт.

10

THM111060

Bolt

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

11

DH700012

Bracket

SUB FOR THDH700012

1шт.

13

T116333

Bolt

SUB FOR THM111030

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

14

DH400223

V-Belt

SUB FOR THDH400223

1шт.

15

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

16

19M7874

Cap Screw

M6 X 30

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

12H302

Lock Washer

1/4"

1шт.

24

4448284

Refrigerant Hose

Compressor To Condenser SUB FOR DH400220

1шт.

4370247

Cap

For Recharging Air Conditi oner System Not Illustrated

1шт.

28

19M8260

Cap Screw

M10 X 40

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

29

19M7139

Cap Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

31

T24432

Clamp

1шт.

32

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

35

4448285

Refrigerant Hose

Condenser To Air Conditioner Unit

1шт.

36

4448286

Refrigerant Hose

Air Conditioner Unit To Compressor

1шт.

4370251

Cap

For Recharging Air Conditi oner System Not Illustrated

1шт.

37

4421946

O-Ring

2шт.

38

4421939

O-Ring

2шт.

39

4422000

O-Ring

2шт.
