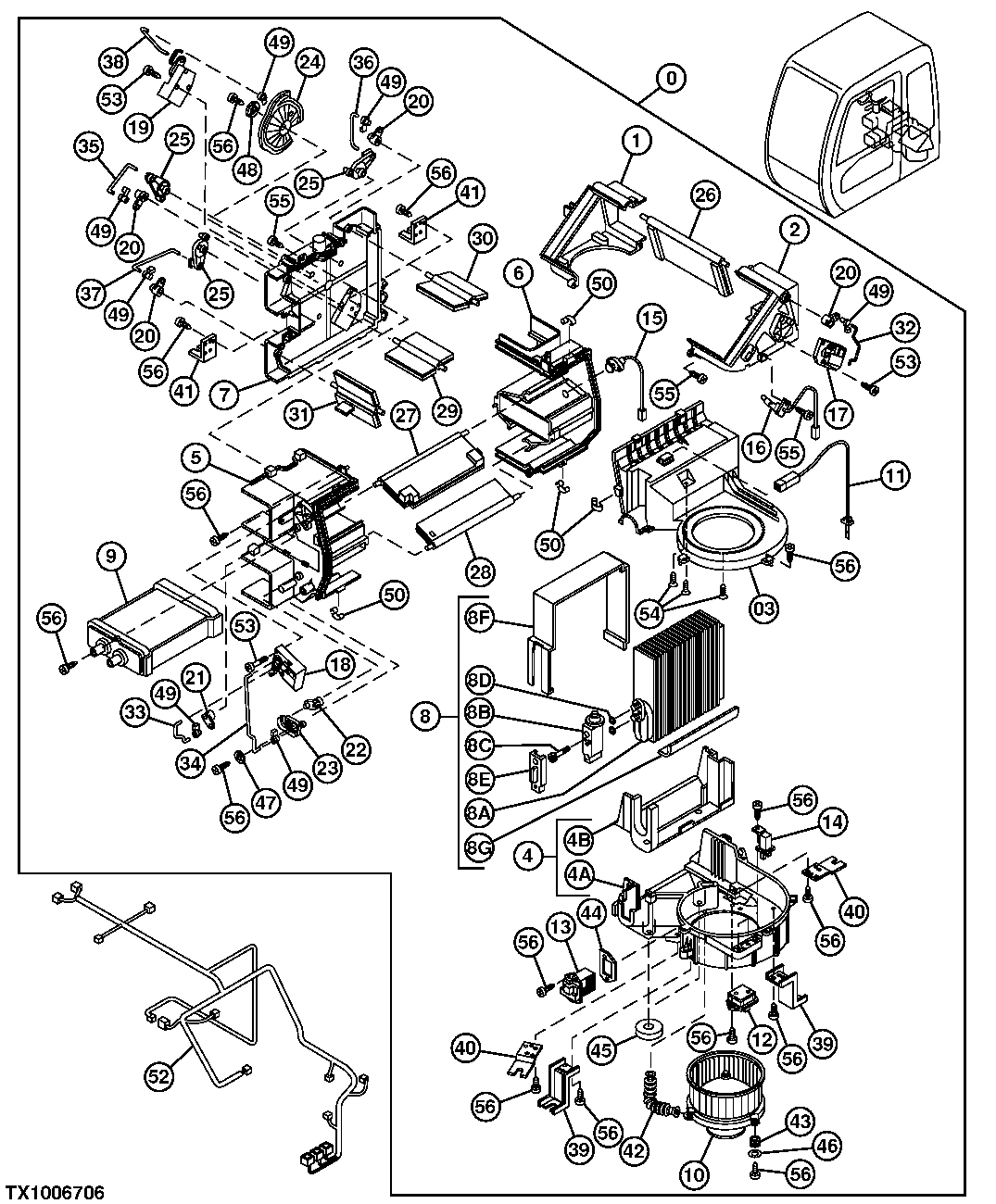

Запчасти John Deere 00CLC 207 - AIR CONDITIONER AND HEATER COMPONENTS 1830 HEATING AND AIR CONDITIONING

0

4609049

Air Conditioner

(SUB FOR TH4450707, 4450707, TH44260 47 OR 4426047 ) (ALSO ORDER 4464479)

1шт.

1

4464341

Case

(SUB FOR TH4464341)

1шт.

2

4464342

Case

(SUB FOR TH4464342)

1шт.

3

4464343

Case

(SUB FOR TH4464343)

1шт.

4

Case

( 4464344 NLA) (SUB FOR TH4464344)

1шт.

4A

4464345

Case

1шт.

4B

4464346

Lining

1шт.

5

4464347

Case

(SUB FOR TH4464347)

1шт.

6

4464349

Case

(SUB FOR TH4464349)

1шт.

7

4464350

Case

(SUB FOR TH4464350)

1шт.

8

4464352

Evaporator

(SUB FOR TH4464352)

1шт.

8A

4464353

Evaporator

1шт.

8B

4464354

Flow Control Hyd. Valve

(SUB FOR TH4464354)

1шт.

8C

4464355

Bolt

(SUB FOR TH4464355)

2шт.

8D

4370249

O-Ring

2шт.

8E

4464356

Cap

(SUB FOR TH4464356)

1шт.

8F

Isolator

TH4464357 NLA)

1шт.

8G

Plate

TH4464274 NLA)

1шт.

9

4464275

Heater

(SUB FOR TH4464275)

1шт.

10

4464276

Electric Motor

Machines Built Before November 2005 With Pigtail Harness (USE WITH 4610412) (SUB FO R TH4464276 ) (USE WITH TH4450707, 4450707 , TH4426047 OR 4426047) (USE WITH 4464479)

1шт.

4370266

Electric Motor

Machines Built November 2005 and After Wi thout Pigtail Harness (USE WITHOUT 4610412 ) (USE WITH 4609049) (USE WITHOUT 4464479)

1шт.

11

4464277

Switch

(SUB FOR TH4464277)

1шт.

12

4464278

Resistor

(SUB FOR TH4464278)

1шт.

13

4464279

Transistor

(SUB FOR TH4464279)

1шт.

14

4370269

Relay

3шт.

15

4464280

Sensor

(SUB FOR TH4464280)

1шт.

16

4448925

Sensor

(SUB FOR TH4448925)

1шт.

17

4464281

Electric Motor

(SUB FOR TH4464281)

1шт.

18

4464282

Electric Motor

(SUB FOR TH4464282)

1шт.

19

4464283

Electric Motor

(SUB FOR TH4464283)

1шт.

20

4464284

Lever

(SUB FOR TH4464284)

4шт.

21

4464285

Lever

(SUB FOR TH4464285)

1шт.

22

4464286

Lever

(SUB FOR TH4464286)

1шт.

23

4464287

Lever

(SUB FOR TH4464287)

1шт.

24

4464288

Lever

(SUB FOR TH4464288)

1шт.

25

4464450

Lever

(SUB FOR TH4464450)

3шт.

26

4464451

Door

(SUB FOR TH4464451)

1шт.

27

4464452

Door

(SUB FOR TH4464452)

1шт.

28

4464453

Door

(SUB FOR TH4464453)

1шт.

29

4464454

Door

(SUB FOR TH4464454)

1шт.

30

4464455

Door

(SUB FOR TH4464455)

1шт.

31

4464456

Door

(SUB FOR TH4464456)

1шт.

32

4464457

Rod

(SUB FOR TH4464457)

1шт.

33

4464458

Rod

(SUB FOR TH4464458)

1шт.

34

4464459

Rod

(SUB FOR TH4464459)

2шт.

35

4464460

Rod

(SUB FOR TH4464460)

1шт.

36

4464461

Rod

(SUB FOR TH4464461)

1шт.

37

4464462

Rod

(SUB FOR TH4464462)

1шт.

38

4464463

Rod

(SUB FOR TH4464463)

1шт.

39

4370296

Bracket

2шт.

40

4464465

Bracket

(SUB FOR TH4464465)

2шт.

41

4464466

Bracket

(SUB FOR TH4464466)

2шт.

42

4464473

Hose

(SUB FOR TH4464473)

1шт.

43

4370267

Isolator

(SUB FOR AT214213)

3шт.

44

4464474

Seal

(SUB FOR TH4464474)

1шт.

45

4464475

Isolator

(SUB FOR TH4464475)

2шт.

46

4370299

Washer

(SUB FOR AT214245)

3шт.

47

4464476

Washer

(SUB FOR TH4464476)

1шт.

48

4370298

Washer

1шт.

49

4464477

Clip

(SUB FOR TH4464477)

7шт.

50

4464478

Clip

(SUB FOR TH4464478)

12шт.

52

4464479

Wiring Harness

Machines Built Before November 2005 (N LA) (ORDER 4610412) (SUB FOR TH4464479)

1шт.

4610412

Wiring Harness

Machines Built November 2005 and After

1шт.

53

4370308

Screw

9шт.

54

4464480

Screw

(SUB FOR TH4464480)

5шт.

55

4370309

Screw

17шт.

56

4464483

Screw

(SUB FOR TH4464483)

32шт.
