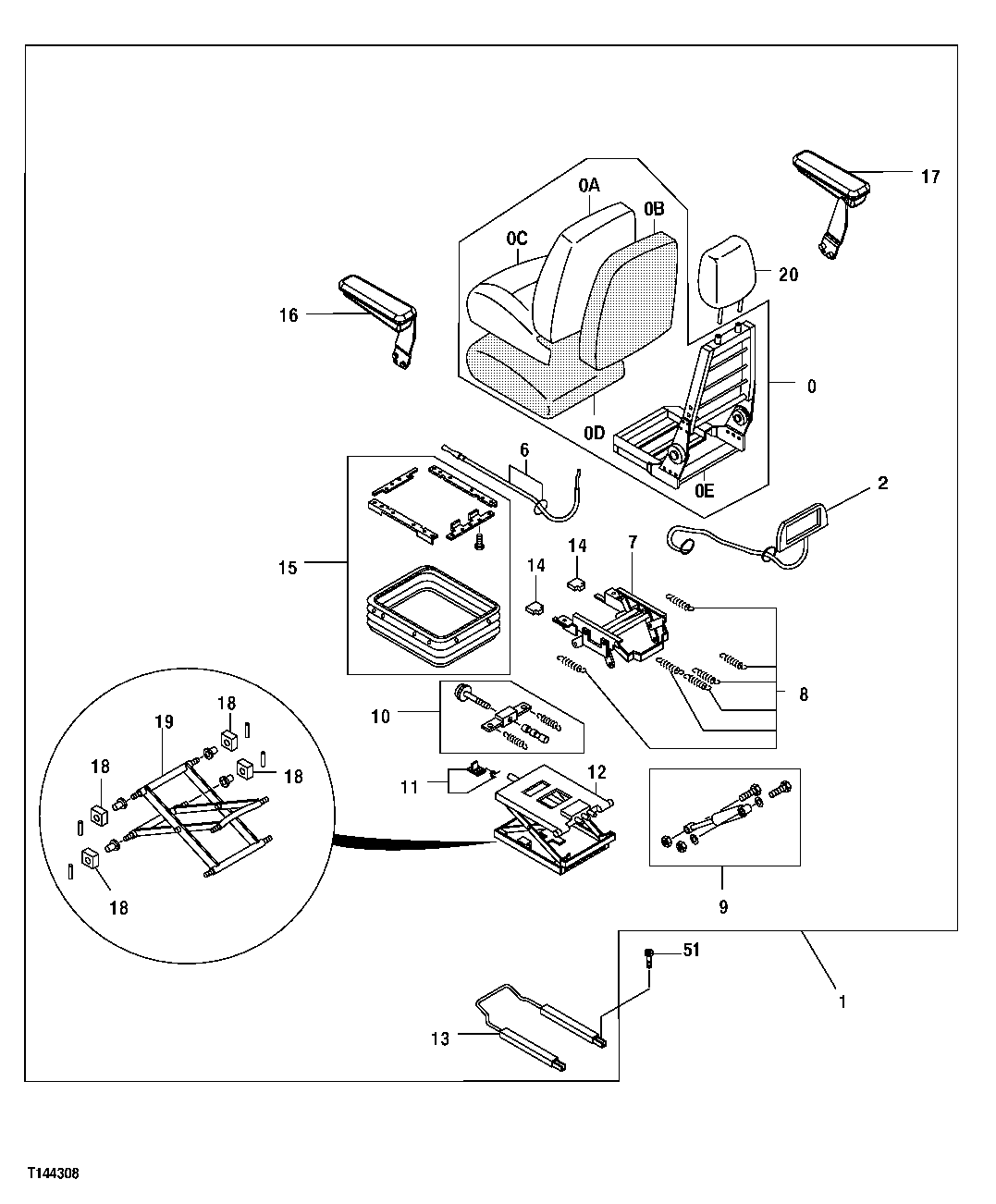

Запчасти John Deere 00CLC 201 - SEAT AND SEAT SUSPENSION ASSEMBLY 1821 SEAT AND SEAT BELTS

0

4486189R

Seat

Seat Upper Kit SUB FOR AT195286

1шт.

0A

4486190R

Cushion Cover

SUB FOR AT309263

1шт.

0B

4392796R

Pad

SUB FOR AT309264

1шт.

0C

AT403886

Cushion Cover

Fabric SUB FOR AT195278 AND 4486191R

1шт.

0D

4392798R

Pad

SUB FOR AT195279

1шт.

0E

Frame

1шт.

1

4458290R

Seat

Fabric SUB FOR AT193964

1шт.

2

AT195284

Seat Kit

Air Lumbar Kit

1шт.

6

4392800R

Cable

SUB FOR AT216522

1шт.

7

4392801R

Stand

(SUB FOR AT180971 OR 43 92801)RECLINER CABLE KIT

1шт.

8

4370199R

Spring

SUB FOR AT195287

1шт.

9

4392803R

Torsional Damper

Kit SUB FOR 4392803 OR AT180973

1шт.

10

4392804R

Adjuster

(SUB FOR AT180974 OR 439 2804)HEIGHT RISER SPRING

1шт.

11

4392805R

Stop

SUB FOR AT180975, 4392805 OR AT322189

1шт.

12

4392806R

Seat Suspension

SUB FOR AT180976 OR 4392806

1шт.

13

4660734R

Adjuster

SUB FOR AT180977, 43928 07, 4392807R OR 4660734

1шт.

14

AT216532

Seat Knob Kit

1шт.

15

4392809R

Cover

(SUB FOR AT180978 OR 4392 809)(SUSPENSION COVER KIT)

1шт.

16

AT329375

Armrest Kit

(SUB FOR AT195282 AND AT199748)LH

1шт.

17

AT329376

Armrest Kit

(SUB FOR AT195283 AND AT199749)RH

1шт.

18

4392812R

Bushing

Kit SUB FOR AT180979 OR 4392812

1шт.

19

AT180980

Link

Lever/Center Pivot Kit

1шт.

20

4486192R

Head Restraint

SUB FOR AT195280 OR 4392813

1шт.

51

19M7647

Screw

M8 X 16 SUB FOR AT217709

4шт.
