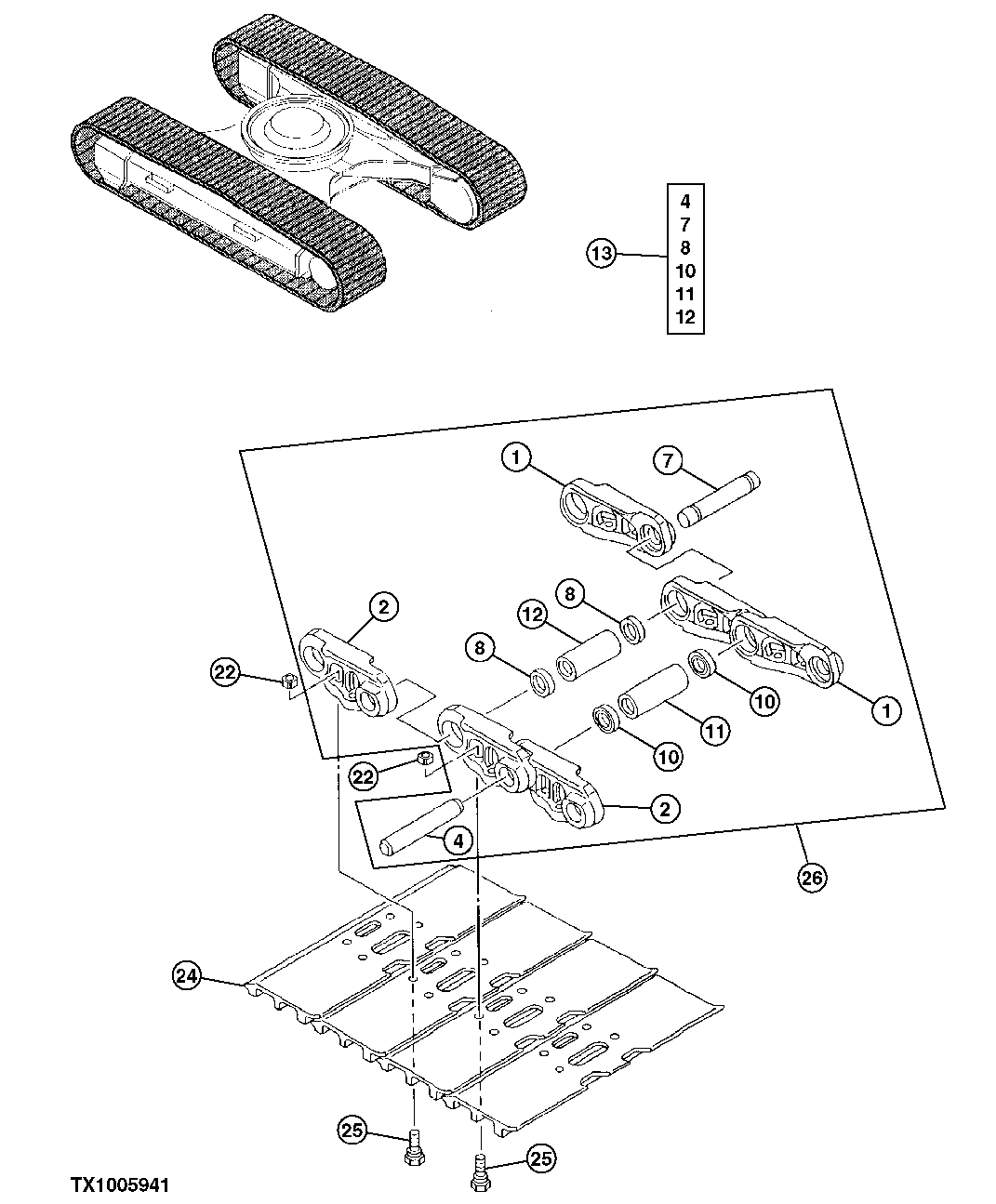

Запчасти John Deere 00CLC 9 - Track Chains, Press in Master ( - 504272) 0130 Track Systems

1

AT180025

Link

49шт.

2

AT180027

Link

49шт.

4

AT180030

Pin Fastener

37.720 X 212 mm (1.485" X 8.346") A LSO ORDER (1) AT219471 AND AT219468

1шт.

7

AT180028

Pin Fastener

48шт.

8

AT180029

Seal

Dual Spring Washer

188шт.

AT186161

Seal

M Seal

94шт.

10

Bushing

Master FFSB13386 NLA, SUB AT219471

2шт.

AT219471

Spacer

Master ALSO ORDER AT180030 AND AT219468

2шт.

11

Bushing

Master FFSB113387 NLA, SUB AT219468

1шт.

AT219468

Bushing

ALSO ORDER (2) AT219471 AND AT180030

1шт.

12

Bushing

AT180032 NLA, ORDER AT186162

48шт.

AT186162

Bushing

ALSO ORDER (2) AT186161 Use With M Seal

48шт.

13

AT187185

Pin & Bushing Kit

1шт.

22

AT180048

Nut

Each Side Of Unit

196шт.

24

AT180034

Open Center 3 Bar Shoe

600 mm, Each Side Of Unit

49шт.

AT180035

Open Center 3 Bar Shoe

700 mm, Each Side Of Unit

49шт.

AT219470

Open Center 3 Bar Shoe

800 mm, Each Side Of Unit

49шт.

25

AT180036

Track Bolt

Each Side Of Unit

196шт.

26

Track Chain W/O Shoes

Quantity of 1 Each Side of Unit AT219478 NLA, SUB (2) AT311612

2шт.
