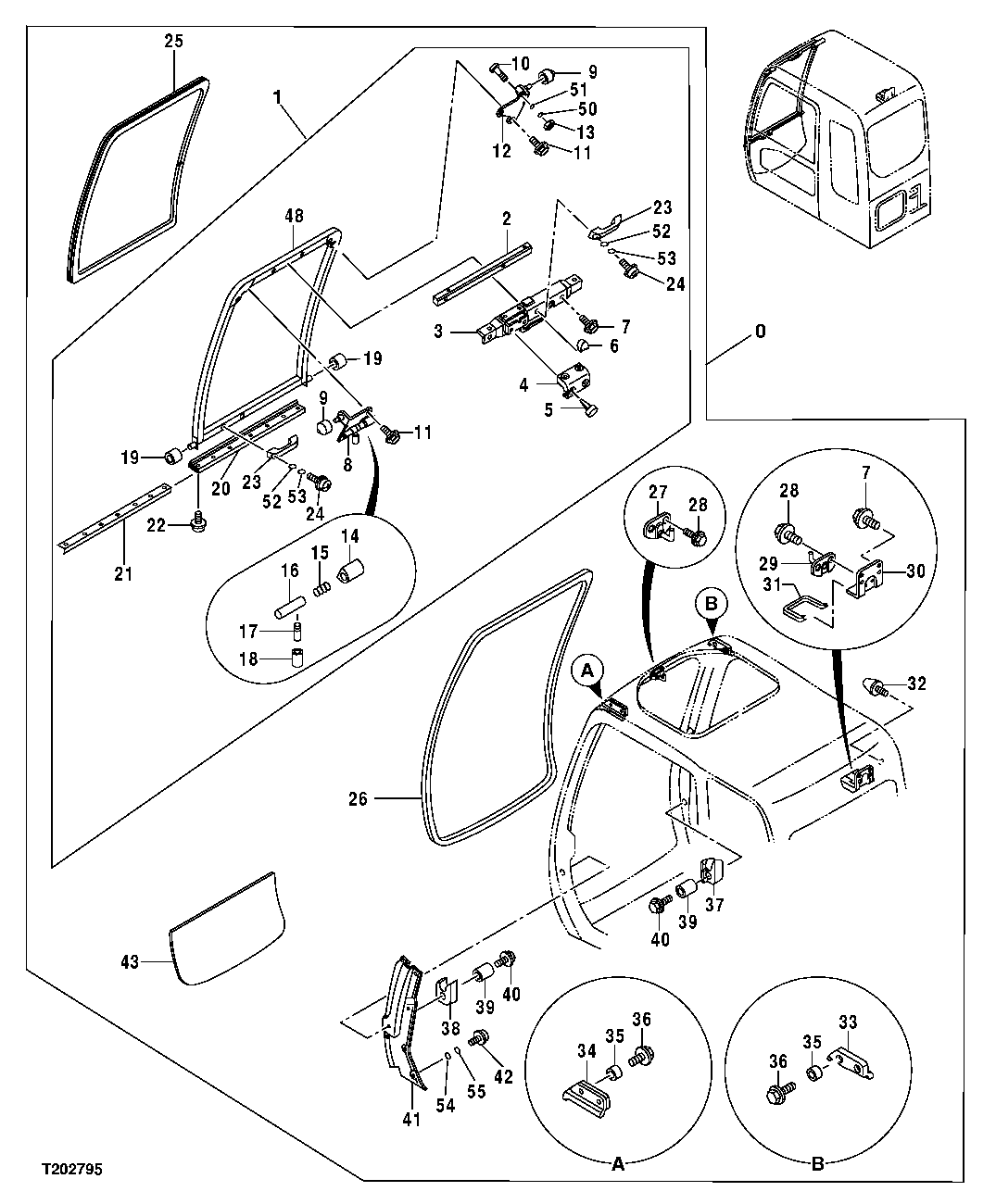

Запчасти John Deere 00CLC 186 - CAB WINDSHIELD 1810 OPERATOR ENCLOSURE

25

4448306

Windowpane

Bronze (SUB FOR 4474531)

1шт.

4602562

Windowpane

Green

1шт.

26

4456230

Isolator

(SUB FOR TH4456230)

1шт.

27

4456231

Striker

(SUB FOR TH4456231)

1шт.

28

4372210

Screw With Washer

(SUB FOR AT214297)

4шт.

29

4456232

Striker

(SUB FOR TH4456232)

1шт.

30

4456233

Bracket

(SUB FOR TH4456233)

1шт.

31

4456234

Isolator

(SUB FOR TH4456234)

1шт.

32

4204586

Bumper

(SUB FOR TH108668)

1шт.

33

4456235

Isolator

(SUB FOR TH4456235)

1шт.

34

4456236

Isolator

(SUB FOR TH4456236)

1шт.

35

4456237

Bushing

(SUB FOR TH4456237)

4шт.

36

4456238

Bolt

(SUB FOR TH4456238)

4шт.

37

4456239

Stop

(SUB FOR TH4456239)

1шт.

38

4456240

Stop

(SUB FOR TH4456240)

1шт.

39

4456241

Bushing

(SUB FOR TH4456241)

2шт.

40

4456242

Bolt

(SUB FOR TH4456242)

2шт.

41

4474532

Cover

1шт.

42

21M7246

Screw

M6 X 16

6шт.

43

Windowpane

Bronze (SUB FOR TH4448307 ) (SUB 4602563R ( 4448307 NLA))

1шт.

4602563R

Windowpane

Green (SUB FOR 4602563)

1шт.

48

4456217

Frame

1шт.

50

12M7068

Lock Washer

14 mm

1шт.

51

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

52

12M7006

Lock Washer

6 mm

4шт.

53

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

54

12M7006

Lock Washer

6 mm

6шт.

55

24M7293

Washer

6.500 X 13 X 1.600 mm

6шт.
