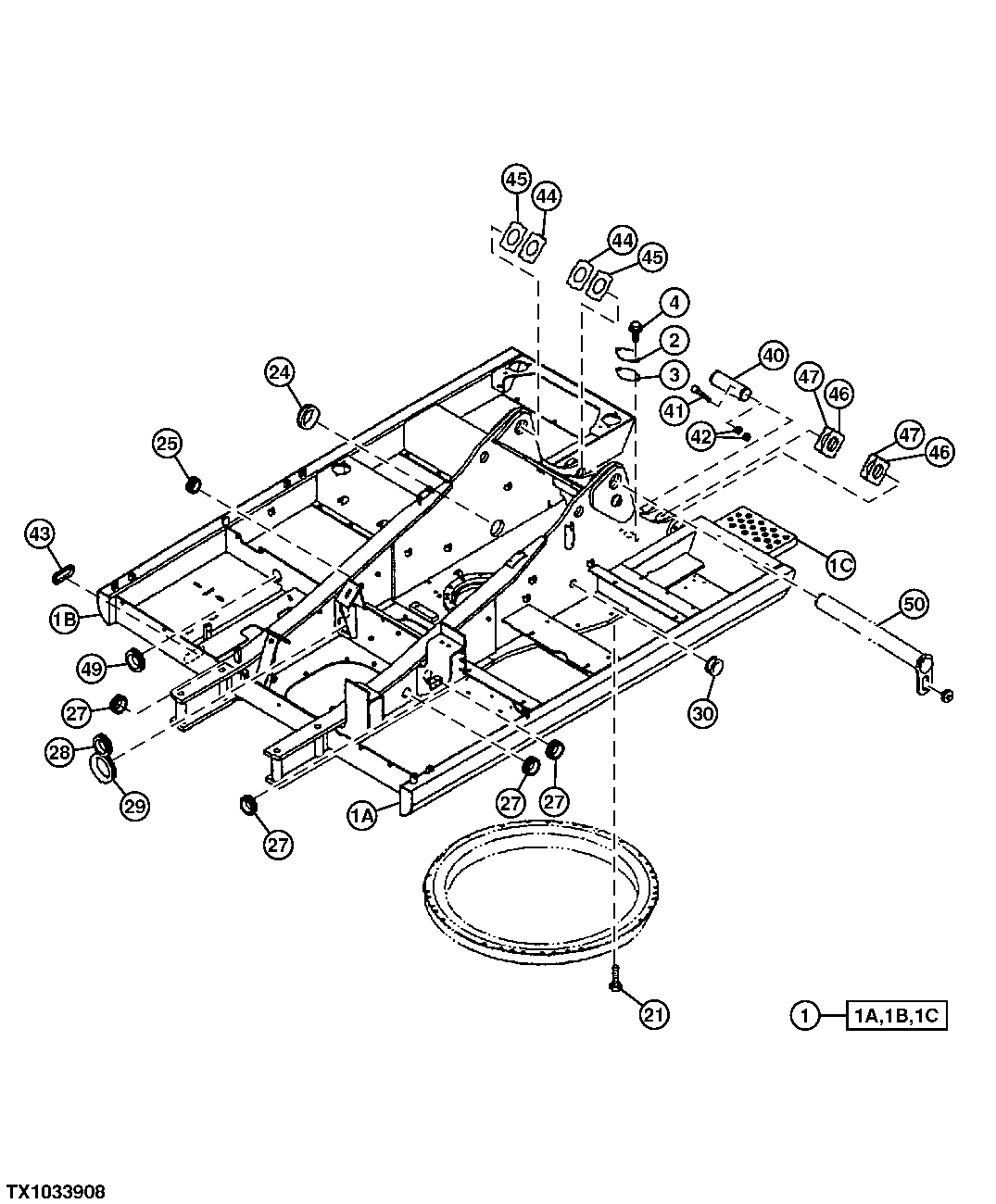

Запчасти John Deere 00CLC 173 - MAIN FRAME 1740 FRAME INSTALLATION

1

DH500008

Frame

(SUB FOR THDH500008)

1шт.

1A

3084008

Frame

RH

1шт.

1B

3084009

Frame

LH

1шт.

1C

3084653

Step

1шт.

2

4255799

Cover

(SUB FOR AT154929)

1шт.

3

4161735

Gasket

(SUB FOR AT130379)

1шт.

4

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19M7402

Cap Screw

M10 X 25

2шт.

21

J922095

Cap Screw

(SUB FOR AT213621)

32шт.

24

4191977

Grommet

(SUB FOR TH109399)

1шт.

25

4201995

Grommet

1шт.

27

4201749

Grommet

(SUB FOR TH108205)

4шт.

28

4208279

Grommet

(SUB FOR AT131854)

1шт.

29

4201986

Grommet

(SUB FOR AT217099, 4345810)

3шт.

30

4257181

Grommet

(SUB FOR AT155274)

1шт.

40

AT318060

Pin Fastener

(SUB FOR 3088573, TH3088573)

2шт.

41

4435129

Pin Fastener

(SUB FOR TH4435129)

2шт.

42

14M7276

Nut

M16

4шт.

43

4430658

Bushing

1шт.

44

4470743

Thrust Washer

(SUB FOR 4444284)

2шт.

45

4444285

Thrust Washer

(SUB FOR TH4444285)(2.0)

2шт.

46

4444286

Thrust Washer

(SUB FOR TH4444286)(1.0)

4шт.

47

4444287

Thrust Washer

(SUB FOR TH4444287)(2.0)

4шт.

49

4255567

Bushing

(SUB FOR AT155271, 4255530)

2шт.

50

Pin Fastener

(SEE FOLLOWING PAGE FOR DETAIL)

1шт.
