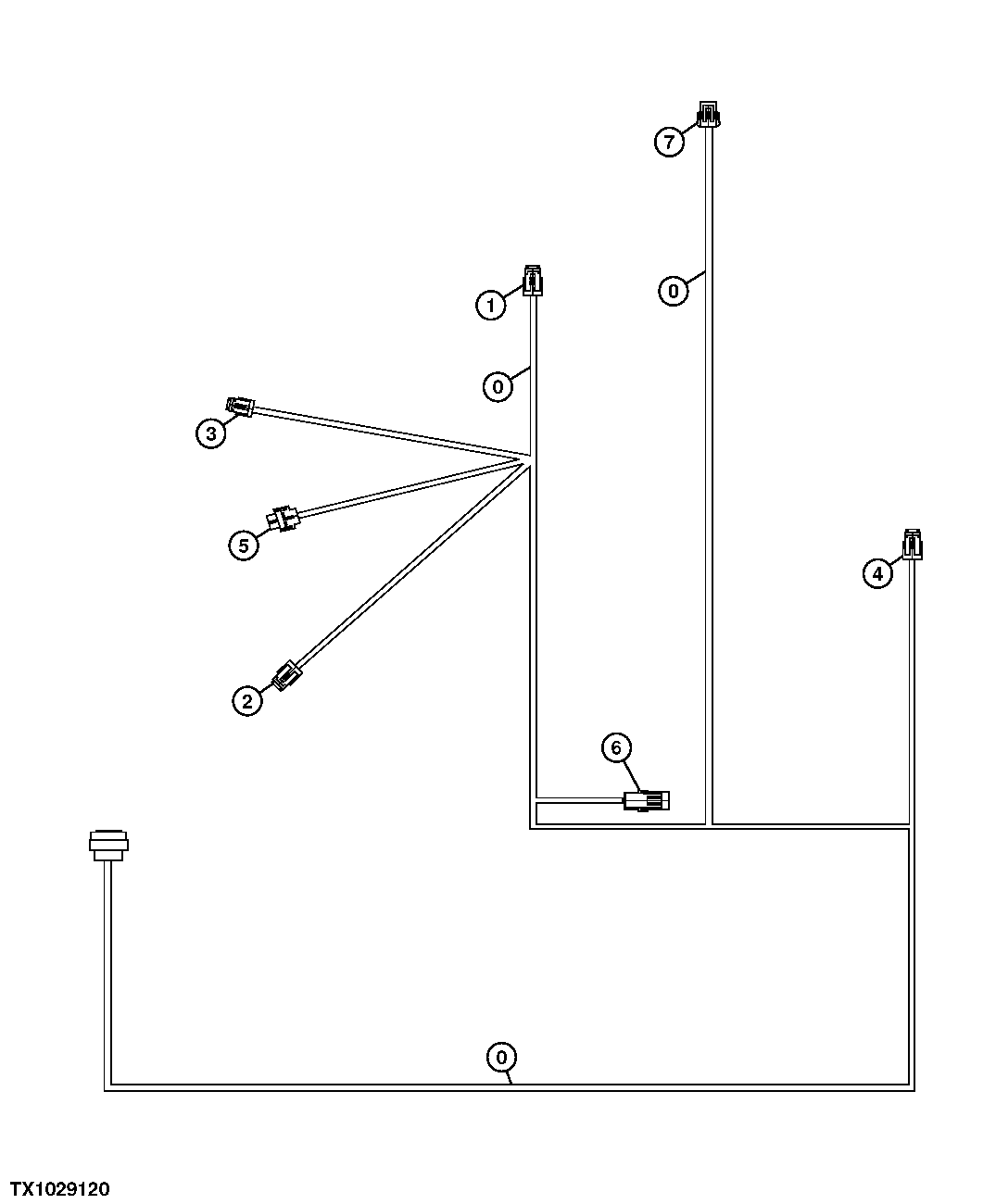

Запчасти John Deere 00CLC 168 - ENGINE WIRING HARNESS AND CONNECTORS (SN 504001- ) 1674 WIRING HARNESS AND SWITCHES
№
Артикул
Название
Примечание
Количество
0
AT199498
Wiring Harness
Engine
1шт.
1
57M7278
Elec. Connector Housing
Engine Timing (Crank)
1шт.
57M7829
Elec. Connector Terminal
2шт.
2
57M7278
Elec. Connector Housing
Fuel Temperature
1шт.
57M7829
Elec. Connector Terminal
2шт.
3
57M7278
Elec. Connector Housing
Coolant Temperature
1шт.
57M7829
Elec. Connector Terminal
2шт.
4
57M7278
Elec. Connector Housing
Inlet Air Temperature
1шт.
57M7829
Elec. Connector Terminal
2шт.
5
57M7344
Elec. Connector Housing
Injection Pump
1шт.
57M8259
Elec. Connector Terminal
2шт.
R78059
Electrical Connector Assy
1шт.
R78064
Elec. Connector Cavity Plug
1шт.
6
R78053
Electrical Connector Assy
Engine Temperature Switch
1шт.
7
57M7309
Elec. Connector Housing
Fuel Heater
1шт.
Выбрано товаров: 15
