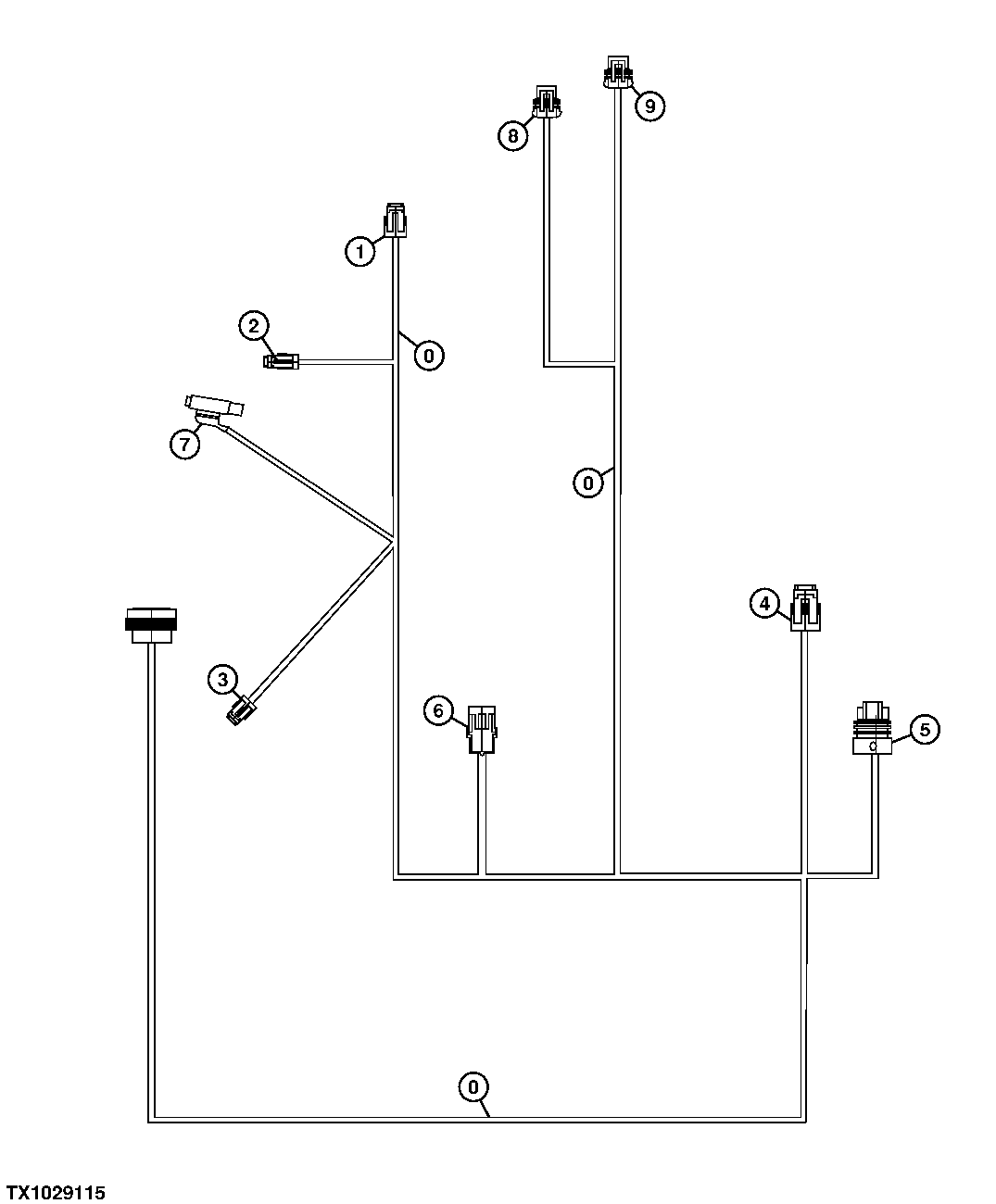

Запчасти John Deere 00CLC 167 - ENGINE WIRING HARNESS AND CONNECTORS (SN -504000) 1674 WIRING HARNESS AND SWITCHES

0

AT191027

Wiring Harness

Engine

1шт.

1

57M7278

Elec. Connector Housing

Engine Timing (Crank)

1шт.

57M7829

Elec. Connector Terminal

2шт.

2

57M7278

Elec. Connector Housing

Engine Position (Cam)

1шт.

57M7829

Elec. Connector Terminal

2шт.

3

57M7278

Elec. Connector Housing

Coolant Temperature

1шт.

57M7829

Elec. Connector Terminal

2шт.

4

57M7278

Elec. Connector Housing

Inlet Air Temperature

1шт.

57M7829

Elec. Connector Terminal

2шт.

5

57M7796

Elec. Connector Housing

Fuel Pressure Sensor

1шт.

R104701

Elec. Connector Terminal

3шт.

6

R78053

Electrical Connector Assy

Engine Temperature Switch

1шт.

7

57M7946

Elec. Connector Housing

Injection Pump

1шт.

8

57M7309

Elec. Connector Housing

Fuel Heater

1шт.

9

57M8161

Elec. Connector Housing

Fuel Transfer Pump

1шт.

57M8892

Elec. Connector Terminal

2шт.

57M9216

Elec. Connector Seal

1шт.

57M8162

Electrical Connector Assy

1шт.
