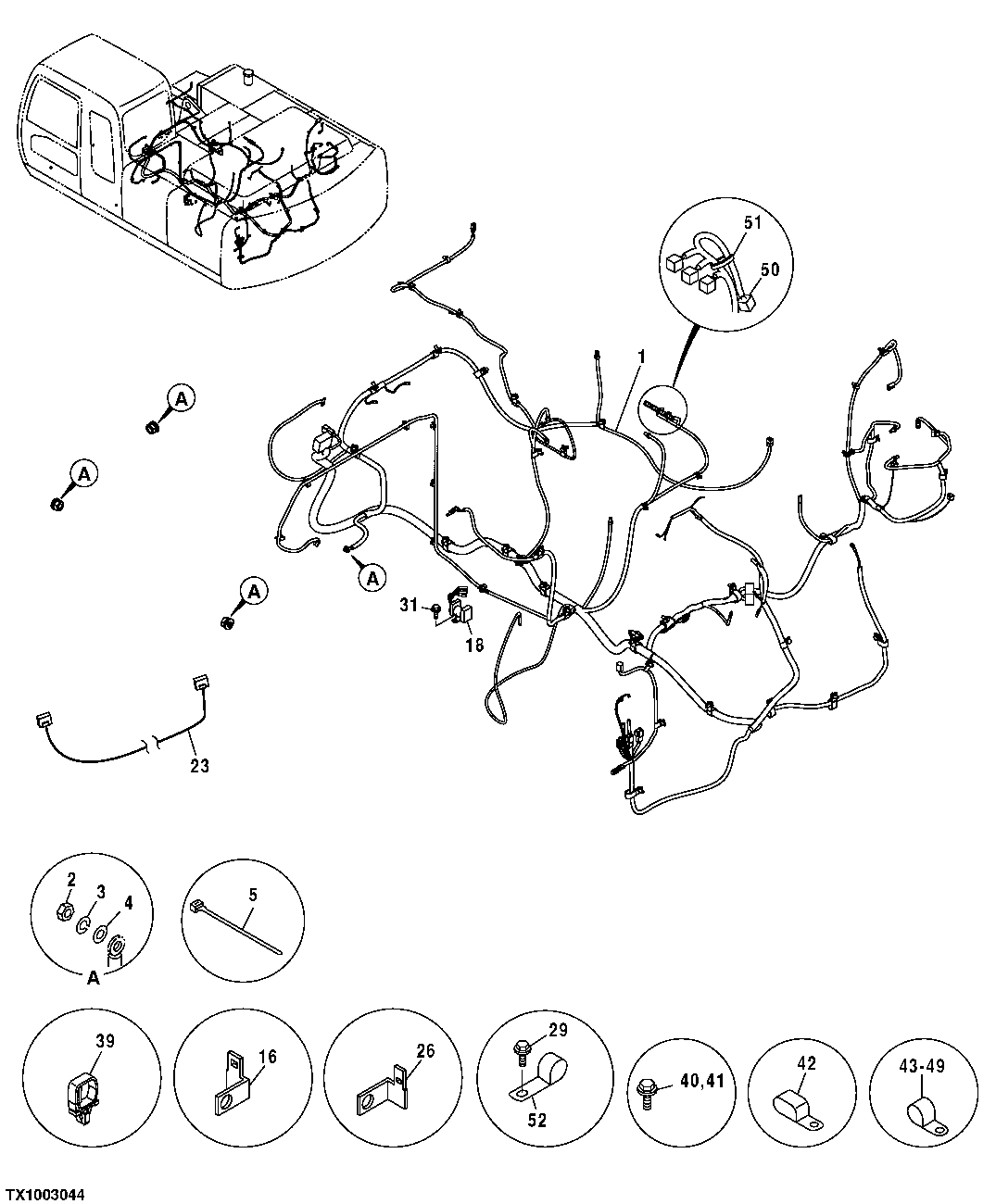

Запчасти John Deere 00CLC 155 - MAIN WIRING HARNESS 1674 WIRING HARNESS AND SWITCHES

1

Wiring Harness

(ORDER 0004911 AND 4487830) 0004070 NLA (SEE DTAC SOLUTION FOR REPAIR KIT AND CONNECTORS)

1шт.

0004911

Wiring Harness

1шт.

4487830

Wiring Harness

(USE WITH 0004911) TO CONNECT SC SOLE NOID TO MAIN HARNESS (NOT ILLUSTRATED)

1шт.

1A

4270554

Fuse

(SUB FOR AT160982)(FUSIB LE LINK - 40 AMP - GREEN)

2шт.

1B

4287670

Fuse

(SUB FOR AT200499)(FUSIBLE LINK - 60 AMP - YELLOW) (NOT ILLUSTRATED)

1шт.

1C

4315323

Fuse

(SUB FOR AT172435)(FUSIBLE LI NK - 45 AMP) (NOT ILLUSTRATED)

1шт.

1D

4315324

Link

(SUB FOR AT172436)(FUSIBLE LI NK - 75 AMP) (NOT ILLUSTRATED)

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

5

H77698

Tie Band

SUB FOR M88199

13шт.

16

4257159

Bracket

SUB FOR AT154243

1шт.

23

AT303736

Wiring Harness

Without Oil Pan Sensor Jumper Ha rness From Main Harness To Frame

1шт.

26

4418301

Bracket

SUB FOR TH4418301

1шт.

29

12M7006

Lock Washer

6 mm

3шт.

19M8425

Cap Screw

M6 X 16 SUB FOR 19M7560

3шт.

31

19M7932

Cap Screw

M8 X 16

2шт.

Washer

12M7065 NLA

2шт.

39

4449250

Clip

SUB FOR TH4449250

7шт.

40

19M7662

Cap Screw

M10 X 30

1шт.

12M7066

Lock Washer

10 mm

1шт.

41

19M7938

Cap Screw

M10 X 20

25шт.

12M7066

Lock Washer

10 mm

25шт.

42

T32854

Clamp

4шт.

43

4190261

Clip

SUB FOR TH109649

5шт.

44

T28949

Clamp

(SUB FOR TH108460 OR 41 90273)(NOT ILLUSTRATED)

7шт.

45

4190275

Clamp

(SUB FOR TH108598)(NOT ILLUSTRATED)

1шт.

46

R72659

Clamp

(SUB FOR AT122384 OR 42 35654)(NOT ILLUSTRATED)

1шт.

49

AT121321

Hose Clamp

5шт.

52

T78787

Clamp

SUB FOR 4450494; SUB FOR TH4450494

3шт.
