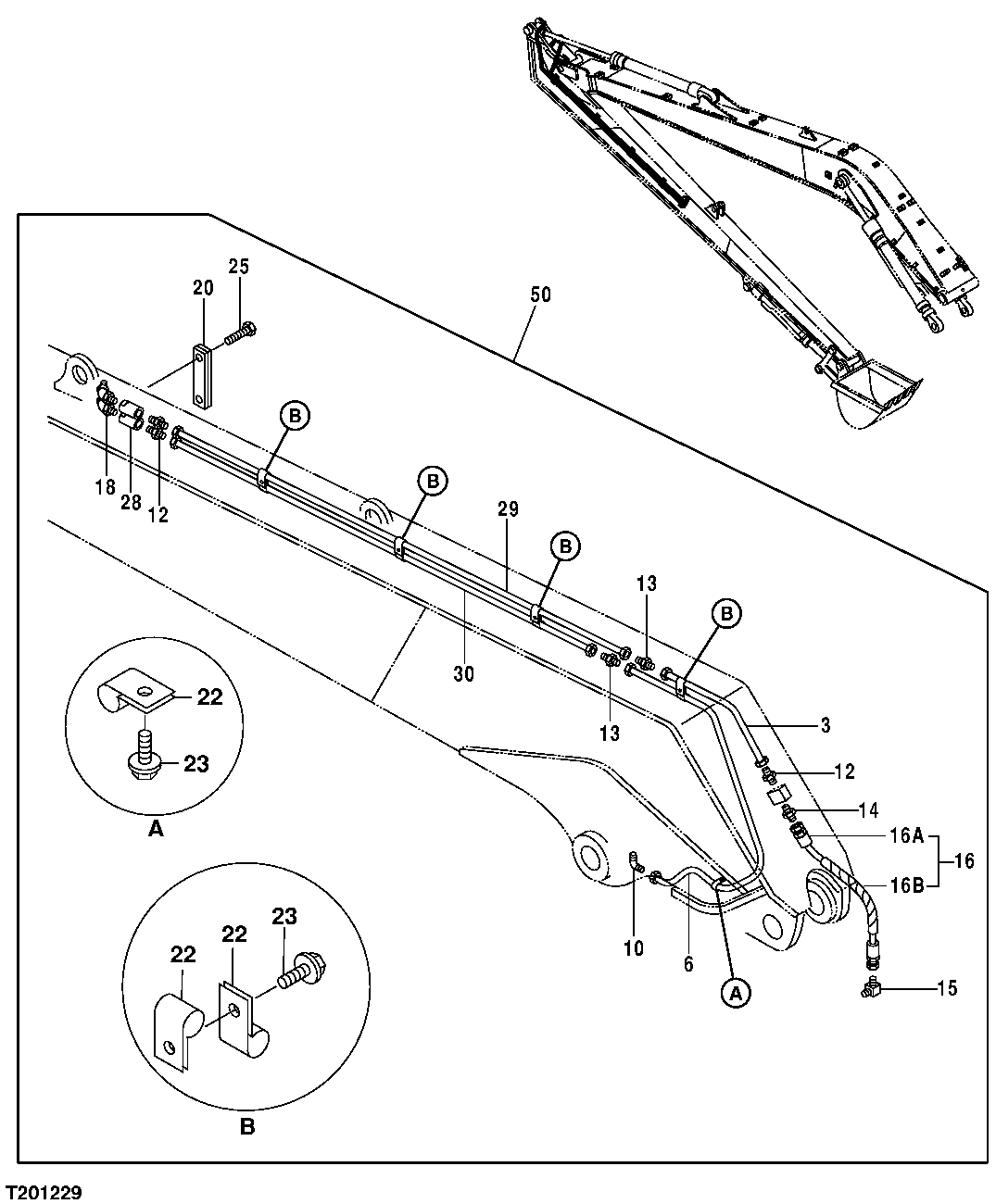

Запчасти John Deere 00CLC 151 - SUPER LONG FRONT ARM CENTRAL LUBRICATION LINES (01NOV04- ) 1370 LUBRICATION SYSTEMS

3

4366387

Tube

1шт.

6

4379416

Tube

1шт.

10

4130174

Fitting

1шт.

12

4130169

Fitting

3шт.

13

Z32962

Fitting

(SUB FOR 4130192)

2шт.

14

4154651

Adapter Fitting

1шт.

15

4154646

Hydraulic Hose

1шт.

16

Hydraulic Hose

( 9114956 NLA) (FURNISH INDIVIDUAL COMPONENTS)

1шт.

16A

AT120788

Hydraulic Hose

(SUB FOR 4213825)

1шт.

16B

4276481

Cover

1шт.

18

T116334

Lubrication Fitting

(SUB FOR J75581)

2шт.

20

4054024

Strap

1шт.

22

M44204

Clamp

(SUB FOR 4000854 OR TH101388)

11шт.

23

19M7923

Cap Screw

M6 X 12 (SUB FOR J010612)

5шт.

12M7006

Lock Washer

6 mm

5шт.

25

19M7358

Cap Screw

M10 X 40 (SUB FOR J901040)

2шт.

28

4060162

Adapter Fitting

2шт.

29

3075310

Tube

1шт.

30

3075311

Tube

1шт.

50

Kit

( AT314801 NLA) Installed On Units November 2004 or Later

1шт.
