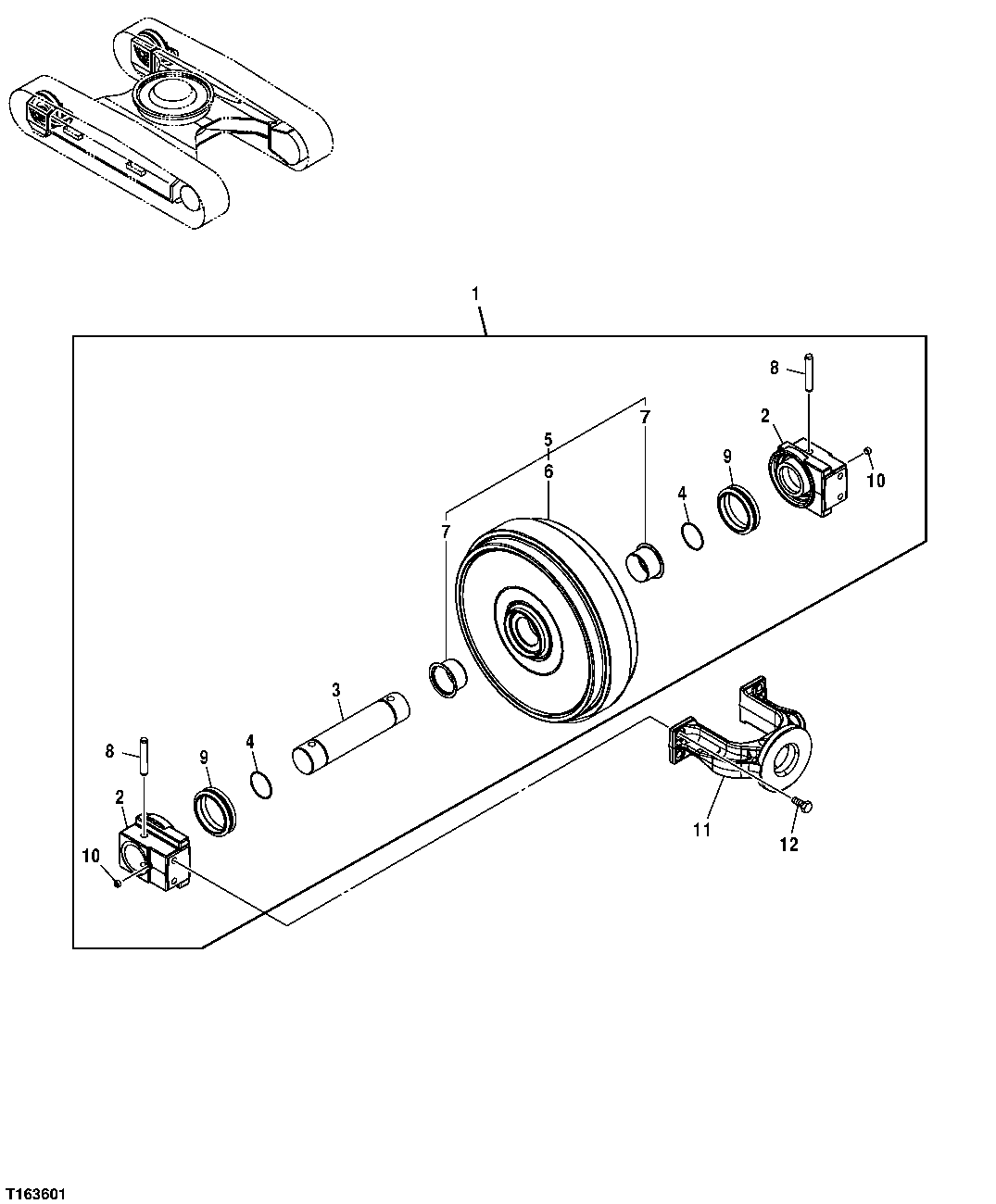

Запчасти John Deere 00CLC 3 - FRONT IDLER 0130 Track Systems

1

Track Idler

(SUB 9242964R) ( AT301568 NLA)

1шт.

9242964R

Track Idler

1шт.

2

DH100030

Bearing

(SUB FOR THDH100030)

2шт.

3

AT180022

Shaft

1шт.

4

AT180019

O-Ring

69.400 X 3.100 mm (2.732" X 0.122")

2шт.

5

AT180020

Roller Shell

1шт.

6

DH100001

Idler Sprocket

(SUB FOR THDH100001)

1шт.

7

AT180021

Bushing

75 X 79 X 48.500 mm (2-6 1/64" X 3.110" X 1.909")

2шт.

8

AT180015

Pin Fastener

20.500 X 107 mm (0.807" X 4.213")

2шт.

9

AT180017

Seal

2шт.

10

AT180007

Fitting Plug

2шт.

11

DH100029

Yoke

(SUB FOR THDH100029)

1шт.

12

19M8035

Cap Screw

M16 X 35

4шт.
