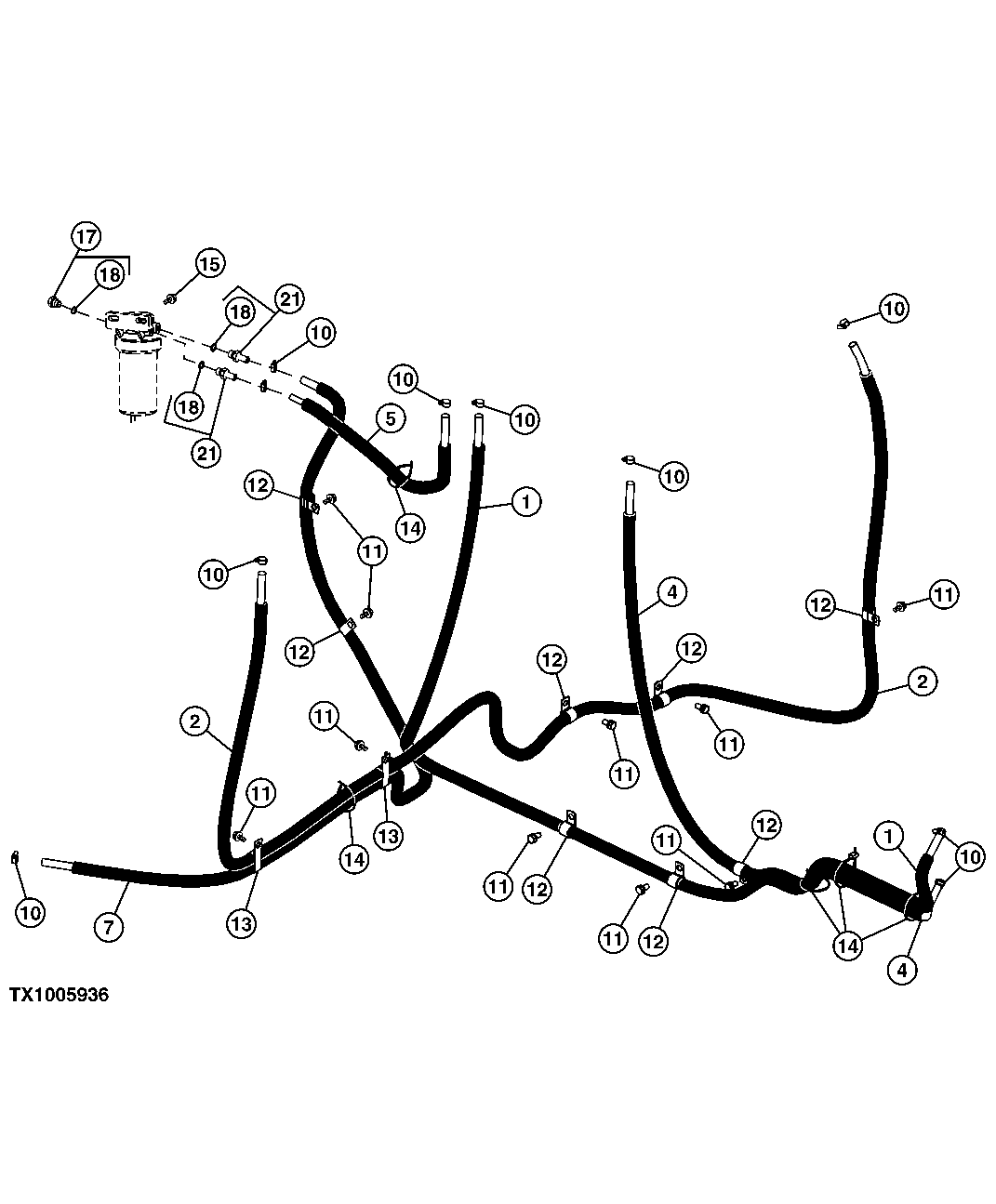

Запчасти John Deere 00CLC 142 - FUEL HOSES AND FITTINGS (SN 504001- ) 0560 EXTERNAL FUEL SUPPLY SYSTEMS

1

Bulk Hose

(MAKE FROM TY24398)(CTL) 2720MM (107.09") ( THDH900133 NLA) (HOSE AND COVER ASSEMBLY)

1шт.

Hose Guard

(MAKE FROM DH400246)(CTL) 257 0MM (101.18") ( DH400217 NLA)

1шт.

2

Bulk Hose

(MAKE FROM TY24398)(CTL) 3350MM (131.89") ( THDH900163 NLA) (HOSE AND COVER ASSEMBLY)

1шт.

Hose Guard

(MAKE FROM DH400246)(CTL) 320 0MM (125.98") ( DH400248 NLA)

1шт.

4

Bulk Hose

(MAKE FROM TY24398)(CTL) 1800 MM (70.86") ( THDH900286 NLA)

2шт.

5

R515462

Fuel Line

1шт.

6

Bulk Hose

(MAKE FROM TY24398)(CTL)

1шт.

7

Bulk Hose

(MAKE FROM TY24398) (CTL) 2500MM ( 98.42") ( THDH900134 NLA) (ALSO ORD ER DH400246 (CTL) 2150MM (84.65"))

1шт.

10

TY22464

Clamp

(SUB FOR AR21836)

8шт.

11

19M7938

Cap Screw

M10 X 20

8шт.

12M7066

Lock Washer

10 mm

8шт.

12

T24432

Clamp

8шт.

13

4190266

Clip

(SUB FOR TH108793)

2шт.

14

H77698

Tie Band

5шт.

15

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

16

4192075

Hose

(SUB FOR AT215520 ) (SUB FOR 4344303)

1шт.

17

RE46686

Fitting

2шт.

18

51M7040

O-Ring

9.300 X 2.200 mm

2шт.

21

RE500576

Fitting

1шт.
