Запчасти John Deere 00CLC 127 - DIESEL FIRED ENGINE COOLANT HEATER KIT (KITS BUILT AFTER MARCH 2009) 0505 COLD WEATHER STARTING AIDS

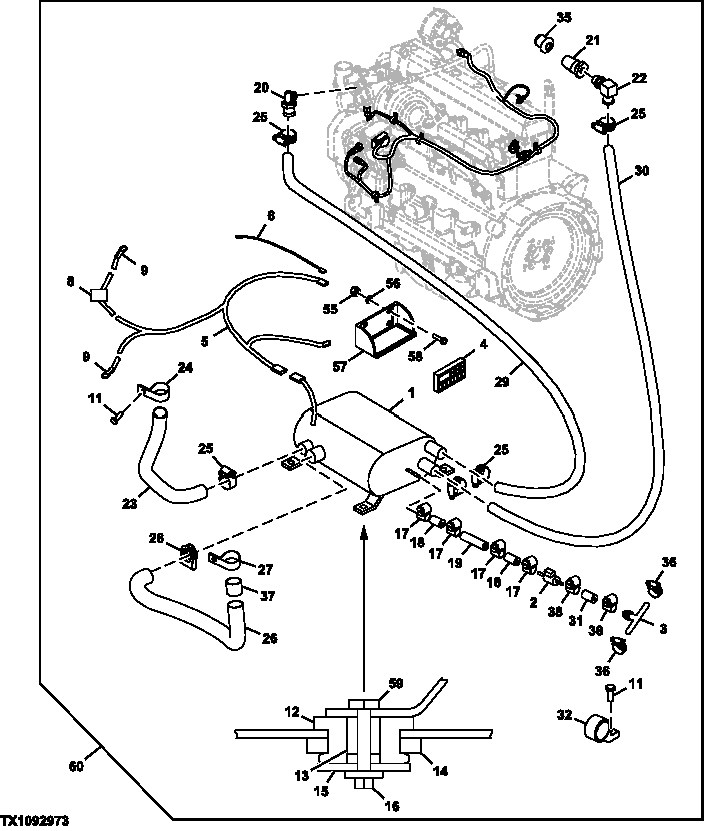

Схема запчастей John Deere 00CLC - 127 - DIESEL FIRED ENGINE COOLANT HEATER KIT (KITS BUILT AFTER MARCH 2009) 0505 COLD WEATHER STARTING AIDS

Артикул

Название

Примечание

Количество

1

AT222697

Coolant Heater

INCLUDES AT223099

1шт.

2

AT223099

Fuel Pump

1шт.

3

T205639

Tee Fitting

1шт.

4

AT221990

Digital Display

1шт.

5

AT307817

Wiring Harness

1шт.

6

AT307271

Wiring Lead

1шт.

8

AT307277

Wiring Lead

1шт.

9

Eyelet

2шт.

11

19M7833

Screw

M6 X 35

7шт.

12

AT116162

Isolator

4шт.

13

L101283

Spacer

5шт.

14

24M7353

Washer

20 X 34 X 3 mm

4шт.

15

M142541

Washer

4шт.

16

N207956

Lock Nut

12шт.

17

AT353138

Clamp

4шт.

18

T177580

Hose

2шт.

19

T206125

Hose

1шт.

20

AT221439

Elbow Fitting

1шт.

21

RE68908

Adapter Fitting

SUB FOR RE520229

1шт.

22

AT366772

Fitting

1шт.

23

T206127

Bulk Hose

Air Inlet Hose

1шт.

24

T179306

Clamp

1шт.

25

AT301917

Hose Clamp

5шт.

26

T206126

Exhaust Pipe

1шт.

27

T179306

Clamp

1шт.

28

AT221605

Clamp

1шт.

29

Bulk Hose

MAKE FROM TY22330

1шт.

30

Bulk Hose

MAKE FROM TY22330

1шт.

31

AT307816

Hose

1шт.

32

AT307815

Isolator

1шт.

35

R123616

Plug

1шт.

36

RE32361

Hose Clamp

2шт.

37

T177575

Exhaust Cap

1шт.

38

AT353137

Clamp

2шт.

55

14M7100

Nut

M4

4шт.

56

24M7210

Washer

5.500 X 18 X 2 mm

4шт.

57

AT389672

Bezel Kit

SUB FOR T255175

1шт.

58

19M8078

Cap Screw

M4 X 16

4шт.

59

19M7774

Screw

M6 X 12

6шт.

60

Coolant Heater

AT307267 NLA, WHOLE GOODS Diese l Fired Engine Coolant Heater Kit

1шт.

Выбрано товаров: 40
