Запчасти John Deere 00CLC 102 - 5702 WATER PUMP INLET, PULLEY 0400B Engine 6068HT059-RE519692 6068HT059

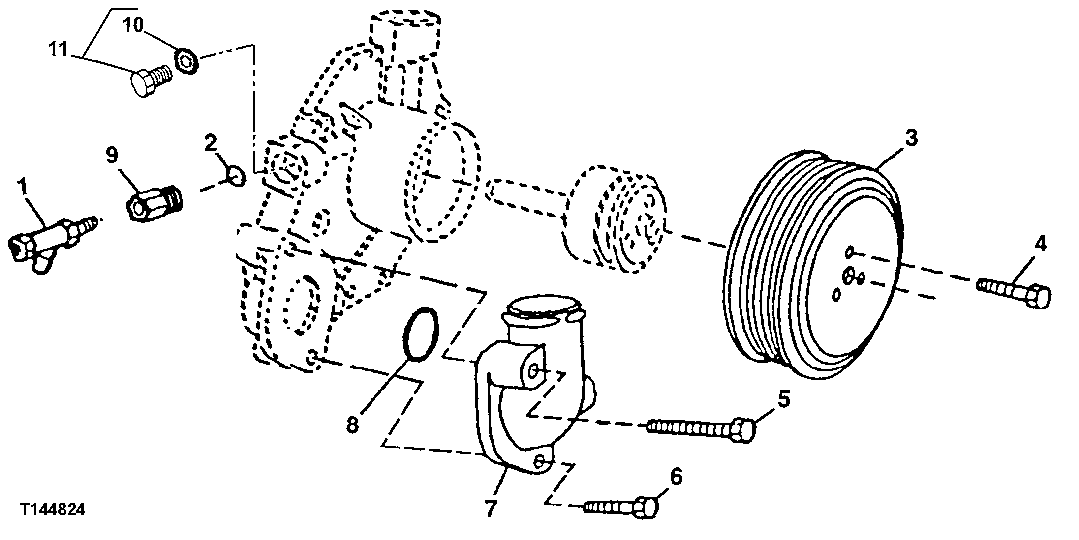

Схема запчастей John Deere 00CLC - 102 - 5702 WATER PUMP INLET, PULLEY 0400B Engine 6068HT059-RE519692 6068HT059

Артикул

Название

Примечание

Количество

1

RE507952

Drain Valve

(WITH CAB HEAT)

1шт.

2

51M7043

O-Ring

15.300 X 2.200 mm (WITH CAB HEAT)

1шт.

3

R115250

Pulley

1шт.

4

19M7774

Screw

M6 X 12

3шт.

5

19M7802

Screw

M8 X 65

1шт.

6

19M7867

Screw

M8 X 25

1шт.

7

R121635

Elbow Fitting

1шт.

8

R89944

O-Ring

1шт.

9

RE520229

Adapter Fitting

(SUB FOR RE68908)(WITH CAB HEAT)

1шт.

10

51M7043

O-Ring

15.300 X 2.200 mm (WITHOUT CAB HEAT)

1шт.

11

RE46685

Fitting Plug

(WITHOUT CAB HEAT)

1шт.

Выбрано товаров: 11
