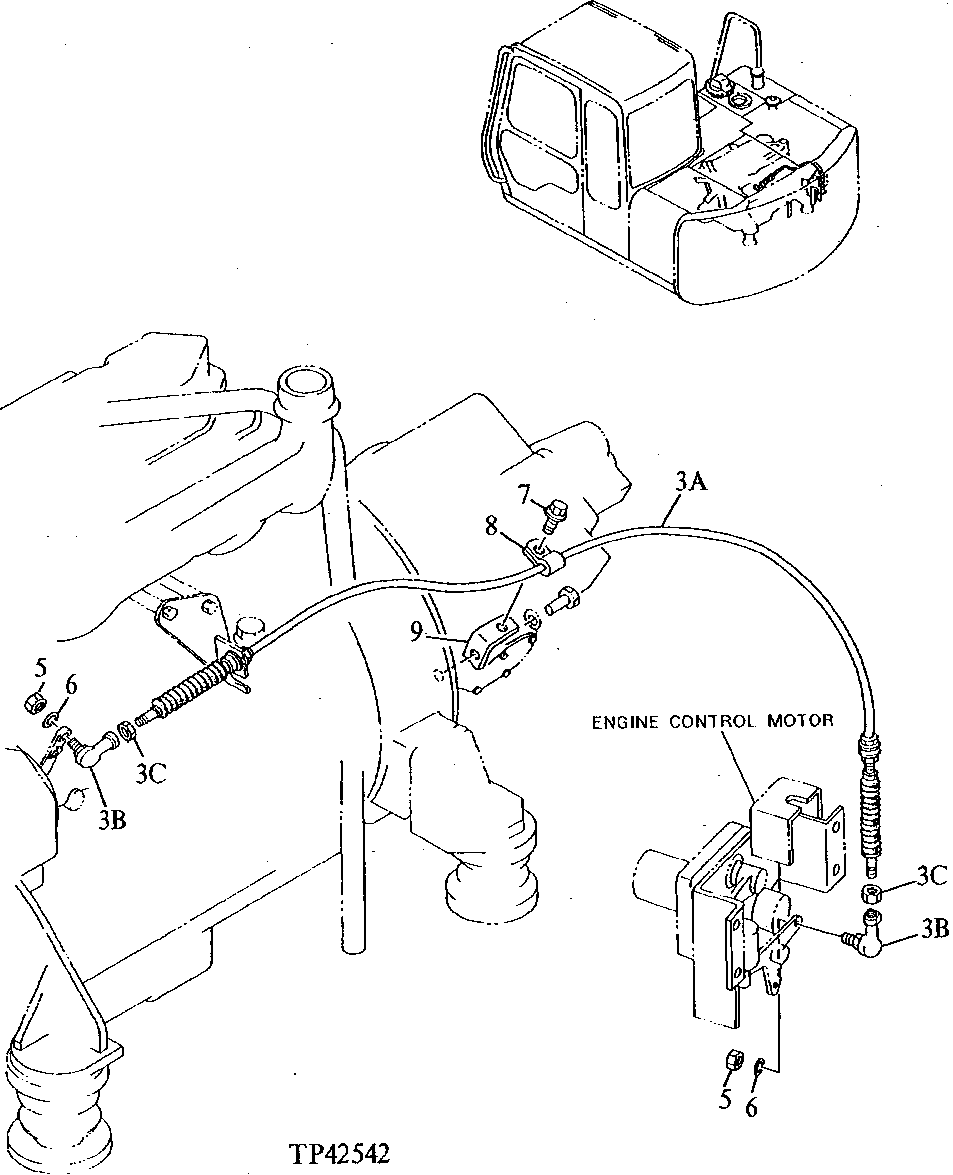

Запчасти John Deere 90E 58 - SPEED CONTROL CABLE 0515 SPEED CONTROLS

3

4312153

Cable

SUB FOR AT200569, INCLUDES KEY S 3A THROUGH 3C Not Illustrated

1шт.

3A

Cable

NOT AVAILABLE FOR SERVICE AS SEPARA TE PART, SUB AT200569 CABLE ASSEMBLY

1шт.

3B

4722815

Ball Joint

SUB FOR 4056017 AND TH102073

2шт.

3C

14M7272

Nut

M6

2шт.

5

14M7272

Nut

M6

2шт.

6

12M7006

Lock Washer

6 mm

2шт.

7

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

8

4190261

Clip

SUB FOR TH109649

1шт.

9

9741842

Bracket

SUB FOR AT200715

1шт.
