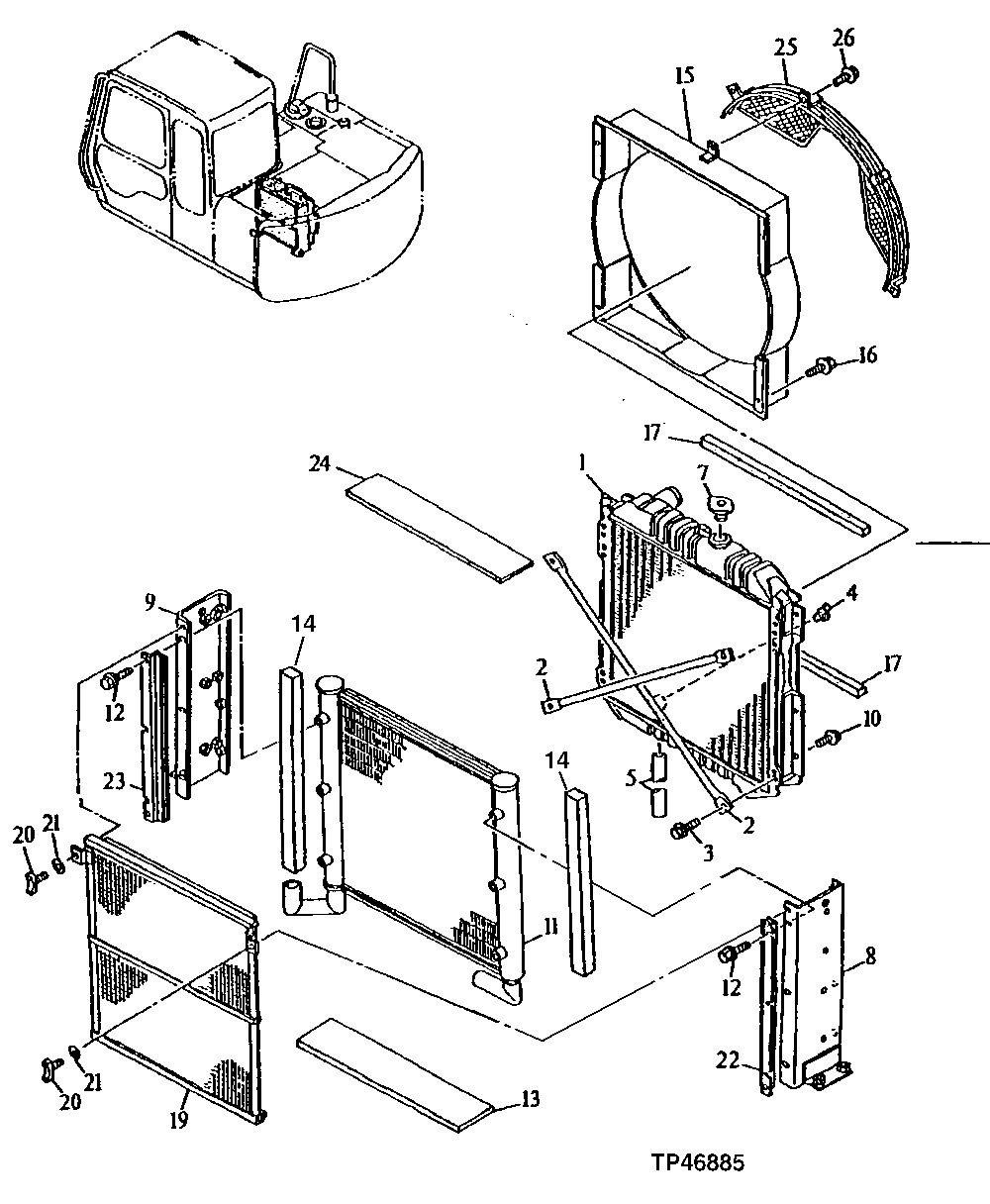

Запчасти John Deere 90E 54 - Radiator 0510 COOLING SYSTEMS

1

4320401

Radiator

(SUB FOR AT200601)

1шт.

2

4320400

Rod

(SUB FOR AT200600)

2шт.

3

4217606

Bolt

(SUB FOR TH110685)

4шт.

4

4148705

Drain Plug

(SUB FOR TH109425)

1шт.

5

Hose

(CUT TO LENGTH FROM 1/2 INCH I.D. VINYL TU BING) ( TH108233 NOT AVAILABLE FOR SERVICE)

1шт.

7

AT169085

Filler Cap

(SUB FOR AT164267)(USE IF AVAILABLE)

1шт.

AT169085

Filler Cap

(SUB FOR AT164267)

1шт.

8

4320391

Bracket

(SUB FOR AT200595)

1шт.

9

4320392

Bracket

(SUB FOR AT200596)

1шт.

10

4206678

Bolt

(SUB FOR TH108227)

6шт.

11

4320393

Oil Cooler

(SUB FOR AT200597)

1шт.

12

4206678

Bolt

(SUB FOR TH108227)

6шт.

13

Packing

(CUT TO LENGTH FROM BULK MATERIAL) ( AT200407 NOT AVAILABLE FOR SERVICE)

1шт.

14

Packing

(CUT TO LENGTH FROM BULK MATERIAL) ( AT200406 NOT AVAILABLE FOR SERVICE)

2шт.

15

4320398

Guide

(SUB FOR AT200598)(FAN)

1шт.

16

4206678

Bolt

(SUB FOR TH108227)

4шт.

17

Packing

(CUT TO LENGTH FROM BULK MATERIAL) ( AT200405 NOT AVAILABLE FOR SERVICE)

2шт.

19

4320390

Net Wrap

(SUB FOR AT200594)

1шт.

20

21M1689

Wing Screw

M6 X 12

2шт.

21

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

22

4301312

Bracket

(SUB FOR AT200528)

1шт.

23

4301313

Bracket

(SUB FOR AT200529)

1шт.

24

Packing

(CUT TO LENGTH FROM BULK MATERIAL) ( AT200593 NOT AVAILABLE FOR SERVICE)

1шт.

25

4337797

Guard

(SUB FOR AT200599 ) (SUB FOR AT165853)(FAN)

1шт.

26

4206678

Bolt

(SUB FOR TH110683 ) (SUB FOR TH108227)

4шт.
