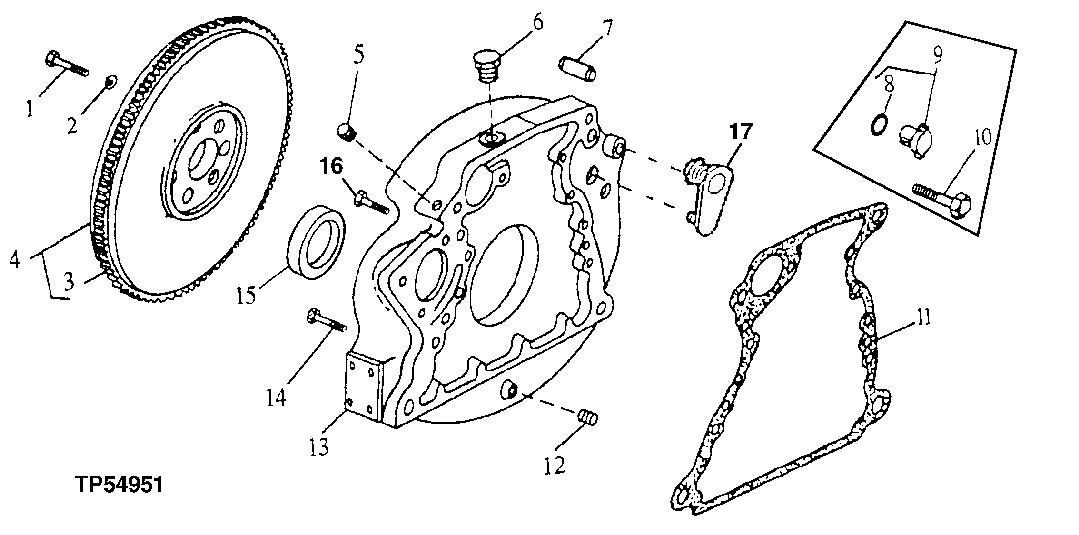

Запчасти John Deere 90E 48 - FLYWHEEL AND FLYWHEEL HOUSING 0433 FLYWHEEL,AND FASTENINGS 4039DT009 4039DT009

1

19H2993

Cap Screw

1/2" X 1-1/2"

4шт.

2

T23891

Washer

4шт.

3

R28811

Ring Gear

(129 TEETH)

1шт.

4

RE500511

Flywheel

(MARKED R122406)(SUB FOR RE46293, MARKED R109008) (SUB FOR RE58571, MARKED R122406)

1шт.

5

R104592

Pipe Plug

3.175 mm (1/8")

1шт.

6

T22867

Drain Plug

(SUB FOR R39112)

1шт.

7

R48685

Dowel Pin

2шт.

8

R27149

O-Ring

ARшт.

9

AR61533

Plug

ARшт.

10

19H2351

Cap Screw

1/2" X 1/2"

ARшт.

11

R97351

Gasket

1шт.

12

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

13

R120586

Housing

(SUB FOR R110188 ) (ALSO ORDER T22867)

1шт.

14

19H2599

Cap Screw

5/8" X 2-1/2"

4шт.

15

RE44574

Seal

1шт.

16

19H3385

Cap Screw

1/2" X 1-1/8"

1шт.

17

R131769

Plug

1шт.
