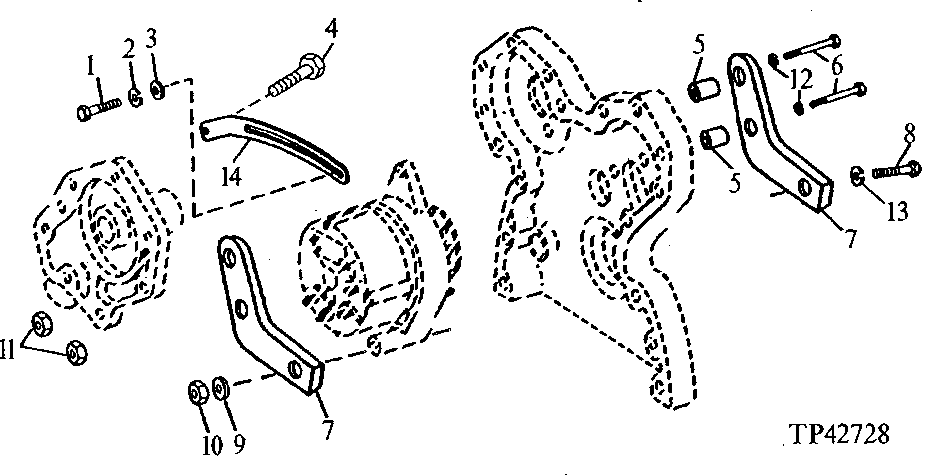

Запчасти John Deere 90E 46 - ALTERNATOR SUPPORTS 0423 Alternator And Generator Mounting 4039DT009 4039DT009

1

19M7513

Cap Screw

M8 X 30 (SUB FOR 19M7288)

1шт.

2

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

3

24H1621

Washer

11/32" X 1" X 0.220"

ARшт.

4

19H3065

Cap Screw

3/8" X 2"

1шт.

5

28H862

Spacer

0.423" X 0.675" X 7/16" 3/8" X 1"

2шт.

6

19H3743

Screw

3/8" X 2-7/8"

2шт.

7

R57260

Bracket

2шт.

8

19M8197

Cap Screw

M10 X 85

1шт.

9

12M7066

Lock Washer

10 mm

1шт.

10

14M7274

Nut

M10

1шт.

11

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

12

24M7106

Washer

10 X 18 X 2.500 mm

2шт.

13

24H1822

Washer

11/32" X 7/8" X 1/16"

ARшт.

14

R108404

Strap

(SUB FOR R71250, THIS APPLICATION)

1шт.
