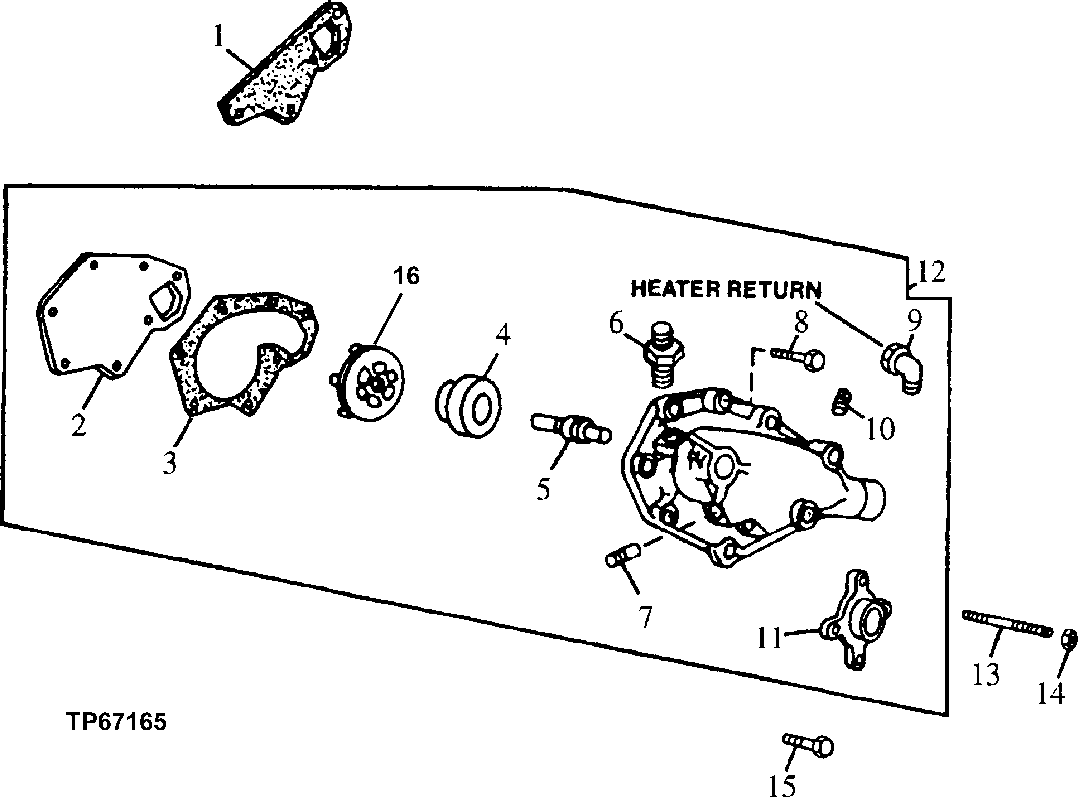

Запчасти John Deere 90E 38 - Water Pump 0417 Water Pump 4039DT009 4039DT009

1

T20243

Gasket

1шт.

2

T20270

Cover

1шт.

3

R97455

Gasket

1шт.

4

AR101549

Seal Kit

1шт.

5

JD9257

Ball Bearing

1шт.

6

T19651

Hose Fitting

1шт.

7

R48993

Tube

2шт.

8

19H2545

Cap Screw

3/8" X 1-3/8"

2шт.

9

T107030

Elbow Fitting

1шт.

10

15H584

Pipe Plug

1/2"

1шт.

11

T30720

Hub

(SUB FOR R62371)(USE WITH T30 721, NOT REQUIRED WITH T23628)

1шт.

12

RE54215

Water Pump

(MARKED R55758)

1шт.

13

T25701

Stud

1шт.

14

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H1076, THIS APPLICATION)

1шт.

15

19H1912

Cap Screw

3/8" X 3-1/2"

1шт.

16

T30897

Impeller

1шт.
