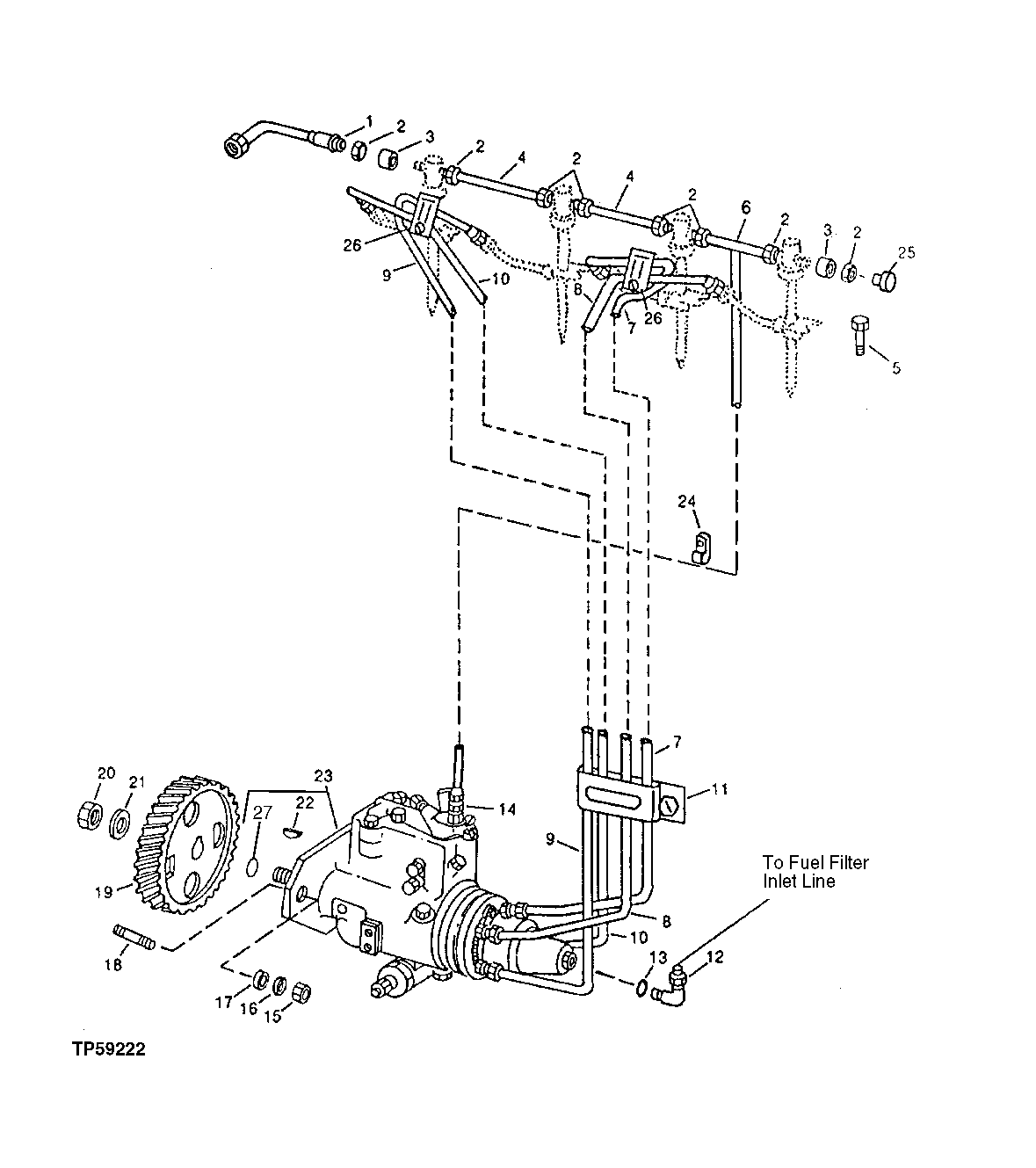

Запчасти John Deere 90E 33 - Fuel Injection System 0413 FUEL INJECTION NOZZLE 4039DT009 4039DT009

1

RE16142

Fuel Line

1шт.

2

R51937

Tube Nut

5шт.

R123593

Tube Nut

(LEAK-OFF)

2шт.

3

R51936

Sealing Washer

7шт.

4

RE68748

Tube

(SUB FOR R66090)

2шт.

5

R101201

Cap Screw

1шт.

6

AR89852

Fuel Line

1шт.

7

RE53874

Fuel Line

NO. 3

1шт.

8

RE53875

Fuel Line

NO. 4

1шт.

9

RE53873

Fuel Line

NO. 2

1шт.

10

RE53872

Fuel Line

NO. 1

1шт.

11

RE19799

Clamp

1шт.

12

RE56322

Tee Fitting

(SUB FOR AT32333)

1шт.

13

R26286

O-Ring

1шт.

14

R35352

Fitting

1шт.

15

14H785

Nut

5/16"

3шт.

16

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

3шт.

17

T27860

Washer

8.740 X 17.500 X 1.664 mm (11/32" X 0.689" X 0.066")

3шт.

18

T23442

Stud

3шт.

19

R84663

Gear

(48 TEETH)

1шт.

R116339

Gear

(48 TEETH)

1шт.

20

R48599

Nut

1шт.

21

R132874

Washer

(SUB FOR R48600)

1шт.

22

26H73

Shaft Key

5/32" X 5/8"

1шт.

23

RE48332

Fuel Injection Pump

(ALSO ORDER R48599 AND R132 874) (STANADYNE DB24355062)

1шт.

SE500585

Fuel Injection Pump Reman

(STANADYNE DB24355062) (REMAN FOR RE48332)

1шт.

RE57114

Fuel Injection Pump

(STANADYNE DB24355141) (AL SO ORDER R48599 AND R48600)

1шт.

SE500699

Fuel Injection Pump Reman

(STANADYNE DB24355141) (REMAN FOR RE57114)

1шт.

24

T29969

Clamp

1шт.

25

AR85519

Plug

(SUB FOR 16H658, THIS APPLICATION)

1шт.

26

RE19797

Clamp

2шт.

27

T16318

O-Ring

1шт.
