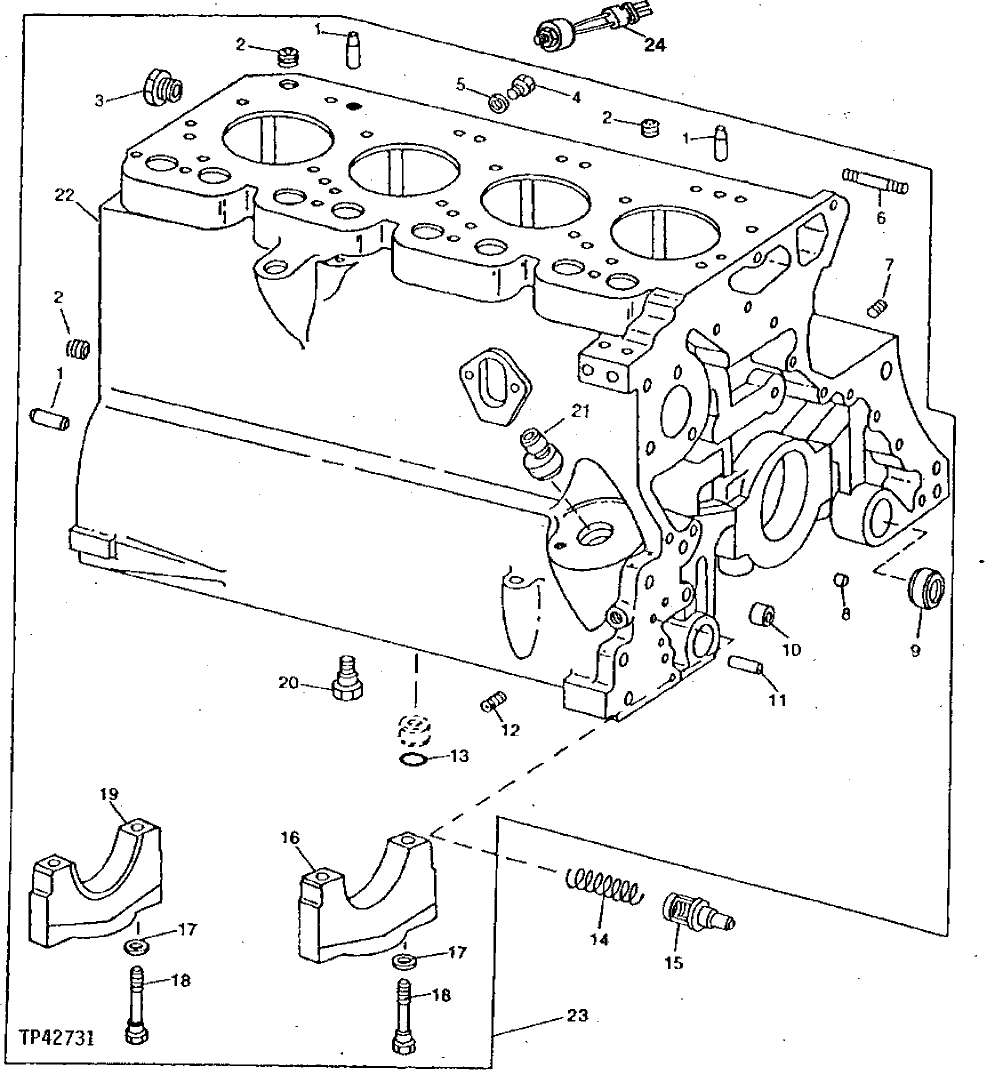

Запчасти John Deere 90E 20 - Cylinder Block And Main Bearing Caps 0404 Cylinder Block 4039DT009 4039DT009

1

R48685

Dowel Pin

4шт.

2

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

3шт.

3

15H562

Pipe Plug

1" 3/8", HEX CTSK, 3/4"

1шт.

4

R39741

Drain Plug

1шт.

5

U13639

O-Ring

1шт.

6

R122226

Stud

(SUB FOR R122226)TIMING COVER

2шт.

T25701

Stud

WATER PUMP

1шт.

T10982

Stud

WATER PUMP

1шт.

7

R104592

Pipe Plug

5шт.

8

T18891

Plug

1шт.

9

R57160

Bushing

6шт.

10

R26493

Bushing

1шт.

11

R26650

Dowel Pin

2шт.

12

15H623

Pipe Plug

3/8"

1шт.

13

R75892

O-Ring

1шт.

14

R111137

Spring

OIL PRESSURE RELIEF VALVE

1шт.

15

R111135

Valve

2шт.

16

R65215

Bearing Cap

4шт.

17

T20168

Washer

(OIL PUMP TUBE)

10шт.

18

T23474

Cap Screw

10шт.

19

R79089

Cap

REAR

1шт.

20

R54802

Orifice

4шт.

21

T23435

Threaded Nipple

1шт.

22

Cylinder Block

6шт.

23

RE50652

Cylinder Block

(MARKED R109580 ) (ALSO O RDER R111135 AND R111137)

1шт.

24

AT145384

Switch

ENGINE OIL PRESSURE

1шт.
