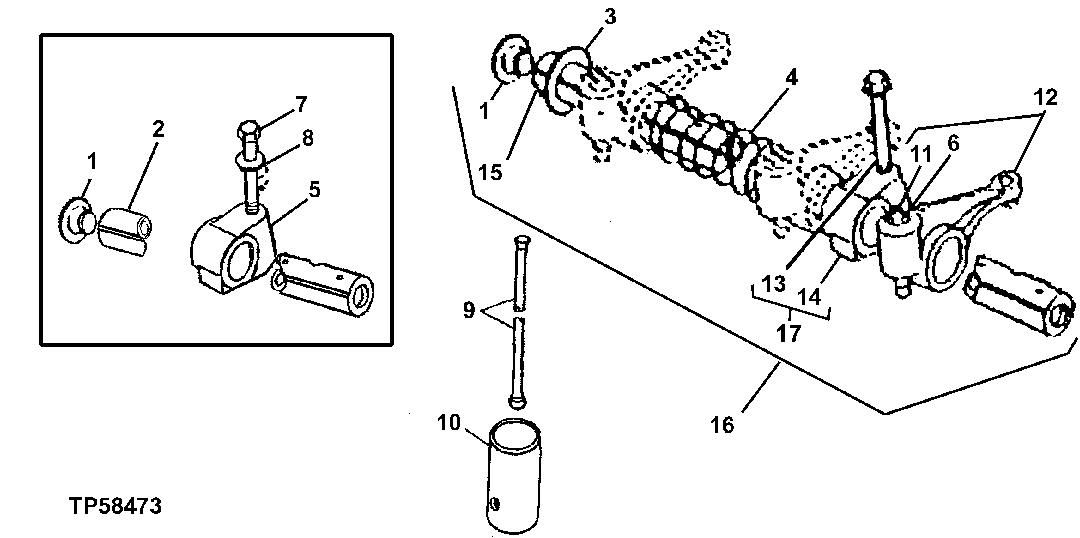

Запчасти John Deere 90E 18 - Rocker Arm Shaft, Push Rods and Rocker Arms 0402 Camshaft And Valve Actuating Means 4039DT009 4039DT009

1

R54565

Plug

2шт.

2

DD12120

Rocker Arm Shaft

(SUB RE502874 ) (SUB FOR R54987 ) (INCLUDES (2) R54565 ) (USE WITH 19H3031 AND T20315)

1шт.

3

T20316

Washer

2шт.

4

T20314

Spring

3шт.

5

T20315

Support

(SUB RE503861 ) (USE W ITH 19H3031 AND R54987)

4шт.

6A

RE31973

Rocker Arm

(SUB FOR RE19031)

8шт.

6B

RE62148

Rocker Arm

(SUB FOR RE43384)

8шт.

7

19H3031

Cap Screw

3/8" X 2-1/2"

4шт.

8

R42729

Washer

4шт.

9A

R82896

Push Rod

8шт.

9B

R107732

Push Rod

8шт.

10

T20073

Cam Follower

8шт.

11

R125881

Lock Nut

(SUB FOR R119314)

8шт.

12

R125880

Screw

(SUB FOR R106116)

8шт.

13

19H3733

Screw

3/8" X 2-1/2"

ARшт.

19H3031

Cap Screw

3/8" X 2-1/2"

ARшт.

14

R123161

Support

4шт.

15

R123514

Rocker Arm Shaft

1шт.

16

RE519736

Rocker Arm Shaft

(SUB FOR RE502874 ) (ALSO ORDE R (8) R515095 AND (8) R518454)

1шт.

17

RE502861

Support

1шт.
