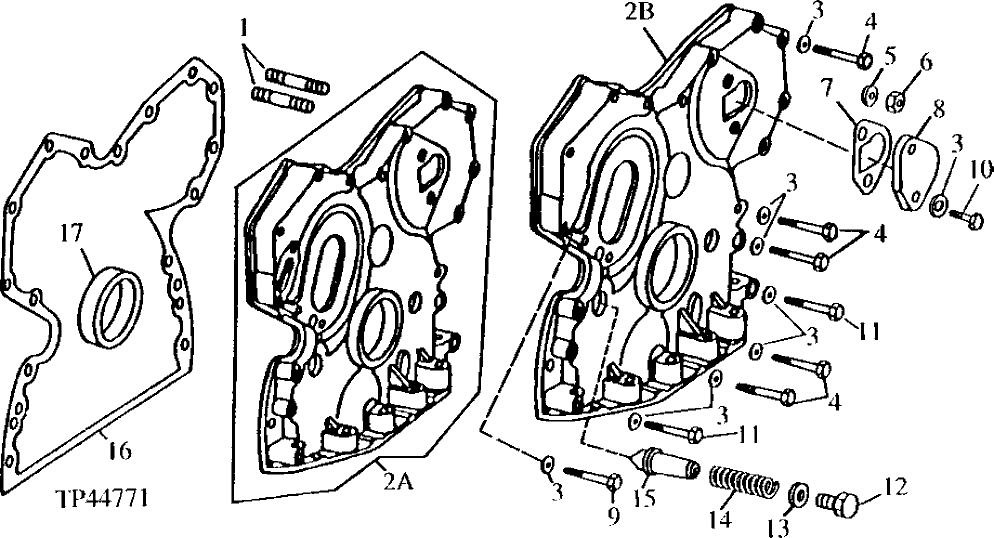

Запчасти John Deere 90E 17 - Timing Gear Cover 0402 Camshaft And Valve Actuating Means 4039DT009 4039DT009

1

R122226

Stud

(SUB FOR R122226)

2шт.

2A

RE39252

Cover

1шт.

2B

RE56443

Cover

1шт.

3

24M7106

Washer

10 X 18 X 2.500 mm

ARшт.

4

19H3408

Screw

3/8" X 1-3/4"

5шт.

19H3693

Screw

3/8" X 1-1/4"

5шт.

5

12H304

Lock Washer

3/8"

ARшт.

6

N10215

Lock Nut

9.525 mm (3/8") (SUB FOR 14H812, THIS APPLICATION)

2шт.

7

R125066

Gasket

(SUB FOR R97773)

1шт.

8

R126041

Cover

(SUB FOR T20362)

1шт.

9

19H1819

Cap Screw

3/8" X 2-1/8"

1шт.

10

R124277

Cap Screw

(SUB FOR R122618, THIS APPLICATION)

2шт.

11

19H3733

Screw

3/8" X 2-1/2"

2шт.

12

T27657

Fitting Plug

1шт.

13

A4827R

Washer

1шт.

14

T27658

Spring

1шт.

15

R83169

Valve

1шт.

16

R126513

Gasket

(SUB FOR R119269 OR R121314)

1шт.

17

RE44574

Seal

1шт.
