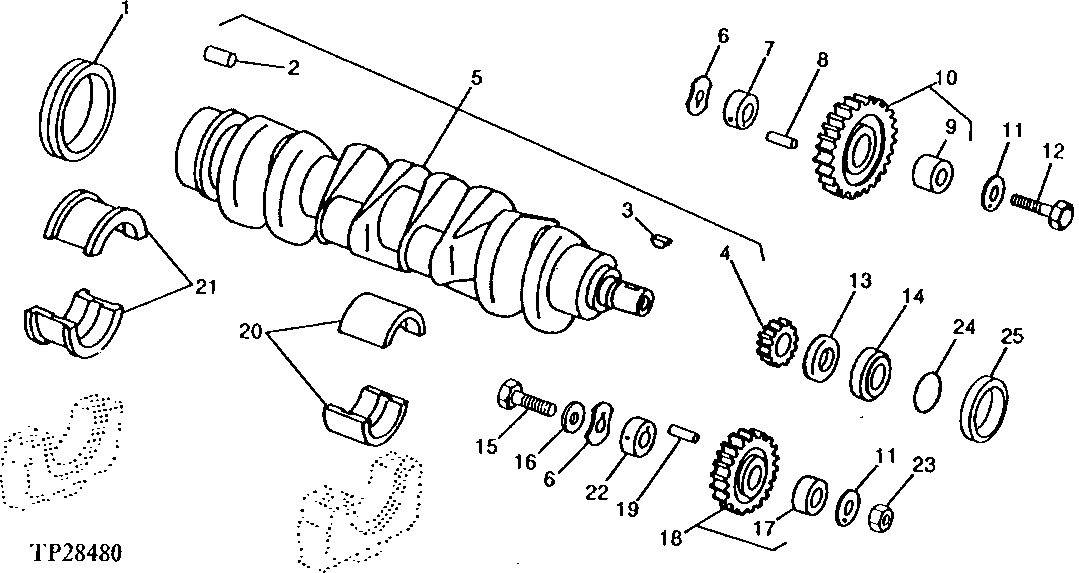

Запчасти John Deere 90E 13 - CRANKSHAFT, IDLER GEARS AND MAIN BEARINGS 0401 Crankshaft And Main Bearing 4039DT009 4039DT009

1

RE44574

Seal

1шт.

2

R48685

Dowel Pin

1шт.

3

26H72

Shaft Key

1/8" X 5/8"

1шт.

4

T20094

Helical Gear

(24 TEETH)

1шт.

5

Crankshaft

RE36605, MARKED R121018 NO LONGER AVAI LABLE (SUB FOR RE20585 AND RE44468, MAR KED R81959) SUB RE65224 CRANKSHAFT KIT

1шт.

RE65224

Crankshaft

1шт.

SE501650

Crankshaft Reman

(A) REMAN FOR RE65224

1шт.

6

T26324

Thrust Washer

2шт.

7

R109863

Shaft

1шт.

8

34H283

Spring Pin

3/16" X 1-1/8"

1шт.

9

T20034

Bushing

1шт.

10

AR91660

Gear

(55 TEETH), (MARKED R70182)

1шт.

11

T26326

Thrust Washer

2шт.

12

T26327

Screw

1шт.

13

T20046

Oil Slinger

1шт.

14

AR67942

Seal

1шт.

15

19H3183

Cap Screw

1/2" X 2-1/8" HS, SAE 8, 1/2" X 2-1/8"

1шт.

16

R100105

Washer

1шт.

17

T26321

Bushing

1шт.

18

AT24252

Gear

(45 TEETH), (MARKED T26322)

1шт.

19

34H286

Spring Pin

3/16" X 1-1/2"

1шт.

20

RE27352

Bearing Kit

(SUB FOR AT21140) STANDARD ( T23214)

4шт.

RE27353

Bearing Kit

(SUB FOR AT21110) 0.25 MM (.010") UNDERSIZE ( T23554)

4шт.

RE27360

Bearing

(SUB FOR AT21112) 0.51 MM (.020") UNDERSIZE ( T23556)

4шт.

RE27368

Bearing

(SUB FOR AT21114)0.76 MM ( .030") UNDERSIZE ( T23558)

4шт.

21

R78598

Thrust Washer

(SUB FOR AT21139) STANDARD ( T23215)

1шт.

R78598

Thrust Washer

(SUB FOR AT21132) 0.25 MM ( .010") UNDERSIZE ( R130574)

1шт.

AT21134

Bearing

0.51 MM (.020") UNDERSIZE ( T23578)

1шт.

AT21136

Bearing

0.76 MM (.030") UNDERSIZE ( T23580)

1шт.

22

R109863

Shaft

(SUB FOR R89824)

1шт.

23

E69392

Nut

1шт.

24

H35244

Ring

1шт.

25

R81989

Sleeve

1шт.
