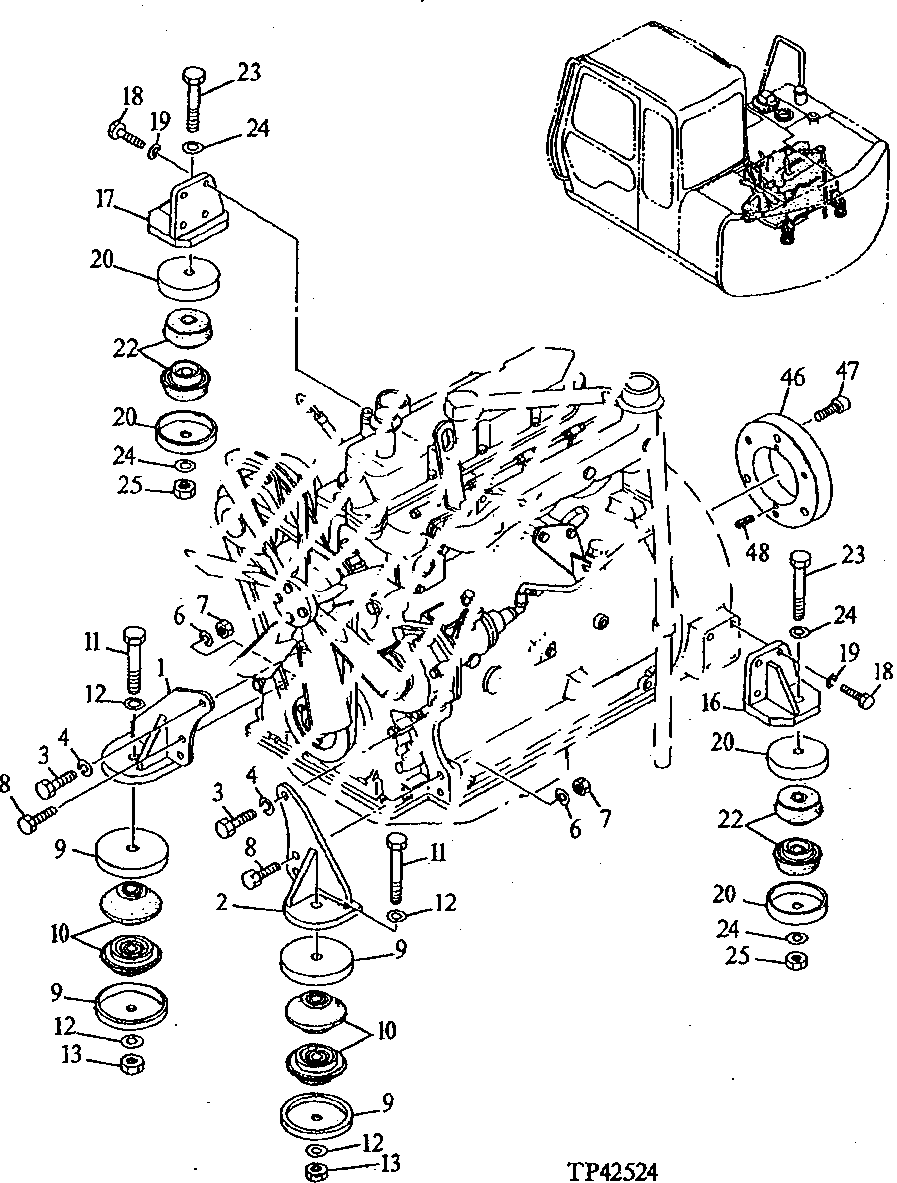

Запчасти John Deere 90E 12 - Engine Mounting 0400 REMOVAL AND INSTALLATION 4039DT009 4039DT009

1

8054542

Bracket

(SUB FOR AT200675)(LEFT FRONT)

1шт.

2

8054543

Bracket

(SUB FOR AT200676)(LEFT REAR)

1шт.

3

19H2710

Cap Screw

5/8" X 1-3/4"

4шт.

4

12H294

Lock Washer

5/8"

4шт.

6

12H294

Lock Washer

5/8"

2шт.

7

14H1039

Nut

5/8"

2шт.

8

19H2599

Cap Screw

5/8" X 2-1/2"

2шт.

9

4169423

Retainer

(SUB FOR TH106409)

4шт.

10

4177883

Isolator

(SUB FOR TH106408)

4шт.

11

19M7954

Cap Screw

M16 X 150

2шт.

12

24M7338

Washer

17 X 30 X 3 mm

4шт.

13

14M7276

Nut

M16

2шт.

16

8054540

Bracket

(SUB FOR AT200673)(RIGHT REAR)

1шт.

17

8054541

Bracket

(SUB FOR AT200674)(RIGHT FRONT)

1шт.

18

19H2993

Cap Screw

1/2" X 1-1/2"

8шт.

19

12H301

Lock Washer

1/2"

8шт.

20

4189018

Retainer

(SUB FOR TH109410)

4шт.

22

4184341

Isolator

(SUB FOR TH106407)

4шт.

23

J911816

Bolt

(SUB FOR TH110084)

2шт.

24

24M7353

Washer

20 X 34 X 3 mm

4шт.

25

J951018

Nut

(SUB FOR TH100890)

2шт.

46

3035858

Spacer

(SUB FOR TH105928)

1шт.

47

T108085

Cap Screw

M16 X 50

3шт.

48

34M7117

Spring Pin

5 X 10 mm

2шт.
