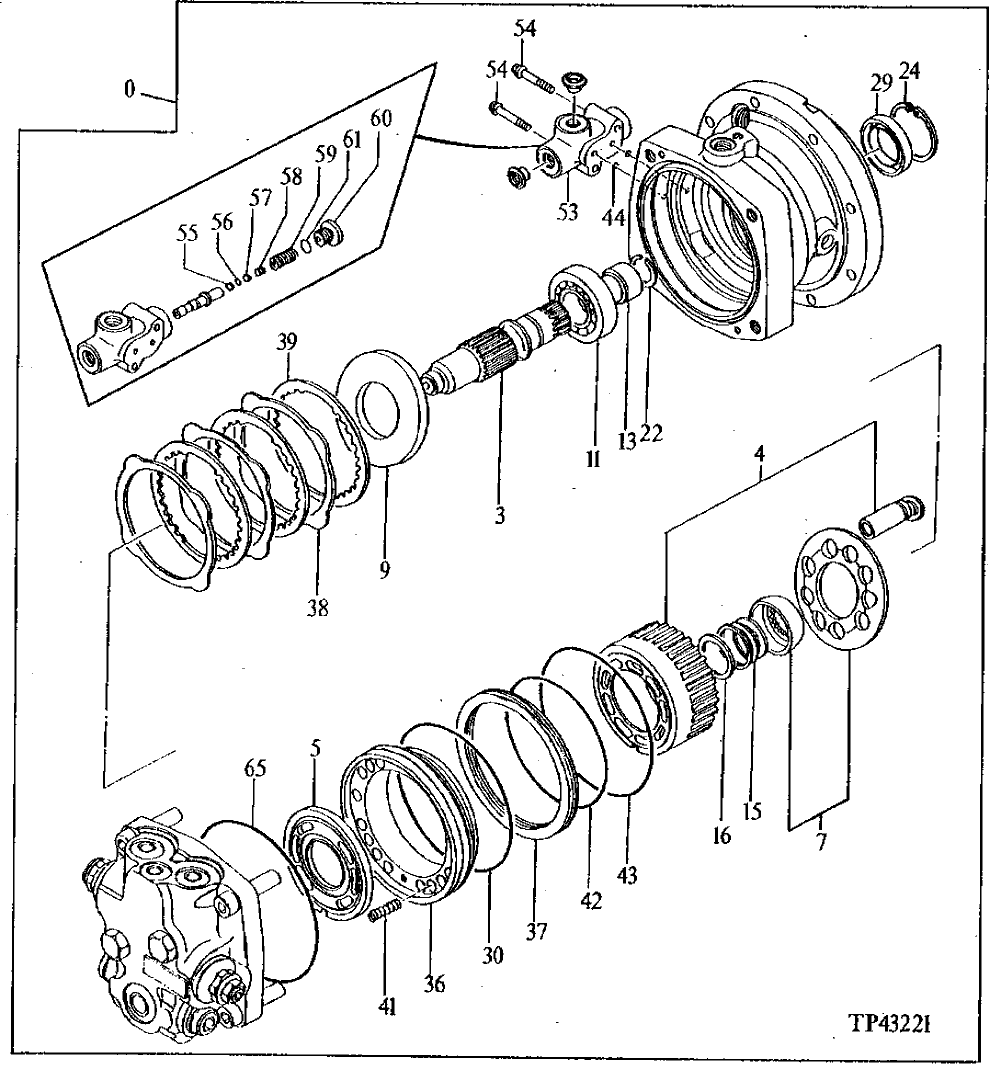

Запчасти John Deere 90E 221 - Swing Motor 4360 HYDRAULIC SYSTEM

0

Hydraulic Motor

SUB FOR AT200450, AT190566 NLA Contain s All Items Listed On This Page - Addit ional Components Listed On Previous Pag e

1шт.

4325475

Hydraulic Motor

SUB FOR AT190566, ALONG 0602201

1шт.

0602201

Plug

SUB FOR AT190567

1шт.

3

0444202

Shaft

SUB FOR AT200213

1шт.

4

0444203

Cylinder Block

SUB FOR AT200214

1шт.

5

0444204

Plate

SUB FOR AT200215

1шт.

7

0444205

Plate

SUB FOR AT200216

1шт.

9

0444206

Plate

SUB FOR AT200217

1шт.

11

0444207

Ball Bearing

SUB FOR AT200218

1шт.

13

0444208

Bearing Race

SUB FOR AT200219

1шт.

15

0329612

Spring

SUB FOR TH110266

1шт.

16

0329613

Plate

SUB FOR TH110267

1шт.

22

0311316

Snap Ring

SUB FOR TH109059

1шт.

24

40M7228

Snap Ring

1шт.

29

0433905

Seal

SUB FOR 4S00879

1шт.

30

TH104589

O-Ring

144.400 X 3.100 mm (5.685" X 0.122")

1шт.

36

0444209

Piston

SUB FOR AT200220

1шт.

37

0444210

Bushing

SUB FOR AT200221

1шт.

38

0444211

Plate

SUB FOR AT200222

3шт.

39

0444212

Plate

SUB FOR AT200223

3шт.

41

0444213

Spring

SUB FOR AT200224

18шт.

42

A811125

O-Ring

SUB FOR AT200001

1шт.

43

A811135

O-Ring

SUB FOR AT200002

1шт.

44

CH11568

Packing

2шт.

53

0444214

Valve Lifter

SUB FOR AT200225

1шт.

54

19M8513

Screw

M6 X 40 SUB FOR AT200230

2шт.

55

0311326

Filter

SUB FOR TH109072

1шт.

56

0444215

Shim

SUB FOR AT200226

1шт.

57

0444216

Orifice

SUB FOR AT200227

1шт.

58

0444217

Orifice

SUB FOR AT200228

1шт.

59

0444218

Spring

SUB FOR AT200229

1шт.

60

0311336

Pipe Plug

SUB FOR TH109082

1шт.

61

CH11570

O-Ring

1шт.

65

R27796

O-Ring

SUB FOR TH103568 OR 0234115

1шт.
