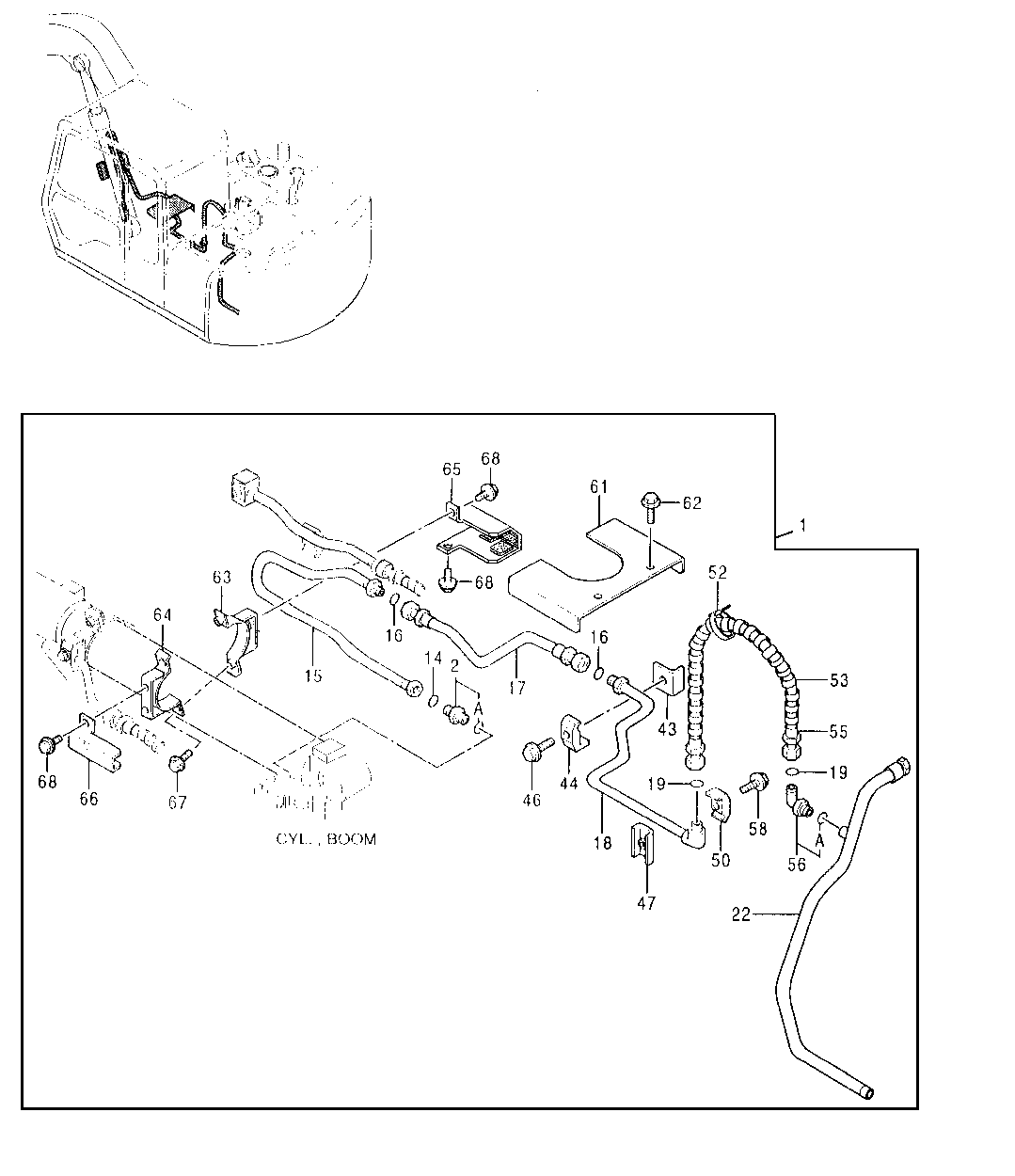

Запчасти John Deere 90E 217 - BOOM CYLINDER LOAD LOWERING VALVE 3360 HYDRAULIC SYSTEM

1

Kit

( AT171137 NO LONGER AVAILABLE) (BOO M CYLINDER LOAD LOWERING VALVE) (CONTA INS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES)

1шт.

2

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

2A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

14

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

15

Oil Line

( 8062747 NLA) (SUB FOR AT175096)

1шт.

16

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

17

Hose

(SUB FOR AT175097)( 4197790 NLA)

1шт.

18

Oil Line

(SUB FOR AT175098)( 8062782 NLA)

1шт.

19

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

22

Oil Line

( 7030173 NLA) (SUB FOR AT175099)

1шт.

43

Screw

( AT175106 NOT AVAILABLE FOR SERVICE)

1шт.

44

4190125

Clamp

(SUB FOR TH108960)

1шт.

46

19M7362

Cap Screw

M12 X 55

1шт.

12H301

Lock Washer

1/2"

1шт.

47

9735916

Channel

(SUB FOR AT157648)

1шт.

50

4190125

Clamp

(SUB FOR TH108960)

1шт.

52

H77698

Tie Band

1шт.

53

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

55

Hose

( 4295514 NLA) (SUB FOR AT175107)

1шт.

56

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

56A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

58

19M7361

Cap Screw

M12 X 50

1шт.

12H301

Lock Washer

1/2"

1шт.

61

Oil Line

( 8063161 NLA) (SUB FOR AT175110)

1шт.

62

19M7362

Cap Screw

M12 X 55

2шт.

12H301

Lock Washer

1/2"

2шт.

63

Clamp

( 8064616 NLA) (SUB FOR AT175111)

1шт.

64

Clamp

( 8063945 NLA) (SUB FOR AT175112)

1шт.

65

3074485

Cover

(SUB FOR AT175113)

1шт.

66

3074487

Cover

(SUB FOR AT175114)

1шт.

67

19M7550

Cap Screw

M10 X 35 (SUB FOR 19M7 662, THIS APPLICATION)

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

68

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.
