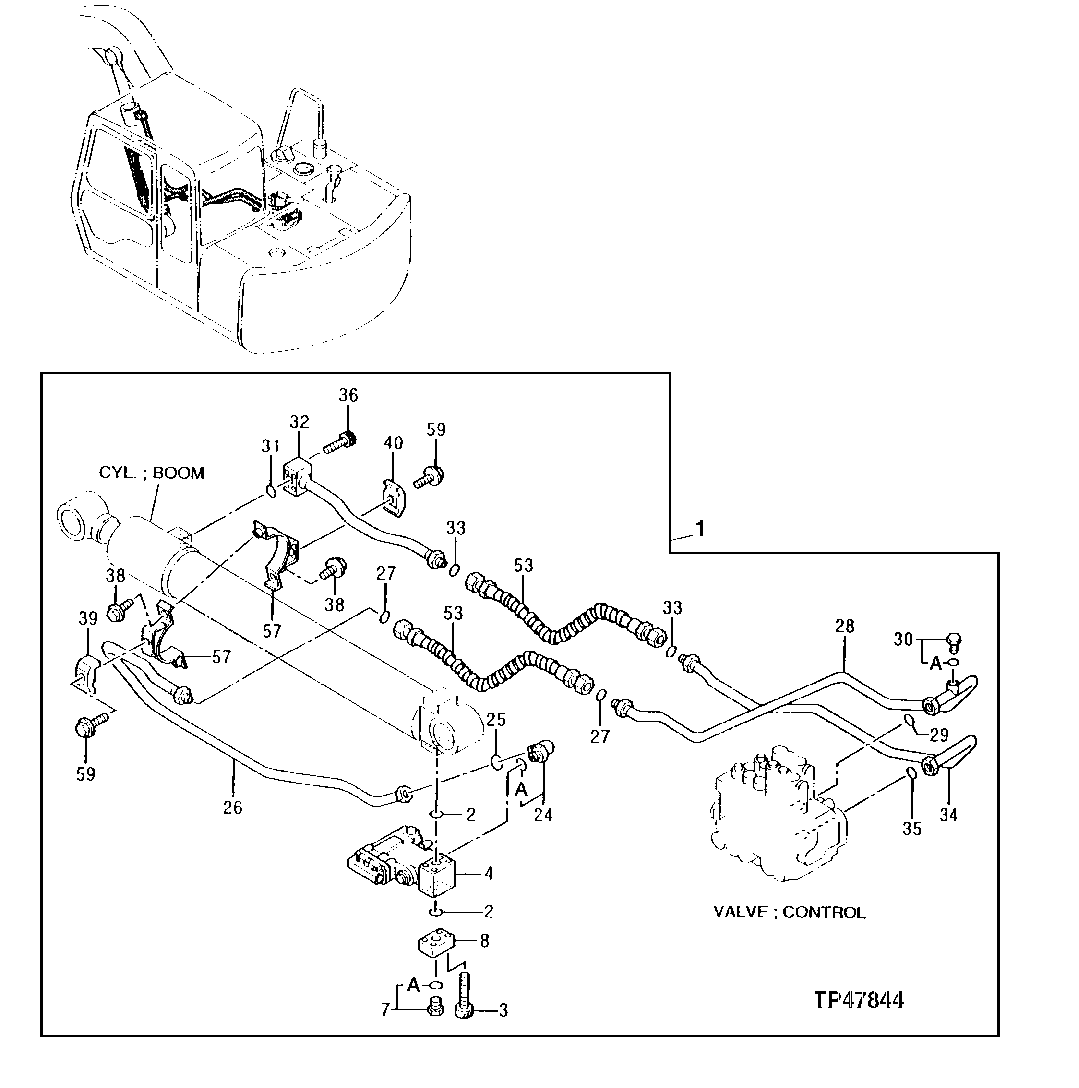

Запчасти John Deere 90E 215 - BOOM CYLINDER LOAD LOWERING VALVE 3360 HYDRAULIC SYSTEM

1

Kit

( AT171137 NO LONGER AVAILABLE) (BOO M CYLINDER LOAD LOWERING VALVE) (CONTA INS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES)

1шт.

2

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

2шт.

3

M341095

Bolt

(SUB FOR AT172341)

4шт.

4

4359823

Flow Control Hyd. Valve

(SUB FOR AT175091)

1шт.

7

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.

7A

M800650

Packing

1шт.

8

Flange

( 4352109 NLA) (SUB FOR AT175092)

1шт.

24

4322739

Elbow Fitting

(SUB FOR AT172342)

1шт.

24A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

25

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

26

Oil Line

( 8062743 NLA) (SUB FOR AT175101)

1шт.

27

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

28

Oil Line

( 8062753 NLA) (SUB FOR AT175103)

1шт.

29

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

30

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

1шт.

30A

M800650

Packing

1шт.

31

A811025

O-Ring

24.400 X 3.100 mm (0.961" X 0.122") (SUB FOR TH103950)

1шт.

32

Oil Line

( 9744648 NLA) (SUB FOR AT175104)

1шт.

33

T77857

O-Ring

12.421 X 1.778 mm (0.489" X 0.070")

2шт.

34

Oil Line

( 8062759 NLA) (SUB FOR AT175105)

1шт.

35

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

36

19M8711

Screw

M8 X 50

4шт.

38

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

4190125

Clamp

(SUB FOR TH108960)

1шт.

40

4189858

Clamp

(SUB FOR TH108333)

1шт.

53

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

57

Clamp

( 8063639 NLA) (SUB FOR AT175108)

2шт.

59

19M8600

Cap Screw

M10 X 50

2шт.
