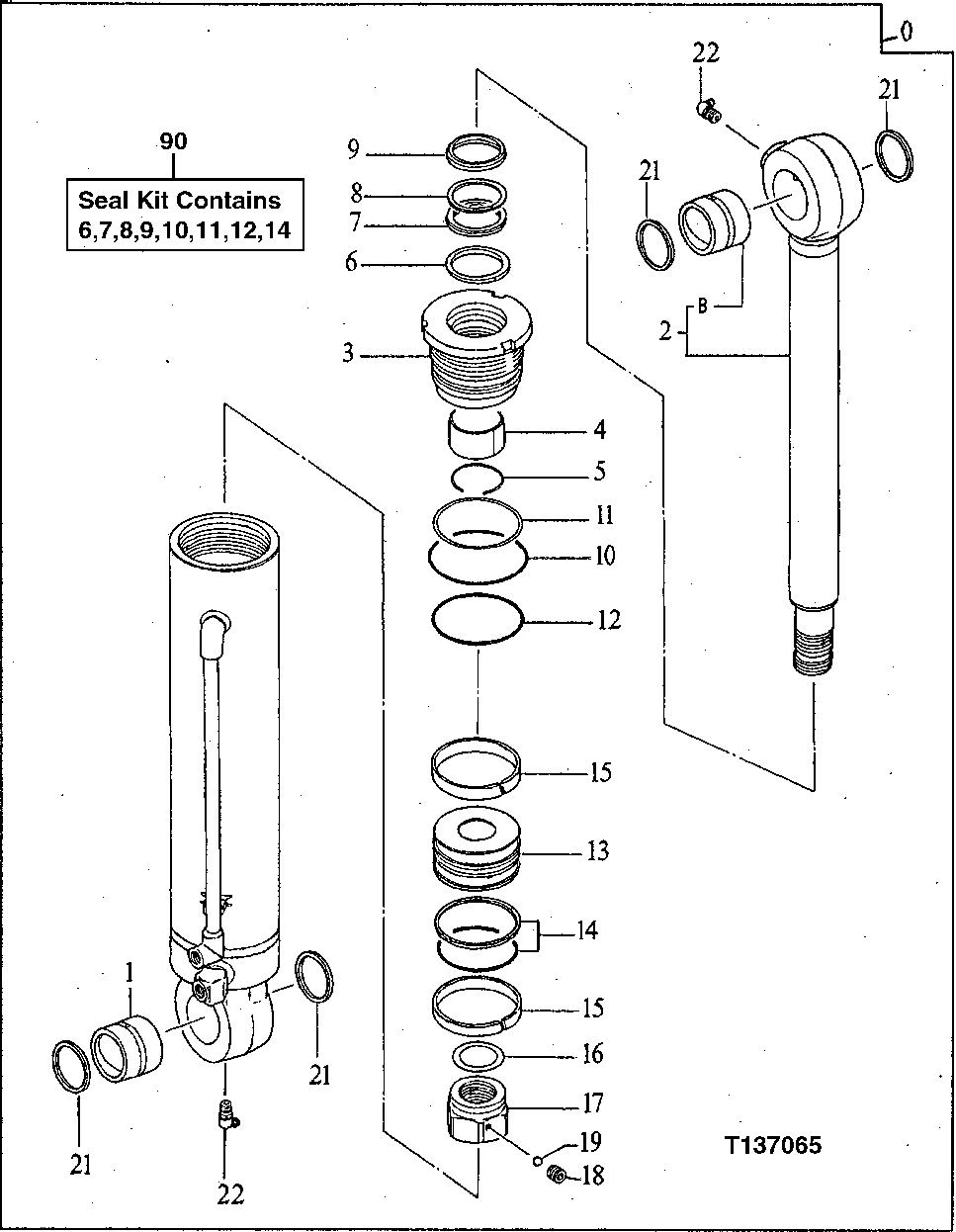

Запчасти John Deere 90E 213 - OFFSET BOOM CYLINDER 3360 HYDRAULIC SYSTEM

0

4290916

Cylinder

(SUB FOR AT200507)

1шт.

1

4265483

Bushing

55 X 65 X 55 mm (2.165" X 2.55 9" X 2.165") (SUB FOR AT137407)

1шт.

2

4318961

Rod

(SUB FOR AT200572)

1шт.

2B

4265483

Bushing

55 X 65 X 55 mm (2.165" X 2.55 9" X 2.165") (SUB FOR AT137407)

1шт.

3

0487001

Cylinder

(SUB FOR AT200341)

1шт.

4

0444706

Bushing

60.060 X 65 X 35 mm (2.365" X 2. 559" X 1.378") (SUB FOR AT200277)

1шт.

5

0225704

Snap Ring

(SUB FOR TH105772)

1шт.

6

AT264380

Ring

(A) (SUB FOR TH105780)

1шт.

7

AT264378

Ring

(A) (SUB FOR TH105778)

1шт.

8

AT264379

Back-Up Ring

(A) (SUB FOR TH105779)

1шт.

9

AT264377

Ring

(A) (SUB FOR TH105777)

1шт.

10

AT264319

O-Ring

(A) 99.400 X 3.100 mm (3.913 " X 0.122") (SUB FOR T110447)

1шт.

11

TH109318

Back-Up Ring

(A)

1шт.

12

A810105

O-Ring

(A) (SUB FOR U46158)

1шт.

13

0487002

Piston

(SUB FOR AT200342)

1шт.

14

AT264387

Ring

(A) (SUB FOR TH109322)

1шт.

15

AT264233

Ring

(SUB FOR 0333209, AT130561)

2шт.

16

0333008

Shim

(SUB FOR AT130548)

1шт.

17

0310611

Nut

(SUB FOR TH109379)

1шт.

18

22M7139

Set Screw

M10 X 10

1шт.

19

400R

Ball

6.350 mm (1/4")

1шт.

21

4117954

Seal

(SUB FOR AT200268 AND 0444609)

4шт.

22

JD7781

Lubrication Fitting

(SUB FOR TH105707)

2шт.

90

4369817

Electrical Connector Assy

(INCLUDES PARTS MARKED (A)) (SUB FOR AT200573)

1шт.
