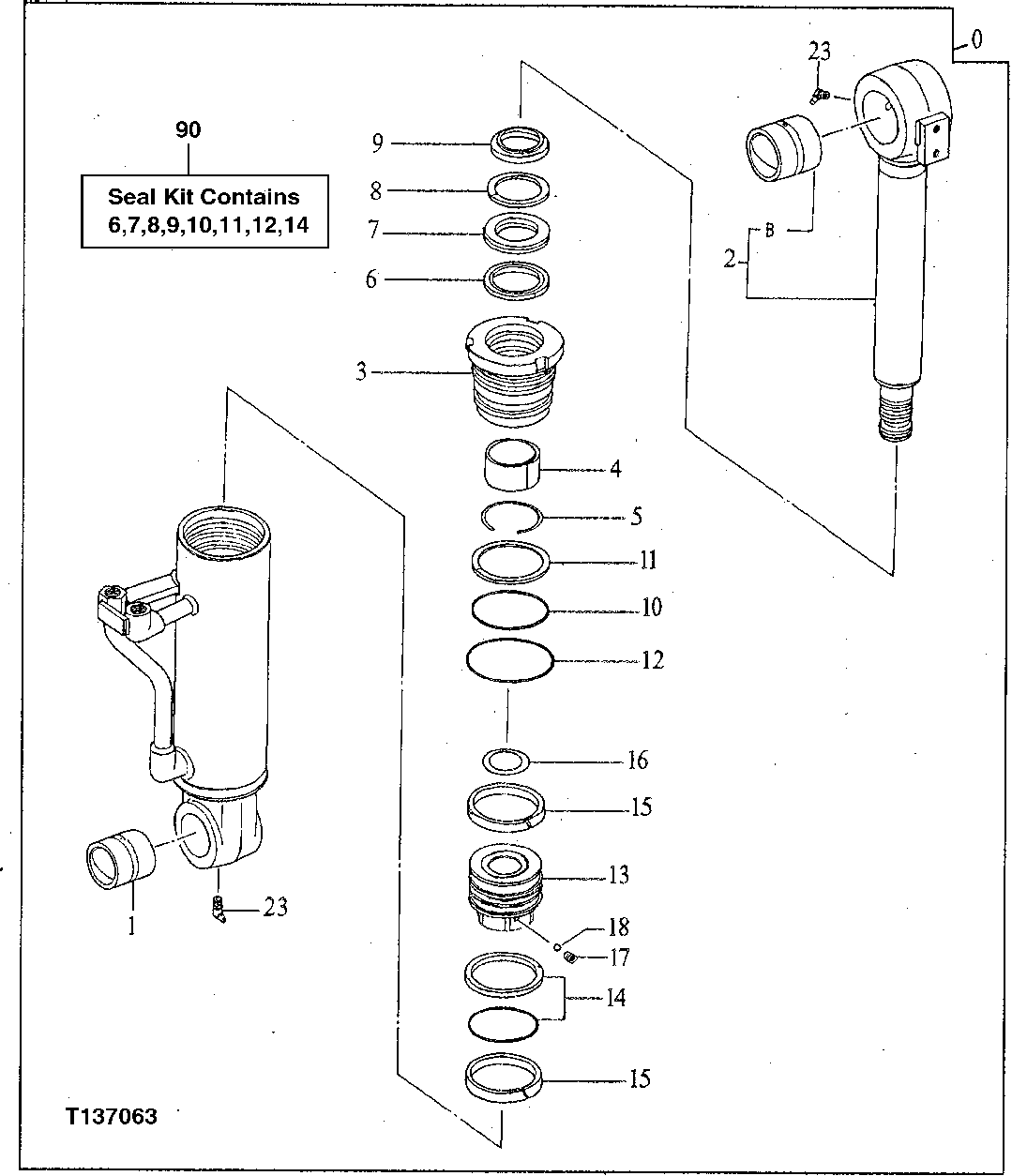

Запчасти John Deere 90E 212 - Blade Cylinder ( - 010332) 3360 HYDRAULIC SYSTEM

0

4285523

Cylinder

(SUB FOR AT200491)

1шт.

1

0396302

Bushing

(SUB FOR AT200198)

1шт.

2

0487102

Rod

(SUB FOR AT200344)

1шт.

2B

0396304

Bushing

(SUB FOR AT200199)

1шт.

3

0396305

Cylinder

(SUB FOR AT200200)

1шт.

4

0681902

Bushing

(SUB FOR AT200399 AND 4058987)

1шт.

5

0249905

Ring

(SUB FOR AT200146)

1шт.

6

0370107

Ring

(A) (SUB FOR AT200153)

1шт.

7

0249906

Packing

(A) (SUB FOR AT200147)

1шт.

8

0249907

Back-Up Ring

(A) (SUB FOR AT200148)

1шт.

9

0487103

Ring

(A) (SUB FOR AT200150)

1шт.

10

4098435

O-Ring

(A) 70.700 X 5.700 mm (2.783 " X 0.224") (SUB FOR AT200401)

1шт.

11

4075674

Back-Up Ring

(A) (SUB FOR AT200400)

1шт.

12

CH11573

Packing

(A)

1шт.

13

0396307

Piston

(SUB FOR AT200202)

1шт.

14

0380915

Ring

(A) (SUB FOR AT200157)

1шт.

15

0380914

Ring

(SUB FOR AT200156)

2шт.

16

0396306

Shim

(SUB FOR AT200201)

1шт.

17

22M7080

Set Screw

M8 X 8

1шт.

18

0370110

Ball

(SUB FOR AT200154)

1шт.

23

T116334

Lubrication Fitting

2шт.

90

4369773

Seal Kit

(INCLUDES PARTS MARKED (A)) (SUB FOR AT200574)

1шт.
