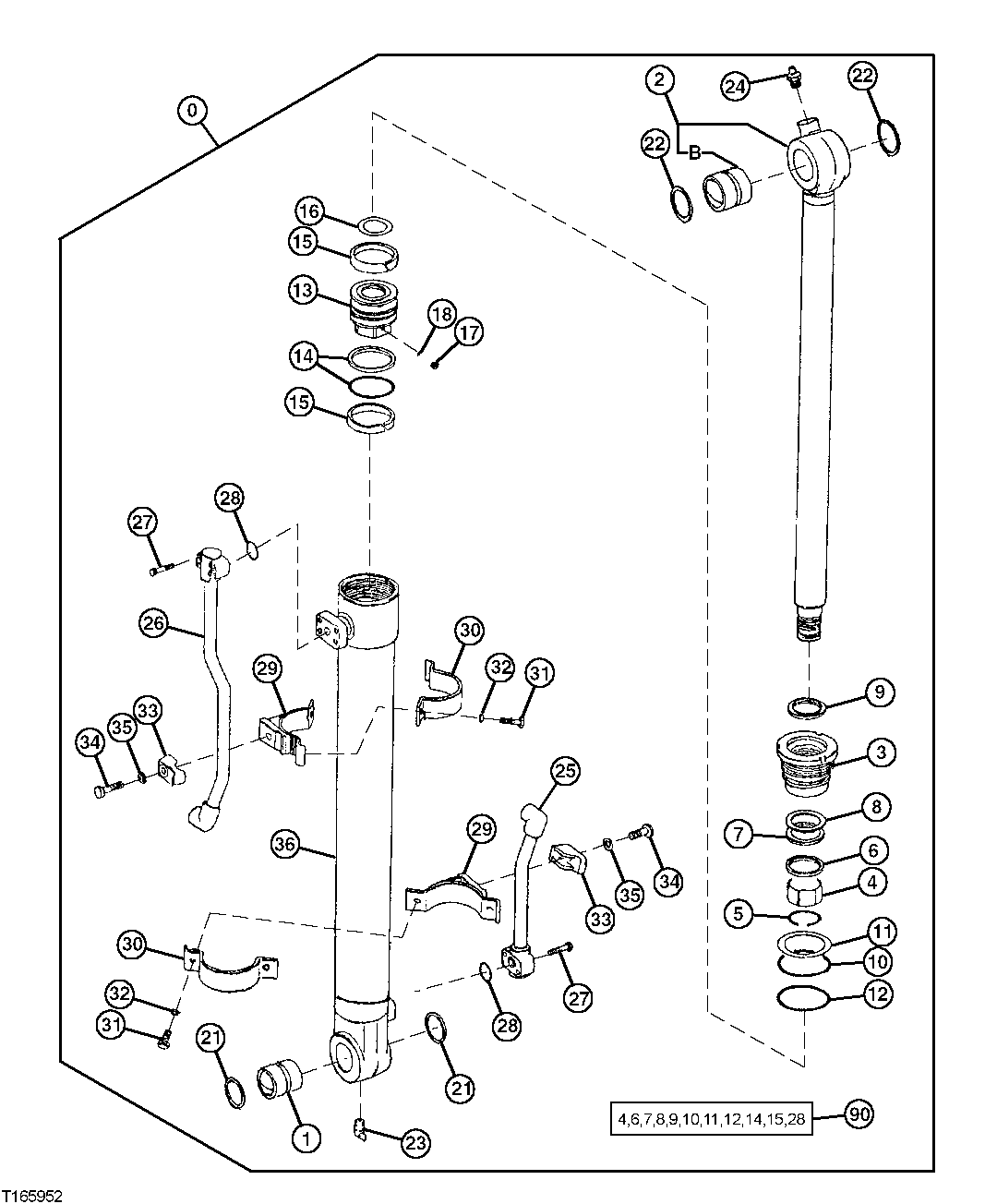

Запчасти John Deere 90E 211 - Bucket Cylinder 3360 HYDRAULIC SYSTEM

0

4272845

Hydraulic Cylinder

(SUB FOR AT200454 OR AT182460)

1шт.

1

0453503

Bushing

(SUB FOR AT200288)

1шт.

2

0453504

Rod

(SUB FOR AT200289)

1шт.

2B

0396102

Bushing

(SUB FOR AT200195)

1шт.

3

0453506

Hydr. Cylinder Rod Guide

(SUB FOR AT200291)

1шт.

4

AT264284

Bushing

(SUB FOR AT200292, 0453507)

1шт.

5

0225804

Snap Ring

(SUB FOR TH105785)

1шт.

6

AT264384

Ring

(SUB FOR TH105792, 0225812)

1шт.

7

AT264382

Seal

(SUB FOR TH105790, 0225810)

1шт.

8

AT264383

Back-Up Ring

(SUB FOR TH105791, 0225811)

1шт.

9

AT264381

Seal

(SUB FOR TH105789, 0453517)

1шт.

10

CH17160

Packing

1шт.

11

AT264285

Sealing Ring

(SUB FOR AT200293, 0453508)

1шт.

12

AT264419

O-Ring

(SUB FOR U46456, A810085)

1шт.

13

0453509

Piston

(SUB FOR AT200294)

1шт.

14

AT264286

Ring

(SUB FOR AT200295, 0453510)

1шт.

15

AT264287

Ring

(SUB FOR AT200296, 0453511, 4S00150)

2шт.

16

0380707

Shim

(SUB FOR AT200155)

1шт.

17

22M7139

Set Screw

M10 X 10

1шт.

18

400R

Ball

6.350 mm (1/4")

1шт.

21

0453512

Seal

(SUB FOR AT200297)

2шт.

22

4117954

Seal

(SUB FOR AT200268 AND 0444609)

2шт.

23

JD7781

Lubrication Fitting

(SUB FOR TH105707)

1шт.

24

TH100074

Lubrication Fitting

1шт.

25

4S00497

Oil Line

(SUB FOR AT200298, 0453513, 4S00345)

1шт.

26

4S00346

Line

(SUB FOR AT200299)

1шт.

27

19M8439

Screw

M8 X 25

8шт.

28

O-Ring

(SUB FOR TH103574, 4509181 ) (SUB 0976602)( AT264354 NSEP)

2шт.

29

0453515

Clamp

(SUB FOR AT200300)

2шт.

30

0453516

Clamp

(SUB FOR AT200301)

2шт.

31

19M7550

Cap Screw

M10 X 35 (SUB FOR AT153924)

4шт.

32

12M7066

Lock Washer

10 mm

4шт.

33

0310616

Clamp

(SUB FOR TH109386)

2шт.

34

19M7496

Cap Screw

M12 X 45

2шт.

35

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

36

0453501

Tube

HYDRAULIC CYLINDER (SUB FOR AT200286)

1шт.

90

Seal Kit

(SUB FOR AT200550, 4306446)( AT264436 NLA)

1шт.

91

4369716

Seal Kit

(INCLUDES AT264384, AT264382, AT26 4383, AT264381, CH17160, AT264285, AT264419, AT264286)(NOT ILLUSTRATED )

1шт.
