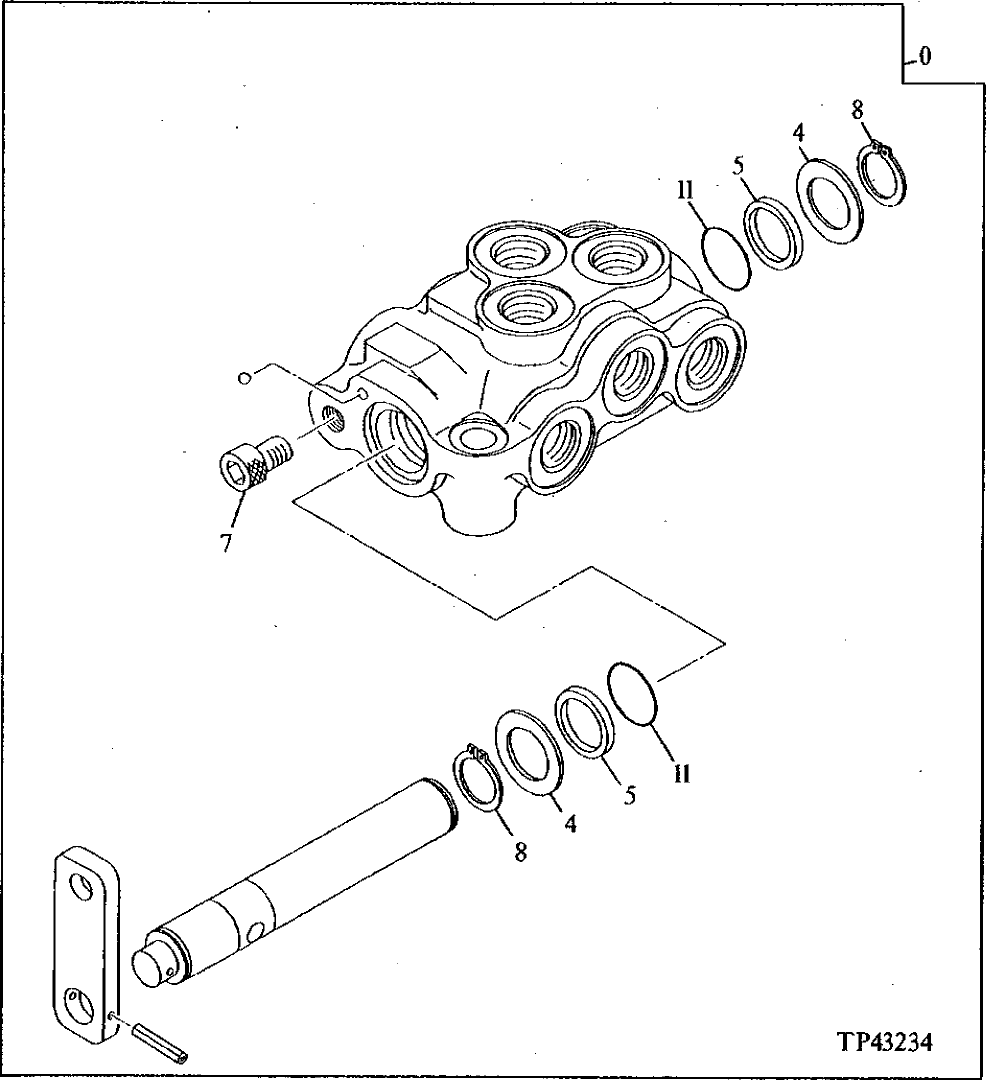

Запчасти John Deere 90E 207 - Lock Valve 3360 HYDRAULIC SYSTEM

0

4254611

Flow Control Hyd. Valve

(SUB FOR AT154216)

1шт.

4

0396603

Washer

18.200 X 27 X 1.600 mm (0.717" X 1 -1/16" X 1/16") (SUB FOR AT153842)

2шт.

5

0309904

Back-Up Ring

18.100 X 22 X 2.700 mm (0.713" X 0 .866" X 0.106") (SUB FOR TH109299)

2шт.

7

0396604

Bolt

(SUB FOR AT153843)

1шт.

8

40M1824

Snap Ring

(SUB FOR AT153844 ) (SUB FOR 0396605)

2шт.

11

CH14634

O-Ring

17.800 X 2.400 mm (0.701" X 3/32")

2шт.
