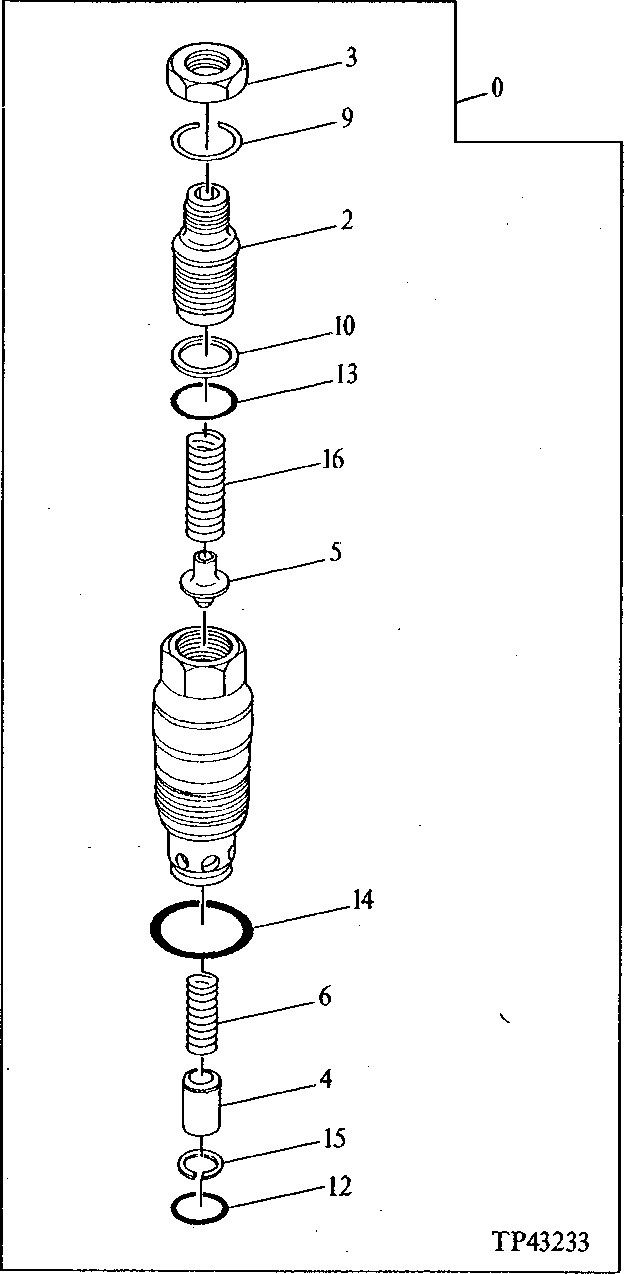

Запчасти John Deere 90E 206 - Relief Valve 3360 HYDRAULIC SYSTEM

0

4307376

Pressure Relief Valve

(SUB FOR AT200556)

1шт.

2

0444502

Screw

(SUB FOR AT200250)

1шт.

3

AT200152

Nut

(SUB FOR 0322707)

1шт.

4

Spool

( AT200251 OR 0444503 NO L ONGER AVAILABLE FOR SERVICE)

1шт.

5

Poppet

( AT200252 OR 0444504 NO L ONGER AVAILABLE FOR SERVICE)

1шт.

6

Spring

( AT200253 OR 0444505 NO L ONGER AVAILABLE FOR SERVICE)

1шт.

9

0444506

Spring

(SUB FOR AT200254)

1шт.

10

0444507

Back-Up Ring

14 X 16.500 X 0.500 mm (0.551" X 0 .650" X 0.020") (SUB FOR AT200255)

1шт.

12

0444508

O-Ring

13 X 1 mm (0.512" X 0.0 39") (SUB FOR AT200256)

1шт.

13

R76617

O-Ring

12.421 X 1.778 mm (0.489" X 0.070") (SUB FOR AT200257)

1шт.

14

H63289

O-Ring

(SUB FOR AT200144 OR 0231221)

1шт.

15

0215711

Snap Ring

(SUB FOR AT200258 ) (SUB FOR TH101566)

1шт.

16

Spring

( AT200259 OR 0444511 NO L ONGER AVAILABLE FOR SERVICE)

1шт.
