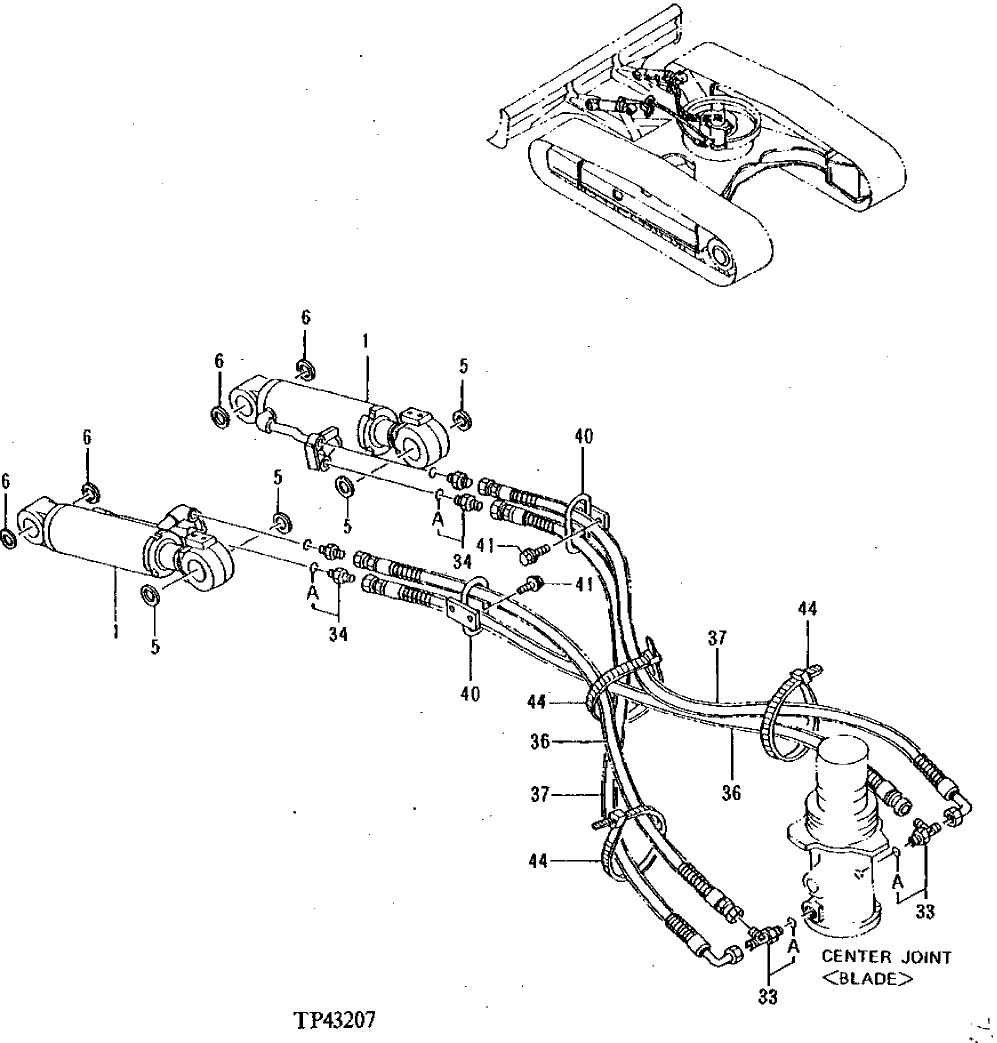

Запчасти John Deere 90E 201 - Blade Pipings (Undercarriage) ( - 010332) 3360 HYDRAULIC SYSTEM

1

4285523

Cylinder

(SUB FOR AT200491)(BLADE)

2шт.

5

4246939

Seal

(SUB FOR AT200418)

4шт.

6

4473086

Seal

(SUB FOR AT200416, 4244703 OR 4279530)

4шт.

33

4205363

Tee Fitting

(SUB FOR AT126362)

2шт.

33A

CH11570

O-Ring

1шт.

34

4276539

Adapter Fitting

(SUB FOR AT200473)

4шт.

34A

CH11570

O-Ring

1шт.

36

AT200741

Hydraulic Hose

9/16" X 1100 mm (43-1/4") X 9/16"

2шт.

37

AT200742

Hydraulic Hose

9/16" X 1150 mm (45-1/4") X 9/16"

2шт.

40

9731919

Bracket

(SUB FOR AT200711)

2шт.

41

19M8017

Cap Screw

M12 X 20 (SUB FOR AT200005 OR J011220 USE ALONG WITH 12M7067)

4шт.

12M7067

Lock Washer

12 mm

4шт.

44

H77698

Tie Band

3шт.
